Solid-Liquid Separation Solution for a Danish Water Treatment Consultant
A Danish client specializing in environmental solutions, with a strong focus on industrial water treatment. The client approached us with a specific separation challenge: they needed a compact, efficient system to remove sand and sludge from washing water, with very limited installation space and demanding filtration requirements.
Initial Requirement & Challenge
The client needed a solid-liquid separation system for a specific application with the following parameters:
- Equipment: Compact vibrating screen (1 unit)
- Purpose: Separate sand and sludge from washing water.
- Flow Rate: Approx. 4 m³/h.
- Material: Stainless steel.
- Special Conditions: Must be easy to clean and capable of handling low water level conditions.
Recommended Solution – Phase 1: Vibrating Screen
Our initial recommendation was the Model 1200 Medium-Frequency Vibrating Screen, designed specifically for sand-water separation with a separation precision of 0.5 mm.
However, after detailed discussions, two critical modifications were requested:
- Higher Filtration Precision: The client required a 50-micron (0.05 mm) screen to filter out fine granite debris.
- Space Constraints: The available space, particularly height, was very limited. The client shared an ideal equipment concept.
Our Analysis & Revised Suggestion:

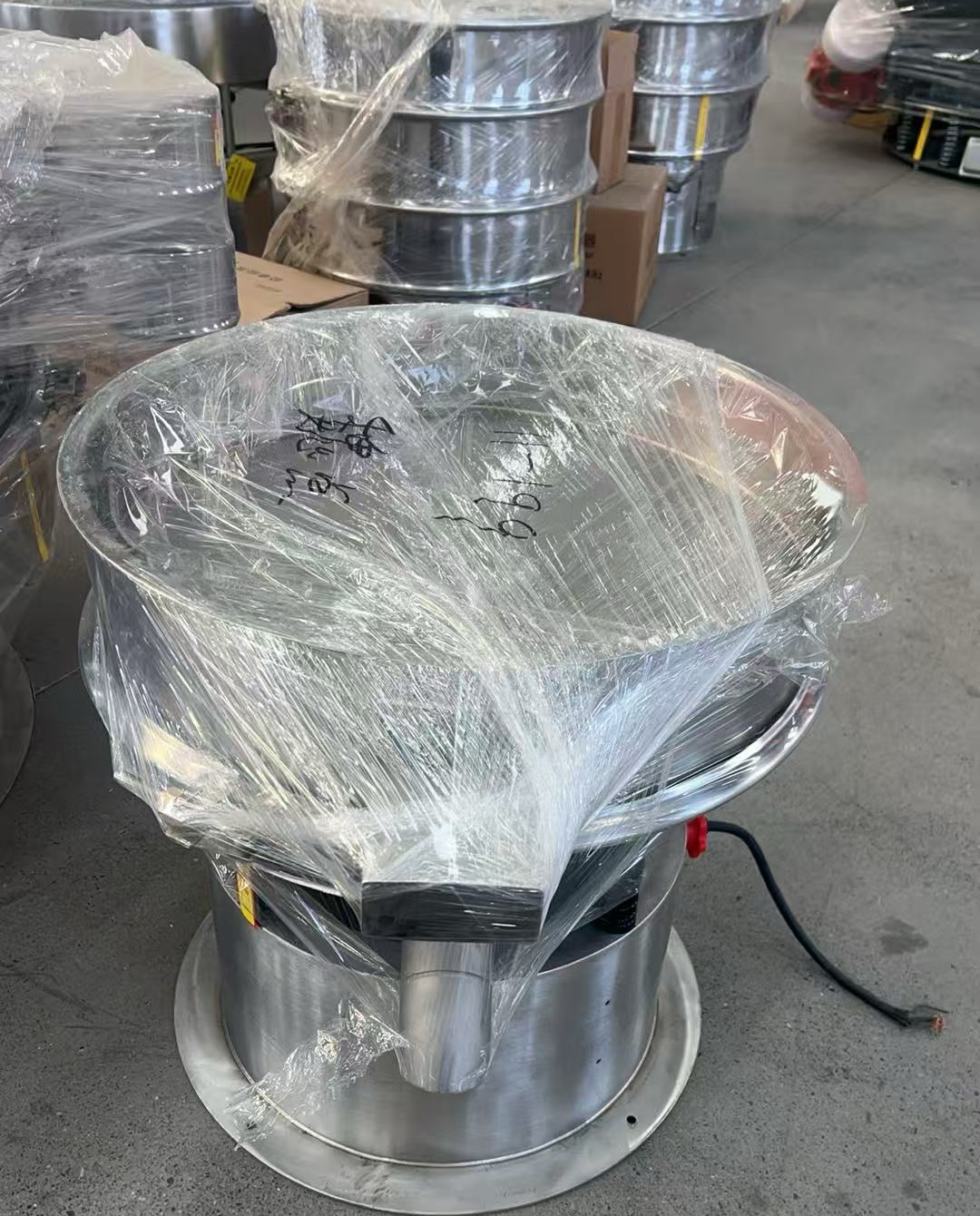

We noted that the client’s ideal concept resembled a straight-through vibrating screen, which is better suited for dry powder materials. To achieve the required 50-micron filtration precision, a medium-frequency or high-frequency vibrating screen is technically necessary. Therefore, we proposed the more compact Model 600 Medium-Frequency Vibrating Screen. While its capacity is approximately 2 m³/h, it is the smallest model that can meet the precision requirement and fit the limited height.
Evolving Requirement & Phase 2: Alternative Solution
Due to the strict height limitations and the need for fine filtration, the client also requested consideration of a Self-Cleaning Filter (Brush Type) as an alternative, with these specifications:
- Flow Rate: 2-4 m³/h
- Inlet Pressure: 10-15 hm (likely meters of water column)
- Outlet Pressure: Open discharge
- Filtration Precision: 50 microns
- Footprint: As small as possible, with installation flexibility (both vertical and horizontal mounting preferred).
Our Recommended Alternative:

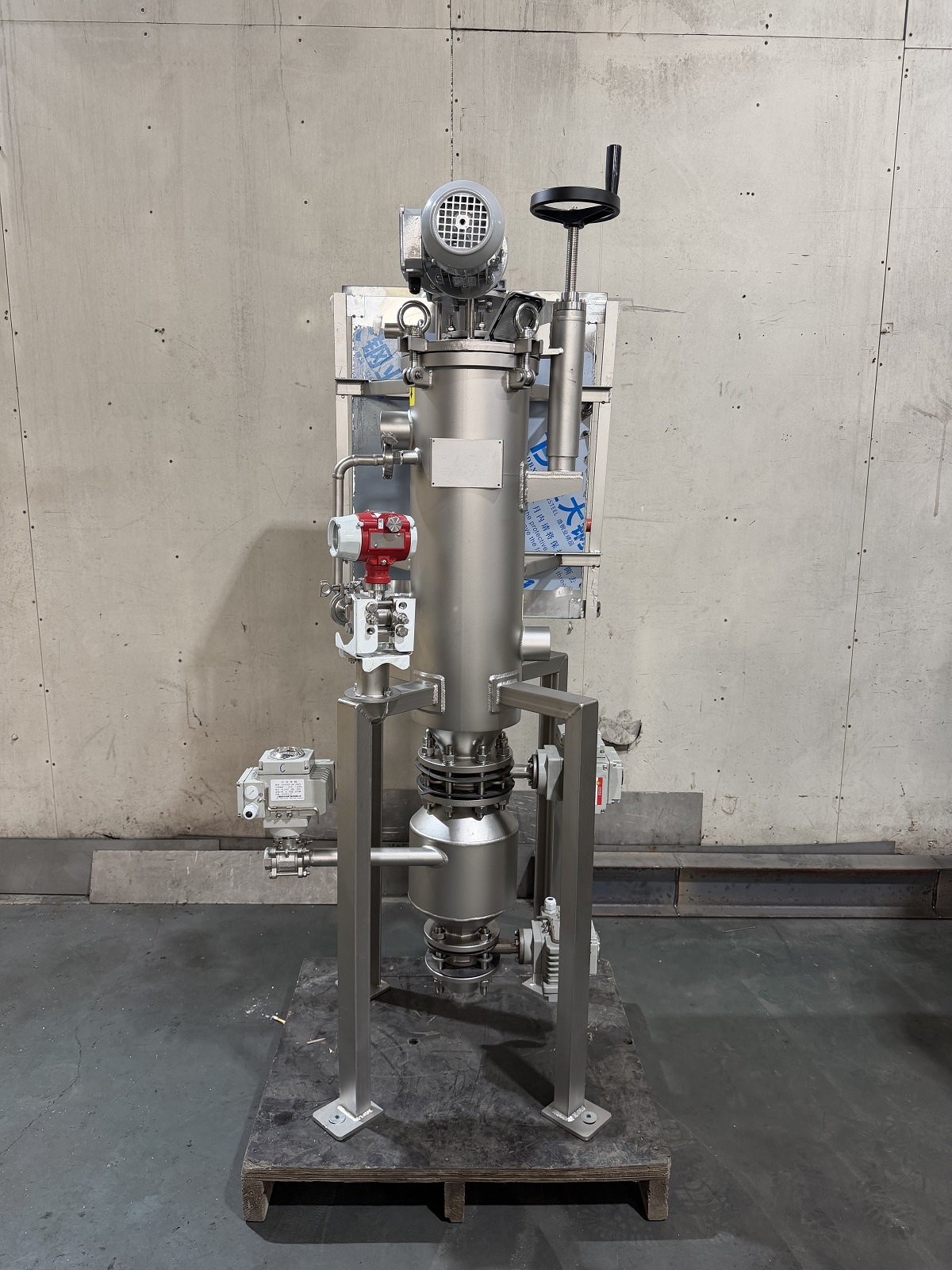

We verified that the solid-to-liquid ratio in the client's water was just 0.25%, well within the maximum of 2% for the self-cleaning filter to operate effectively. We therefore recommended our smallest unit, the Model 219 Self-Cleaning Filter, which meets all the specified criteria.
This case highlights our commitment to understanding not just the immediate need, but the broader operational context. We are not merely a supplier, but a problem-solving partner.
We are proud to maintain a close working relationship with this client and are now actively involved in their new water treatment projects, providing ongoing technical support and equipment solutions.
