Self-Cleaning Filtration Solution for Waterborne Paint

Background

Our client, a U.S.-based company specializing in construction and renovation, generates a significant amount of recoverable paint during their daily coating operations. This recovered material — which settles at the bottom of the coating system — contains various contaminants of small to medium size, including dried paint flakes, wood chips, sawdust, and other debris.

The Challenge

The client had been using a bag filtration system to process this recovered paint. However, the operation proved to be labor-intensive and inefficient. The filter bags required frequent replacement and cleaning, which not only consumed valuable man-hours but also disrupted workflow and increased operational costs. Clearly, a more automated and low-maintenance solution was needed.

Our Recommended Solution

After a thorough assessment of the client's process conditions and filtration requirements, we proposed the Model 325 Scraper Self-Cleaning Filter, specifically designed for paint and coating applications.

Key specifications include:

| Parameter | Detail |
| --------- | ------ |
| Flow Rate | 15 GPM (ideal processing capacity) |
| Material | SS316L stainless steel (excellent corrosion resistance) |
| Filtration Precision | 100 microns (with an additional 150-micron screen as backup) |

Why This Solution

The key differentiator of this unit is its built-in scraper mechanism, which continuously removes accumulated solids from the screen surface. For paint-based slurries and sticky residues, this self-cleaning action is far more effective than traditional bag filters or back-flushing systems. It ensures consistent throughput, reduces downtime, and extends the service life of the filtration media.

Project Status

The project is progressing smoothly. The equipment has been successfully manufactured, inspected, and is now ready for final review. Below are the actual photos and a video clip showing the finished unit, including detailed views of the scraper assembly, screen housing, and overall build quality.
Figure 1: Model 325 Scraper Self-Cleaning Filter

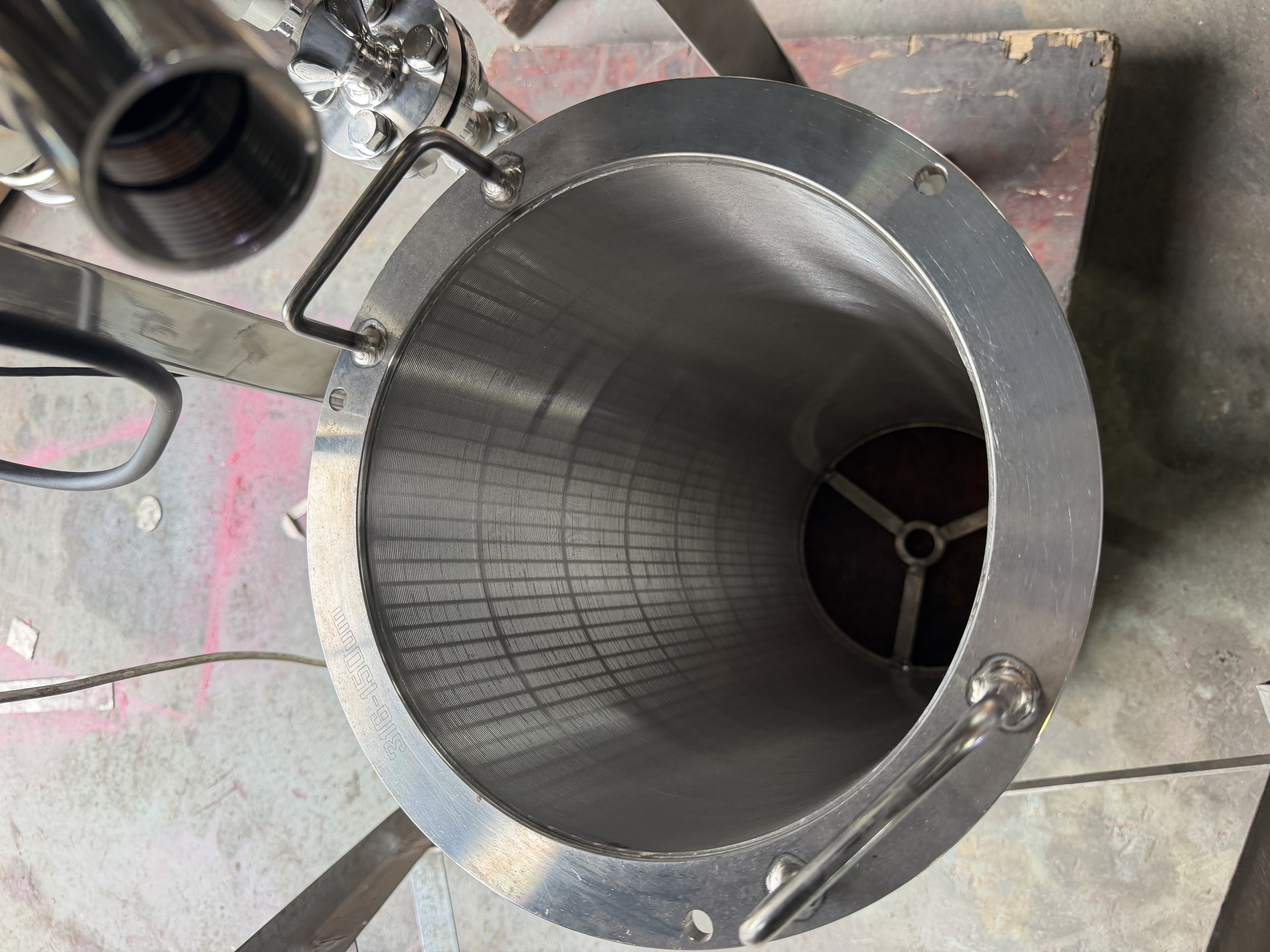

Figure 2: Spare Screen
