Comprehensive Filtration & Dewatering Solution for a Canadian Mining Project

Project Overview

We are pleased to share the successful completion of a mining project for our valued client in Canada. The client was involved in a large-scale mining operation requiring a complete set of solid-liquid separation and dewatering equipment. With clearly defined specifications provided by the client – including capacity, separation accuracy, solid content, and particle size requirements – we were able to quickly identify and match the appropriate equipment models for each stage of the process.
Thanks to the clear and detailed data provided by the client, the entire selection and ordering process was smooth and efficient. The project has now been successfully delivered, and we are excited to showcase the equipment that made it all possible.

Equipment Supplied

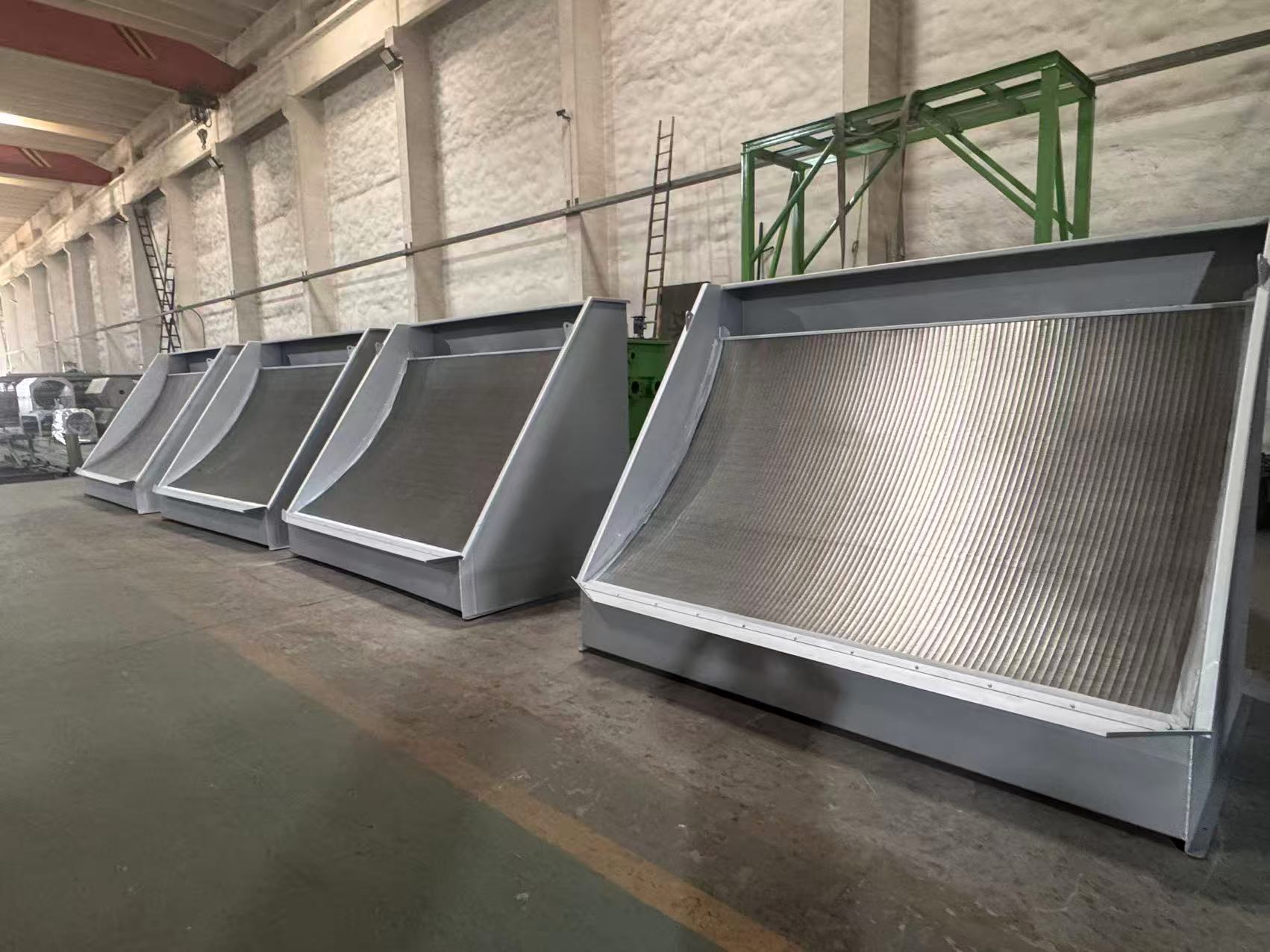

1. DSM Screen

• Width: 3 meters
• Separation Accuracy: 2 mm / 150 microns
• Capacity: 65 m³/h

The DSM screen was selected for its high-capacity screening performance. With a width of 3 meters and adjustable separation down to 150 microns, this unit effectively handles the client's feed material with reliable efficiency.
📷 🎥

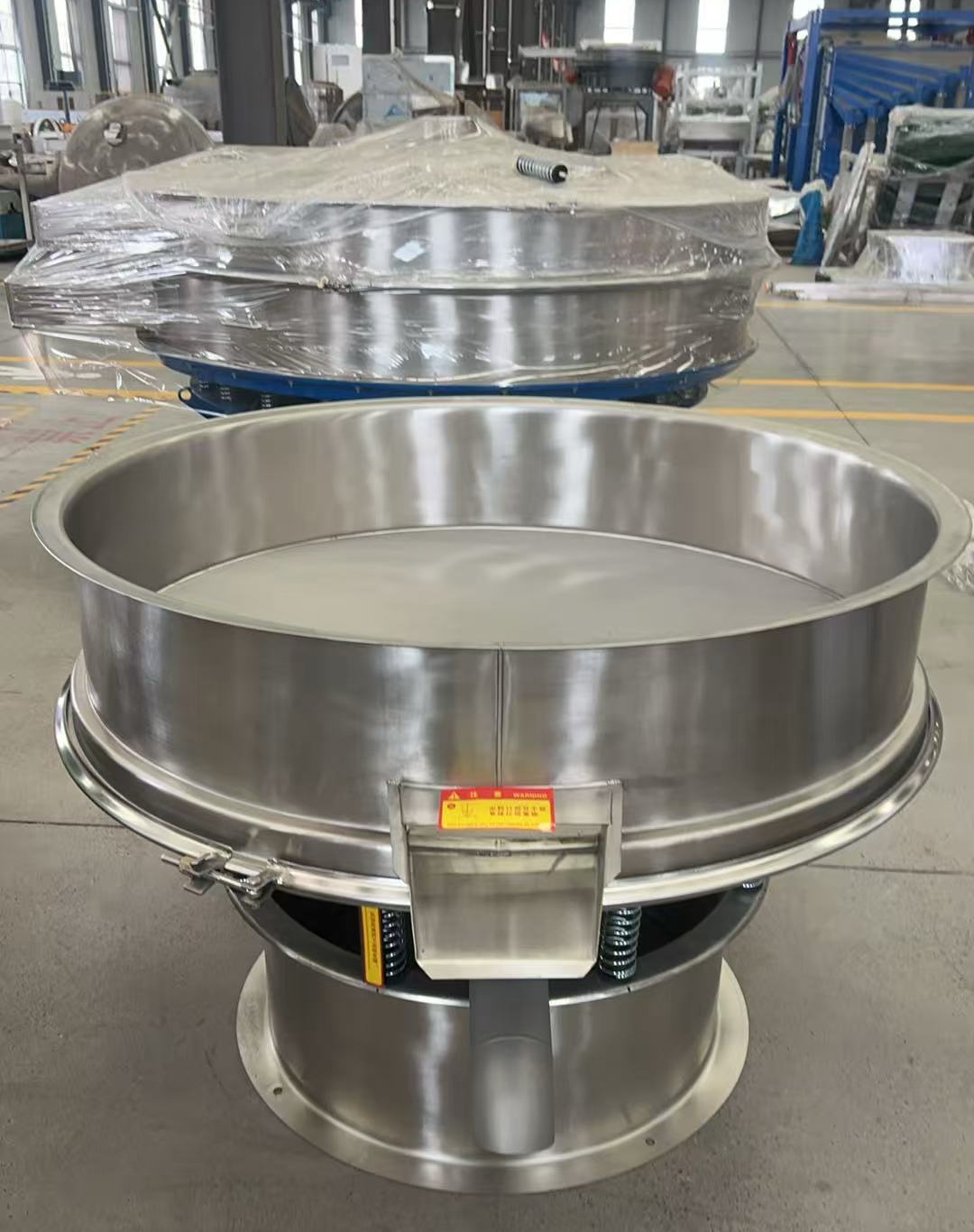

2. Vibrating Screen

• Capacity: 2.3 tons/hour
• Particle Size: 100 mesh
• Application: Dewatering of 100% pure mica concentrate

This vibrating screen was specifically chosen for the dewatering of high-purity mica concentrate. Operating at a feed rate of 2.3 tons/hour and processing material at 100 mesh, the unit delivers exceptional dewatering performance while maintaining product integrity.
📷 🎥

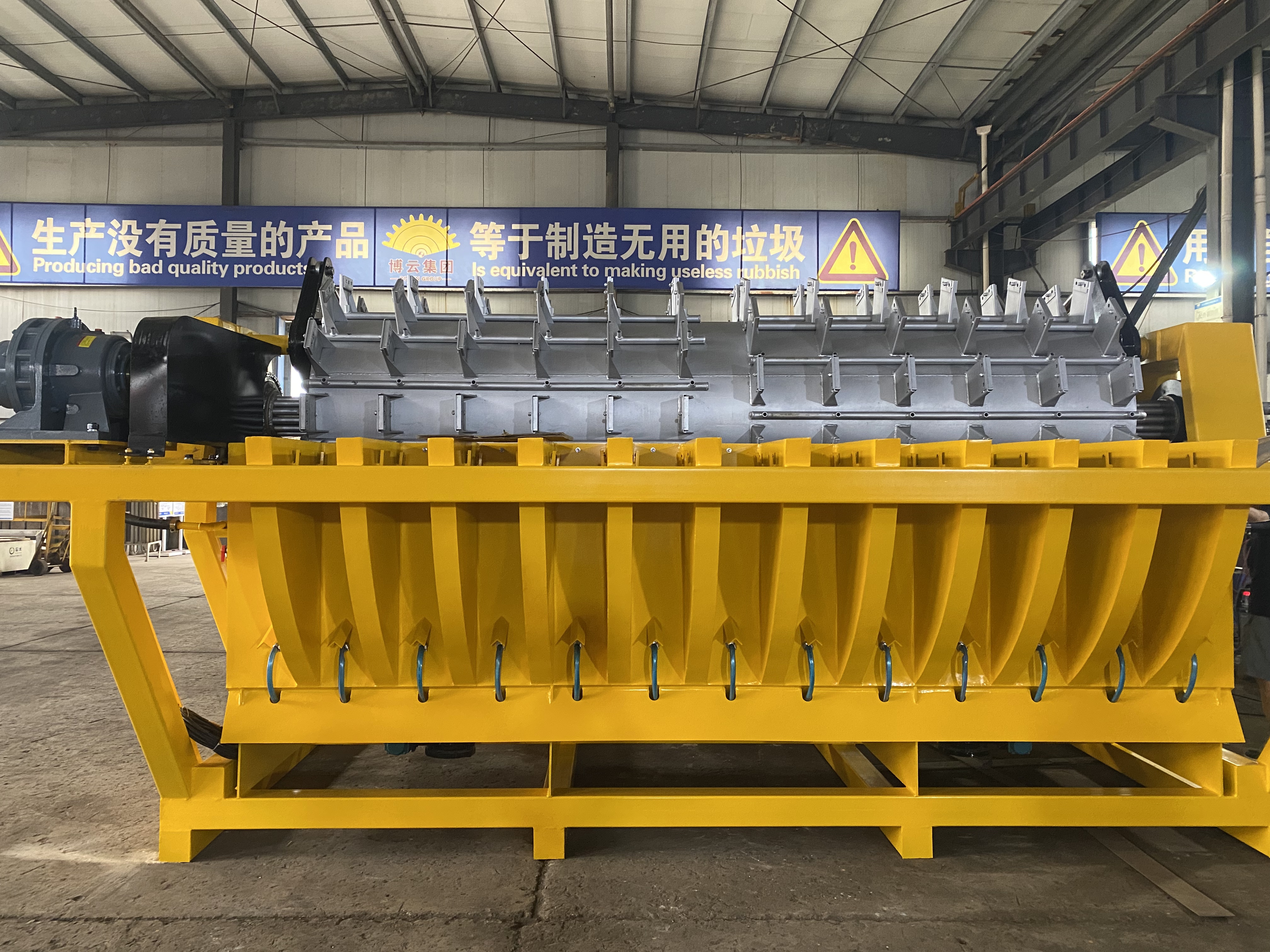

3. Disc Filter

• Flow Rates: 5 m³/h and 46 m³/h (dual configurations)
• Feed Solid Content: 56%

Our disc filters were supplied to handle slurry dewatering at two different flow capacities. With a solid content of 56% in the feed, these filters provide excellent filtration efficiency and cake formation, making them ideal for the client's mineral processing circuit.
📷 🎥

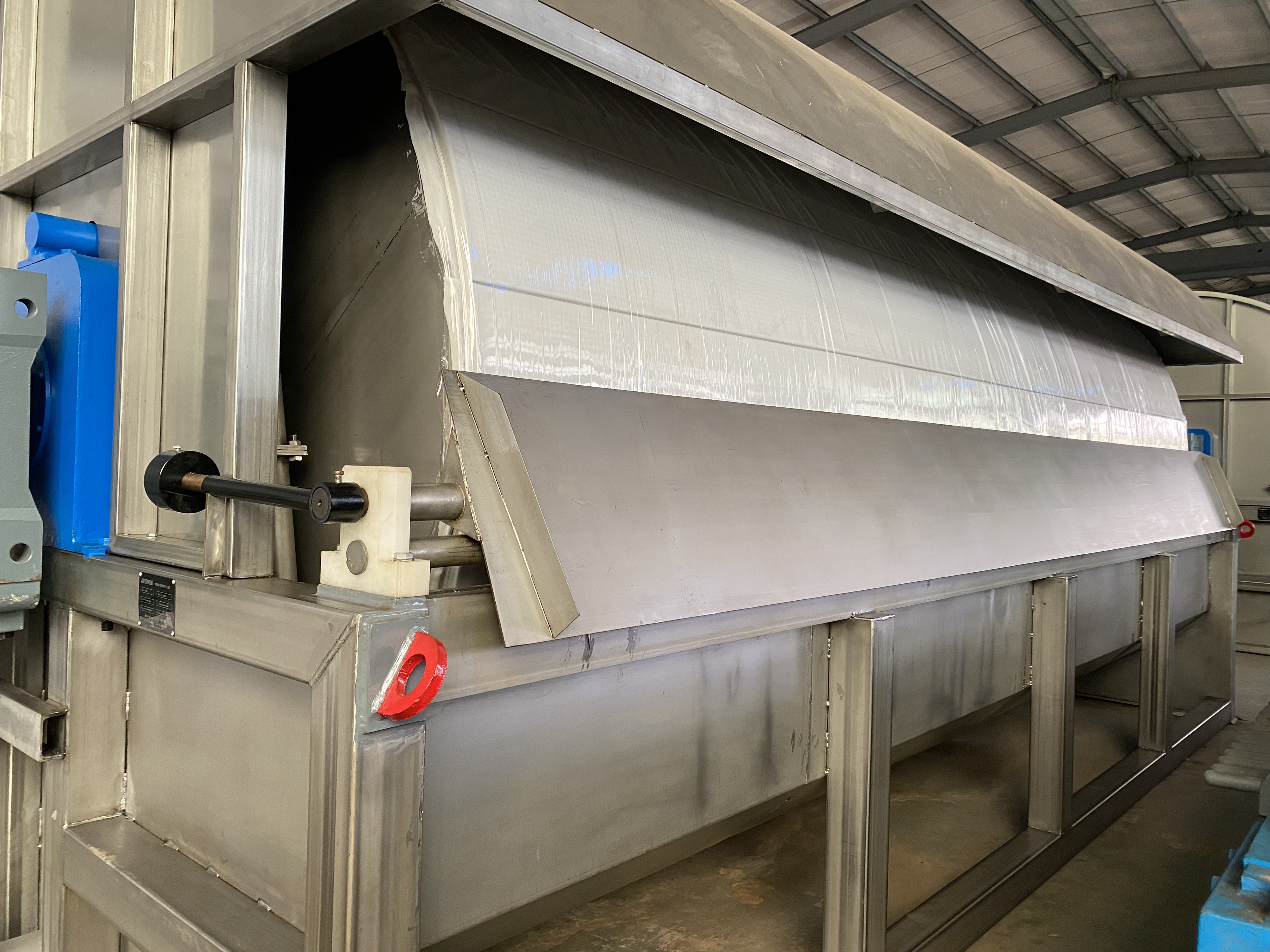

4. Vacuum Drum Filter

• Capacity: 21 tons/hour
• Feed Solid Content: 55%
• Particle Size: 50 microns

The vacuum drum filter was delivered to handle a higher throughput of 21 tons/hour, processing material with a solid content of 55% and a fine particle size of 50 microns. This unit plays a critical role in the overall dewatering circuit, ensuring optimal moisture reduction and solids recovery.
📷 🎥

Project Highlights

• Fast Response: With clear technical data from the client, we were able to confirm model selections promptly without unnecessary delays.
• Customized Solutions: Each piece of equipment was matched precisely to the client's process requirements.
• Full Delivery: All equipment has been successfully delivered and is now in operation at the client's site in Canada.
