SS304-600-1S-Vibrating Screen Machine
Basic Information
Model
JX-RVS-600-1-SS304
Unit
set
Category
Vibrating Screen Machine
Delivery Time
30 Days
Package Size
1200x1200x850 mm
Package Weight
120 KG

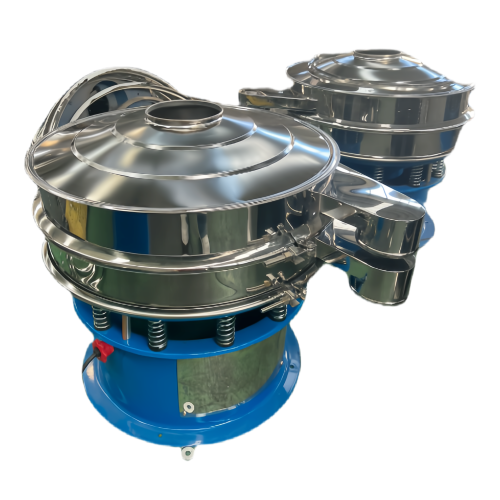

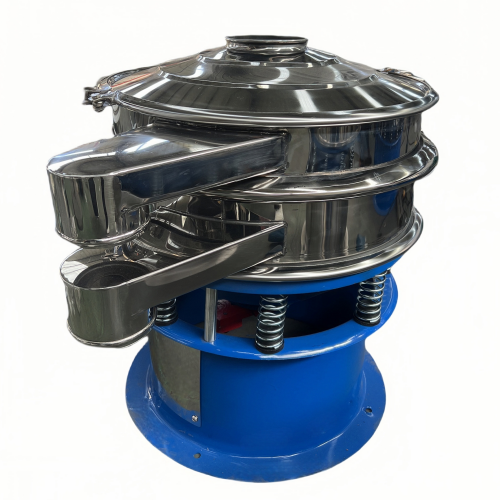

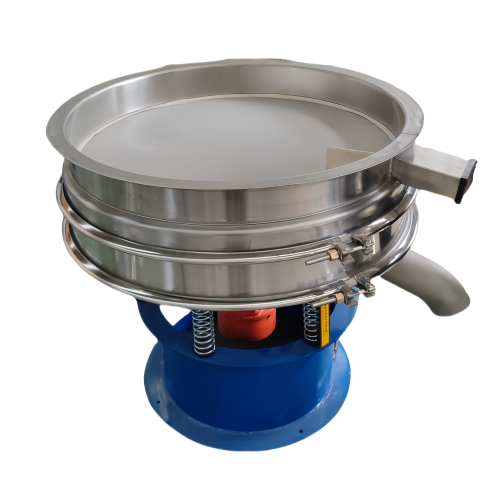

Product Images
Technical Specifications
General Paraneters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-RVS-600-1 | — | — |
| Material | SS304 | — | — |
| Production Capacity | Customizable | — | — |
| Screening Material | client requirement | — | — |
| Dynamic Load | 1000 | N | — |
| Static Load | 3400 | N | — |
| Excitation Force | 5 | KN | — |
| Double Amplitude | 3-8 | mm | — |
| Dimensions (L*W*H) | ~990*990*730 | mm | — |
| Total Weight | ~120 | kg | — |
Screen urface Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screen Diameter | Ф600 | — | — |
| Number of Screen Layers | 1 | — | — |
| Screening Area | 0.283 | m2 | — |
| Screen Mesh Specification | Customized by Customer | — | — |
| Screen Mesh Structure | Woven | — | — |
Drive Parts
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | YZUL5-4 | — | — |
| Power | 0.55 | KW | — |
| Speed | 1500 | rpm | — |
| Motor | 3-phase/380V/50HZ | — | — |
Component Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Top Cover | Stainless steel 304 | mm | Thickness: 1.2mm 、Mirror polishing |
| Upper Frame | Stainless steel 304 | mm | Thickness: 1.2mm 、Mirror polishing |
| Lower Frame | Stainless steel 304 | mm | Thickness: 1.2mm 、Mirror polishing |
| L-shaped Mesh Frame | Stainless steel 304 | — | — |
| Bearing | Stainless steel 304 | — | — |
| Vibration Body | Stainless steel 304 | — | — |
| Base | Carbon steel Q235 | — | Thickness: 4.0mm Welded |
| Skirt | Stainless steel 304 | — | — |
| Spring | Galvanized iron spring | — | 8PCS |
| Sealing Ring | Silicone rubber | — | — |
| PU Ring (per layer) | Silicone rubber | — | — |
| Anti-blocking Mesh Bouncing Balls (per layer) | Silicone rubber | — | — |
