SS316-800-4S-Vibrating Screen Machine
Basic Information
Model
JX-RVS-800-4-SS316
Unit
set
Category
Vibrating Screen Machine
Delivery Time
30 Days
Package Size
1330x1330x1350 mm
Package Weight
290 KG

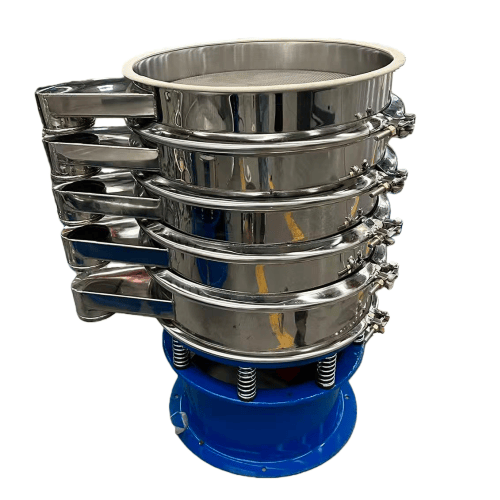

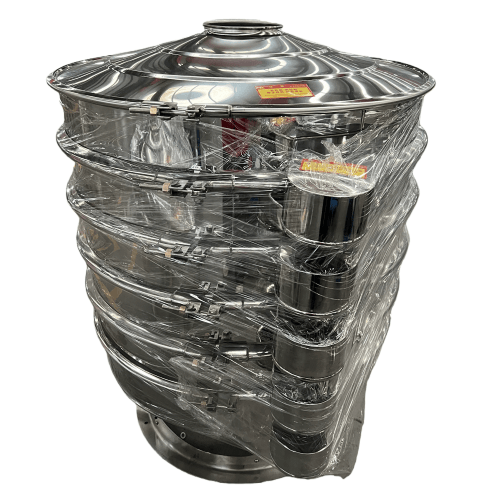

Product Images
Technical Specifications
General Paraneters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-RVS-800-4 | — | — |
| Material | SS316 | — | — |
| Production Capacity | Customizable | — | — |
| Screening Material | Customizable | — | — |
| Dynamic Load | 1000 | N | — |
| Static Load | 3400 | N | — |
| Excitation Force | 30 | KN | — |
| Double Amplitude | 3-8 | mm | — |
| Dimensions (L*W*H) | ~1230*1230*1240 | mm | — |
| Total Weight | ~270 | kg | — |
Screen urface Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screen Diameter | Ф800 | — | — |
| Number of Screen Layers | 4 | — | — |
| Screening Area | 0.44*4 | m2 | — |
| Screen Mesh Specification | Customized by Customer | — | — |
| Screen Mesh Structure | Woven | — | — |
Drive Parts
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | YZUL8-4 | — | — |
| Power | 0.75 | KW | — |
| Speed | 1500 | rpm | — |
| Motor | 380V 50HZ/Customized | — | — |
Component Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Top Cover | Stainless steel 316 | mm | 0.8mm |
| Upper Frame | Stainless steel 316 | mm | 2.0mm |
| Lower Frame | Stainless steel 316 | mm | 2.0mm |
| L-shaped Mesh Frame | Stainless steel 316 | — | — |
| Bearing | Stainless steel 316 | — | — |
| Vibration Body | Carbon steel Q235 | — | — |
| Base | Stainless steel 316 | — | — |
| Skirt | Stainless steel 316 | — | — |
| Spring | Galvanized iron spring | — | 12pcs |
| Sealing Ring | Silicone rubber | — | — |
| PU Ring (per layer) | 10 | — | — |
| Anti-blocking Mesh Bouncing Balls (per layer) | 20 | — | — |
