SS316-600-Vibrating Screen Machine
Basic Information
Model
JX-RVS-600-1S-SS316
Unit
set
Category
Vibrating Screen Machine
Delivery Time
30 Days
Package Size
700x700x800 mm
Package Weight
170 KG

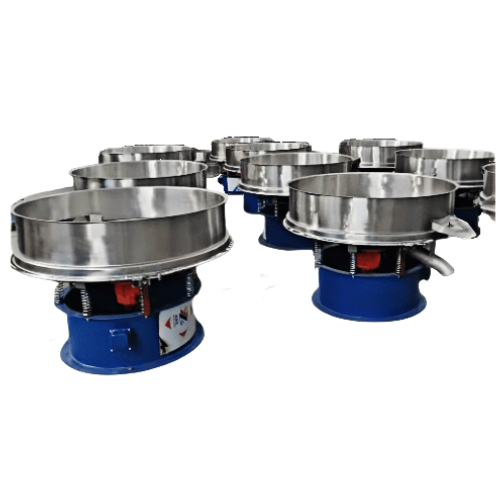

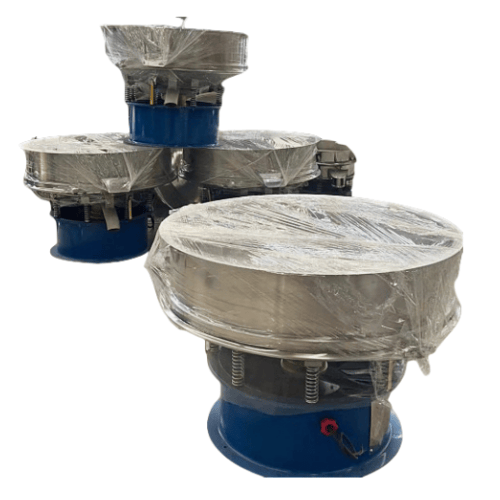

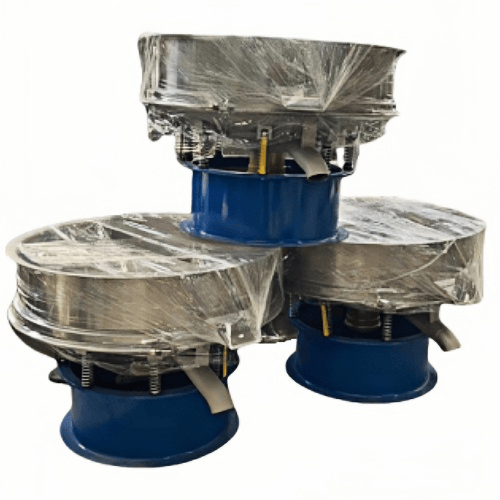

Product Images
Technical Specifications
General Paraneters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-RVS-600-1S | — | — |
| Material | SS316 | — | — |
| Production Capacity | Customizable | — | — |
| Screening Material | / | — | — |
| Dynamic Load | 1000 | N | — |
| Static Load | 3400 | N | — |
| Excitation Force | / | KN | — |
| Double Amplitude | / | mm | — |
| Dimensions (L*W*H) | See drawing | mm | — |
| Total Weight | ~140 | kg | — |
Screen urface Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screen Diameter | Ф600 | — | — |
| Number of Screen Layers | 1 | — | — |
| Screening Area | 0.24 | m2 | — |
| Screen Mesh Specification | Customized by Customer | — | — |
| Screen Mesh Structure | Woven | — | — |
Drive Parts
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | YZUL5-4 | — | — |
| Power | 0.55 | KW | — |
| Speed | 1500 | rpm | — |
| Motor | 3-phase/380V/50HZ | — | — |
Component Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Top Cover | SS316 | mm | — |
| Upper Frame | SS316 | mm | — |
| Lower Frame | SS316 | mm | — |
| L-shaped Mesh Frame | SS316 | — | — |
| Bearing | Zhejiang Tianma (Well-known Chinese Brand) | — | — |
| Vibration Body | SS316 | — | — |
| Base | Carbon steel Q235 | — | — |
| Skirt | SS316 | — | — |
| Spring | Galvanized iron spring | — | — |
| Sealing Ring | Silicone rubber | — | — |
| PU Ring (per layer) | / | — | — |
| Anti-blocking Mesh Bouncing Balls (per layer) | / | — | — |
