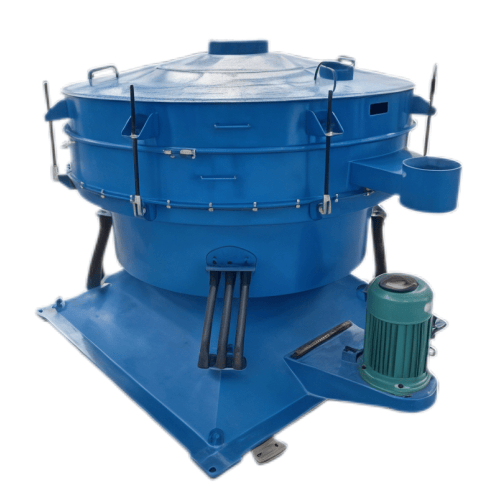

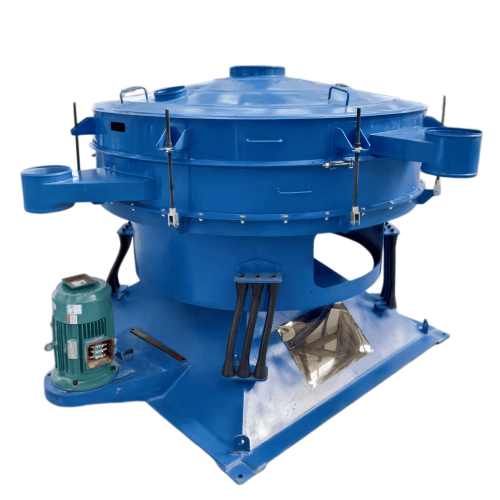

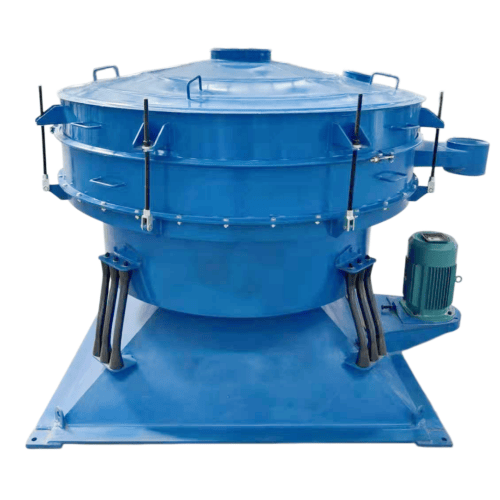

Carbon Steel-Y1200-Swing vibrating screen
Basic Information
Model
JX-RVS-Y1200
Unit
set
Category
Vibrating Screen Machine
Delivery Time
30 Days
Package Size
1785x1275x1210 mm
Package Weight
450 KG
Product Images
Technical Specifications
General Paraneters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-RVS-Y1200 | — | — |
| Material | Carbon Steel | — | — |
| Production Capacity | Refer to the specification in the price list | — | — |
| Screening Material | / | — | — |
| Dynamic Load | / | N | — |
| Static Load | / | N | — |
| Excitation Force | / | KN | — |
| Double Amplitude | / | mm | — |
| Dimensions (L*W*H) | 1200*1200*900 | mm | — |
| Total Weight | ~355 | kg | — |
Screen urface Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screen Diameter | Ф1130 | — | — |
| Number of Screen Layers | 1 | — | — |
| Screening Area | 1.003 | m2 | — |
| Screen Mesh Specification | woven screen | — | — |
| Screen Mesh Structure | woven screen | — | — |
Drive Parts
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | 2.2 | KW | — |
| Speed | / | rpm | — |
| Motor | 380V 50HZ/Customized | — | — |
| Model | — | — |
Component Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Top Cover | mm | — | |
| Upper Frame | mm | — | |
| Lower Frame | mm | — | |
| L-shaped Mesh Frame | — | — | |
| Bearing | — | — | |
| Vibration Body | — | — | |
| Base | — | — | |
| Skirt | — | — | |
| Spring | — | — | |
| Sealing Ring | — | — | |
| PU Ring (per layer) | — | — | |
| Anti-blocking Mesh Bouncing Balls (per layer) | — | — |
