Sludge Dewatering Press: A Smart Solution for Solid-Liquid Separation
What Is a Sludge Dewatering Press?
A sludge dewatering press — also called a screw press or multi-disc screw press — is a new type of solid-liquid separation equipment. It dewaters sludge by combining the powerful extrusion force generated by the changing screw diameter and pitch with the tiny gaps between the moving rings and fixed rings.
How Is It Built?
At its core, the press is a filtration device made up of multiple fixed rings and moving rings, with a screw shaft running through the center. The front section handles concentration (thickening), while the rear section takes care of dewatering. This clever design means both steps happen inside a single cylinder — no separate equipment needed.
How Does It Work?
Sludge first goes through gravity concentration in the front section. From there, it's carried into the dewatering zone. As it moves forward, the gaps and screw pitch gradually get smaller, and with the added resistance from the back pressure plate, this creates extremely high internal pressure. The volume keeps shrinking along the way, resulting in thorough dewatering.
What Comes With It?
A typical setup includes a dosing unit, screw pump, conveyor, and other auxiliary equipment. In most cases, screw pumps are the go-to choice for transporting sludge in screw press systems (we have a product brochure available if you'd like to take a look).
Why Choose a Sludge Dewatering Press?
- Efficient dewatering — progressive screw compression and precisely controlled ring gaps get the job done
- Compact and space-saving — thickening and dewatering all in one cylinder
- Runs continuously with minimal supervision
- Quiet and energy-efficient
- Self-cleaning ring structure helps prevent clogging
- Versatile — works well for both municipal and industrial sludge
What Makes JX Filtration Different?
Trusted Brand Components
Our presses typically come with Schneider and Siemens motors and control cabinets — internationally recognized brands you can count on for quality and reliability.
An Integrated System That Simplifies Everything
We know that configuring the right equipment can be a headache. That's why we've put together an integrated system that includes the screw press, dosing unit, sludge transfer pump, and dosing pump — all in one package, so you don't have to piece things together yourself.
Support From Start to Finish
You won't have to worry about installation or operation. Our dedicated after-sales team is here to help — whether that's through online meeting guidance or on-site instruction.

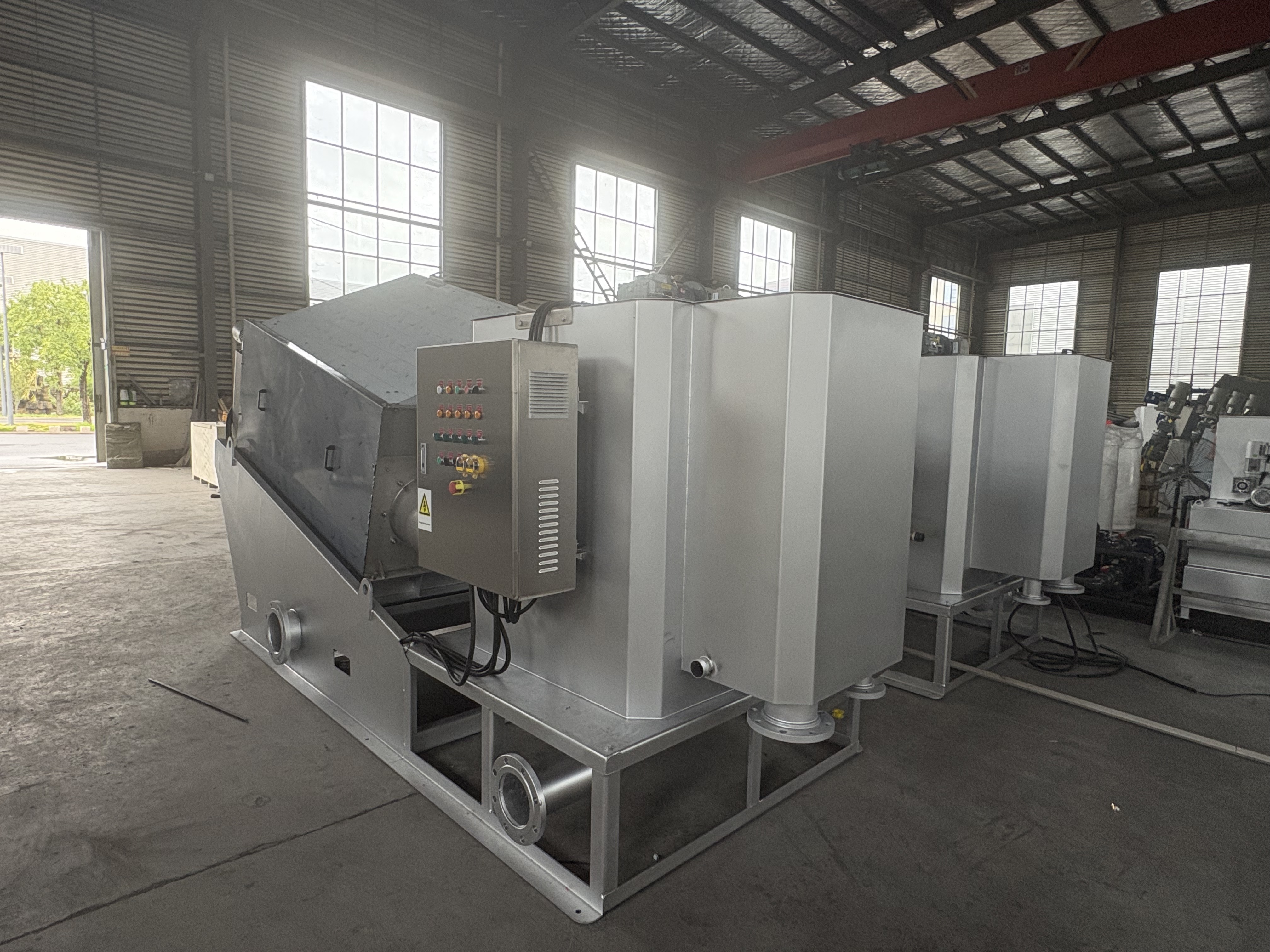

[Figure 1: Screw Press]

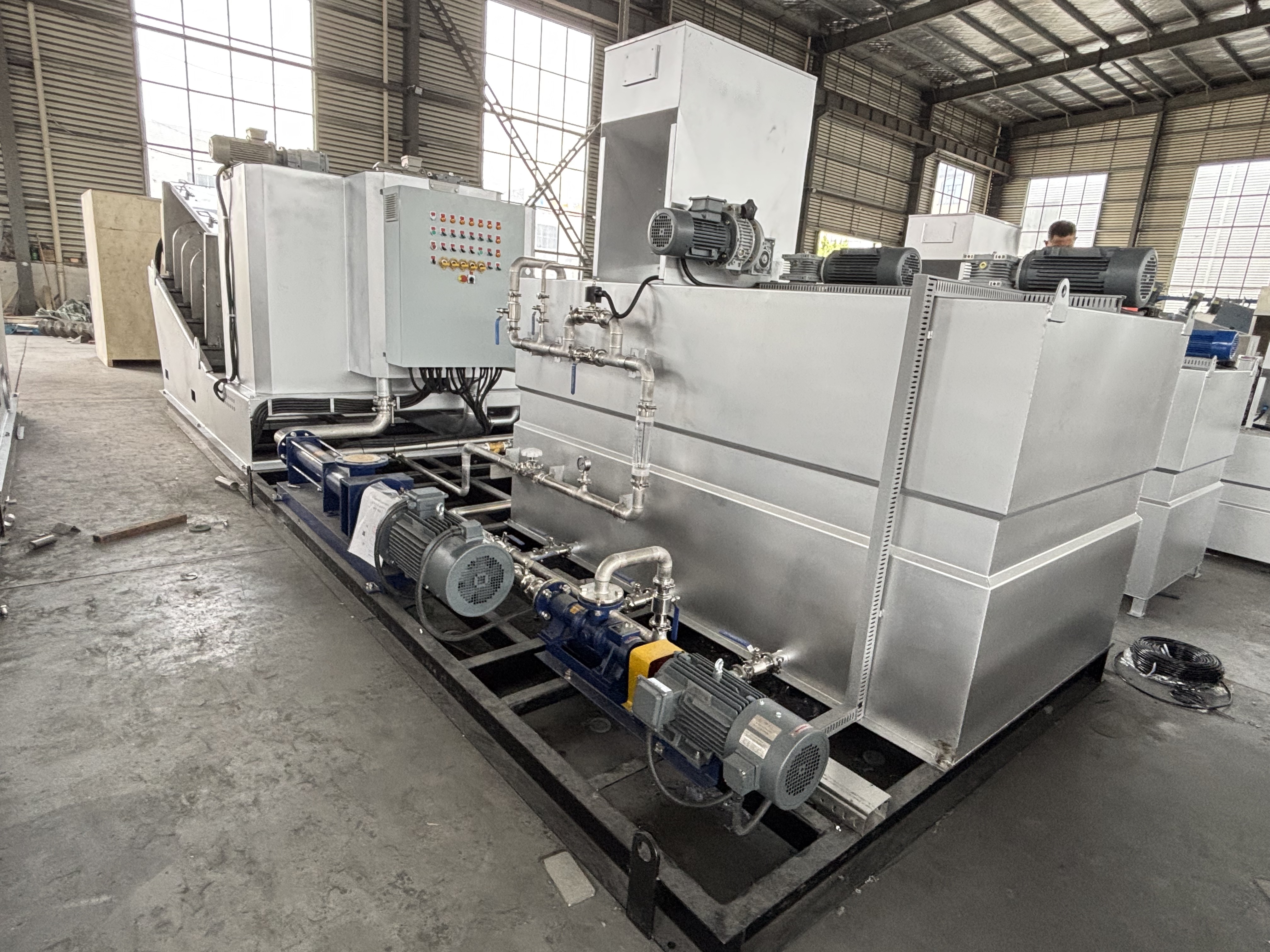

[Figure 2: Integrated System]

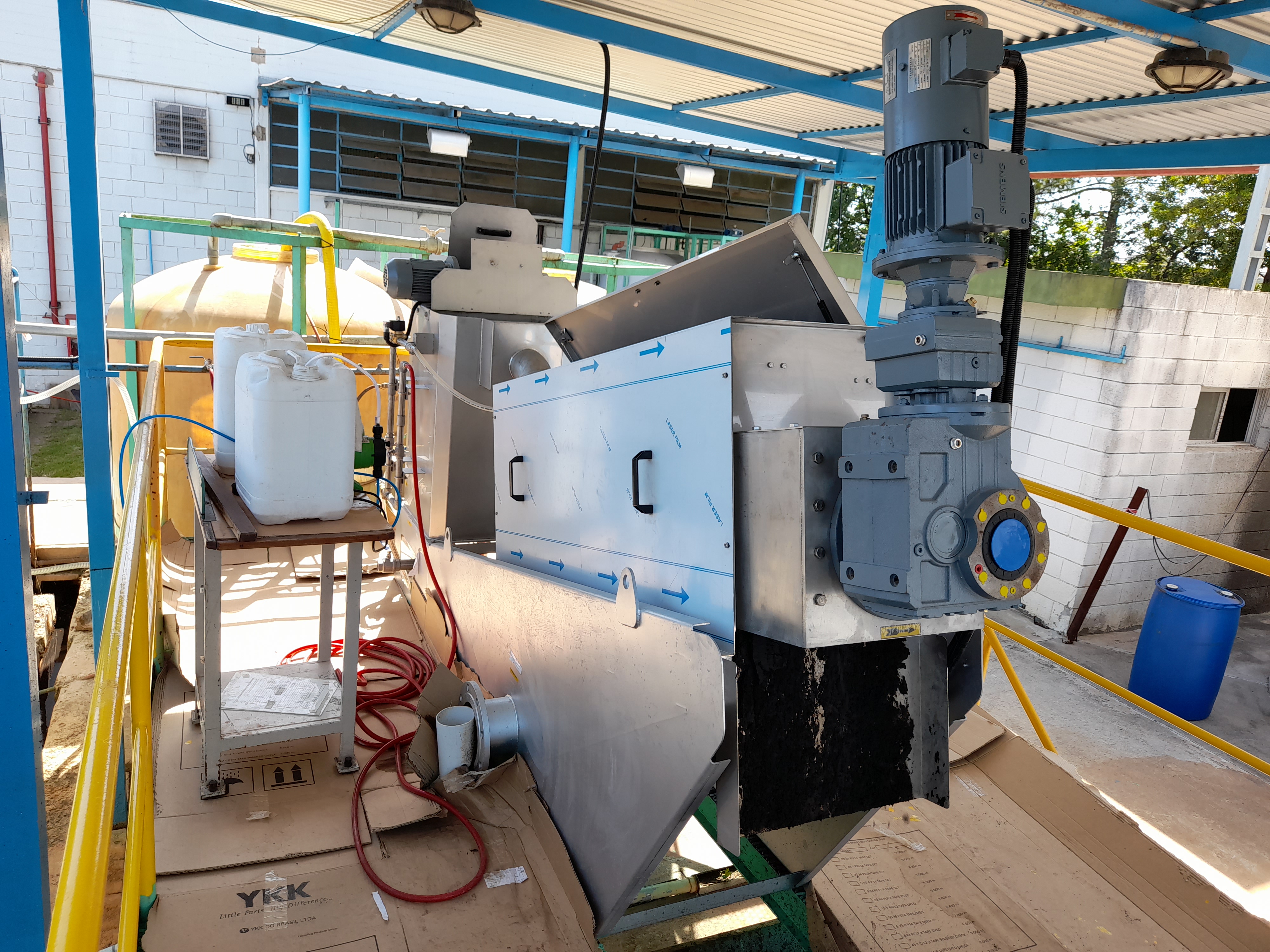

[Figure 3: On-site application photo shared by our customer in Argentina]
