SUS316-Resin catcher DN150
Basic Information
Model
JX-ZBQ-150-316
Unit
set
Category
Resin Trap
Delivery Time
30 Days
Package Size
540x580x1120 mm
Package Weight
100 KG

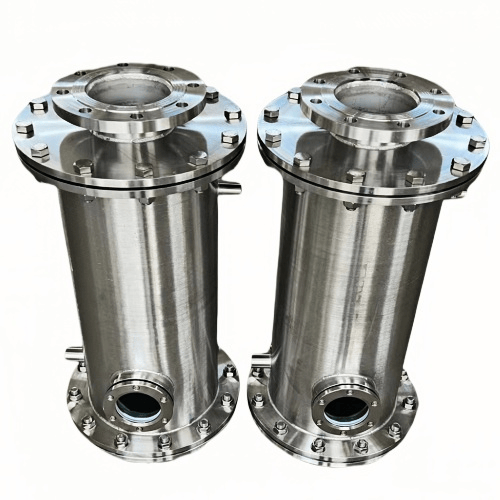

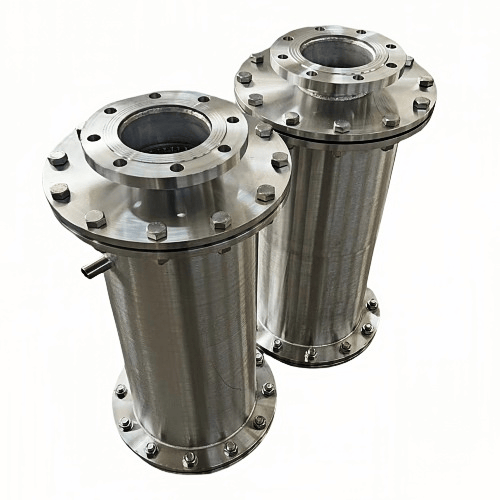

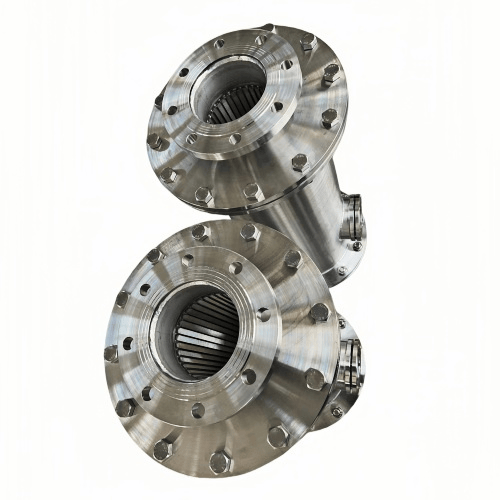

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-ZBQ-150 | — | — |
| Material | SUS316 | — | — |
| Flow Rate | According to client’s request | — | — |
| Working Pressure | ≤1.0 MPa（Standard） | MPa | — |
Filtration System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration Accuracy | According to client’s request | — | — |
| Filtration Direction | From outside to inside | — | — |
| Filter Element Diameter | ф219 | mm | — |
| Diameter Of The Cylinder | ф325 | mm | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Pipe Size | DN150 | — | Inlet/Outlet：DN150 |
| Auxiliary Function | NO | — | — |
