SS316-400-Pneumatic Self-cleaning filter
Basic Information
Model
JX-GS-Q400
Unit
set
Category
Pneumatic Self Cleaning Filter
Delivery Time
30 Days
Package Size
700x550x2300 mm
Package Weight
320 KG

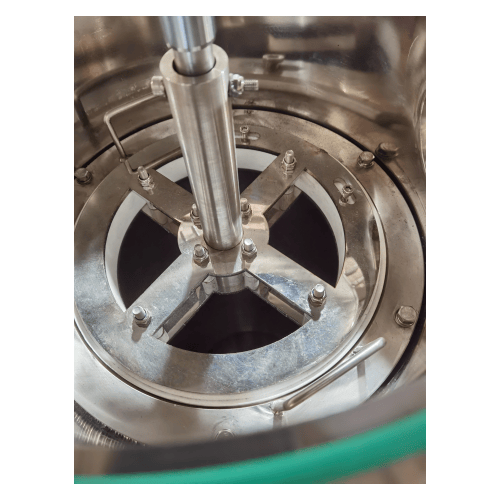

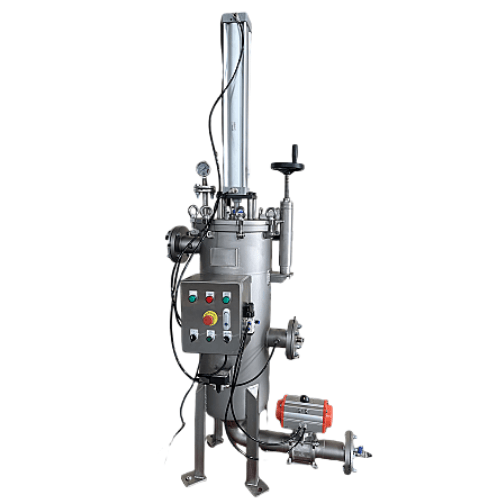

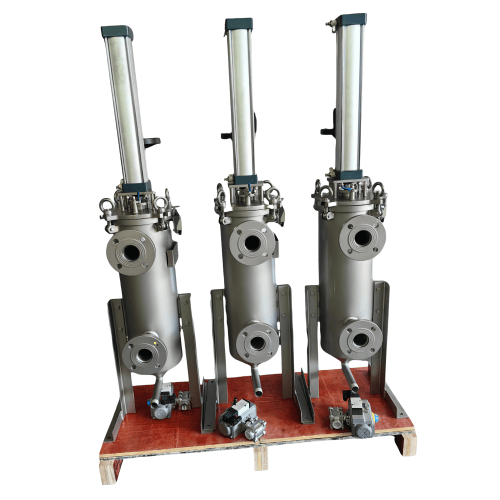

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Treatment Capacity | According to client’s request | m3/h | — |
| Housing Material | SS316 | — | — |
| Design pressure | 1.6 | Mpa | — |
| Working pressure | 0.8 | Mpa | — |
Pipeline Connection
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | SS316, 4“ | — | Customizable |
| Outlet | SS316, 4” | — | Customizable |
| Drain | SS316, 1“ | — | Customizable |
| Flange Standard | SS316, ANSI/JIS/GB | — | — |
Filtration System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Screen Material | SS316 | — | — |
| Filter Screen Type | Customizable | — | Screen Diameter: ∅350*680 |
| Filtration Accuracy | Customizable | — | — |
Cleaning System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Cleaning Components | SS316, Scraper | — | — |
| Drain Valve | SS316, Pneumatic/Electric | — | — |
Driving System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Cylinder Brand | Optional-AIRTAC, Festo | — | — |
| Rated Voltage | 400V / 50Hz, 3-phase | — | Customized according to on-site power supply |
| Differential Pressure Switch | Well-known Shanghai brand, China | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Electrical Components | Siemens or Schneider products | — | — |
| Control System | Siemens PLC with 7 inches touch screen | — | — |
