SS316-32-Bag Filter Housing
Basic Information
Model
JX-MBFH-32-SS316
Unit
set
Category
32-Bag Filter Housing
Delivery Time
30 Days
Package Size
1900x1900x2800 mm
Package Weight
1250 KG

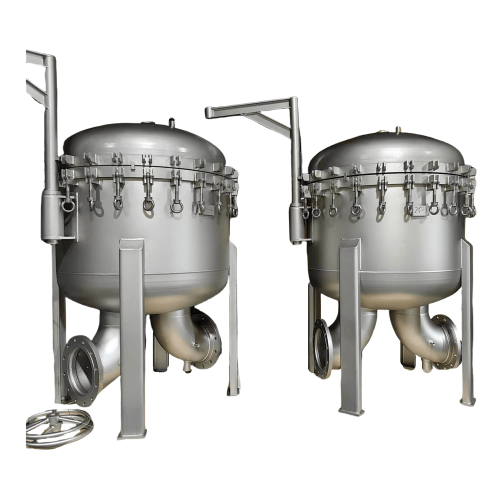

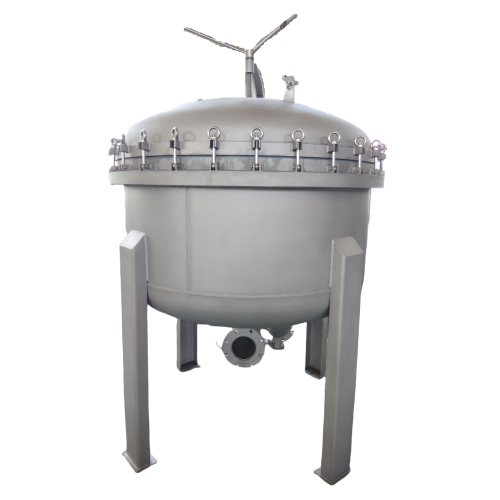

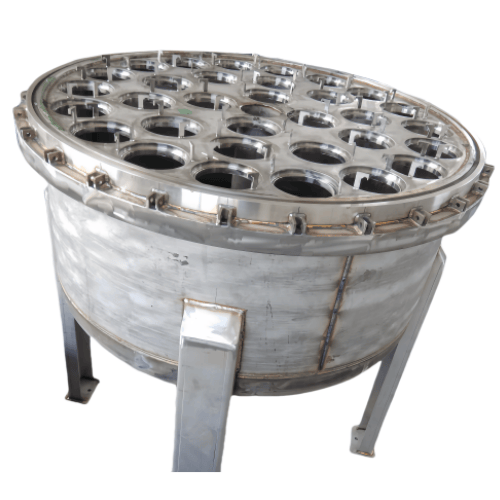

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-MBFH-32 | — | — |
| Filtration Rating | Refer to the specification in the price list | — | — |
| Max. Working Pressure | 0.6 | — | — |
| Operating Temperature | 80 | °C | — |
Structural Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Housing Material | SS316L | — | — |
| Filter Bag Material | PP/ABS/PE | — | Customer optional |
| Sealing Material | Nitrile Rubber / Fluoro Rubber | — | Other requirements are optional |
| Filter Bag Size | 180x810 | — | — |
| Connection Type | Flanges (ANSI/DIN/JIS Standards), Threaded Ports, Quick Clamp, Customizable | — | — |
| Lid Opening Method | Swing Arms | — | — |
| Surface Treatment | Polishing, Sanding, Customizable | — | Customer Optional |
Performance Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Pressure Drop | ≤0.1 MPa (Initial) / ≥0.3 MPa (Filter Bag Replacement Recommended) | MPa | — |
| Filtration Efficiency | ≥99.9% (Nominal Rating) | — | — |
| Cleaning Method | Manual cleaning | — | — |
