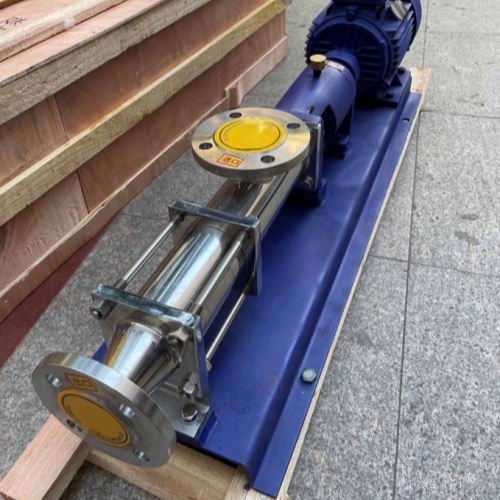

SS304-G60-Transfer Pump
Control System：1660（泵）+875(控制系统价格)=2535$
Basic Information
Model
JX-G60-1-304
Unit
set
Category
Pump
Delivery Time
30 Days
Package Size
1550x450x450 mm
Package Weight
180 KG
Product Images
Technical Specifications
General Paraneters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-G60-1 | — | — |
| Material | SS304 | — | — |
| Installation Size | See drawing | mm | — |
Flow parameter
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flow Rate | 30 | m3/h | — |
| Head | 60 | m | — |
| Inlet Size | DN125 | mm | — |
| Outlet Size | DN100 | mm | — |
Driving System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Power | 11 | KW | — |
| Power Supply | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Motor Brand | Customizable | — | — |
