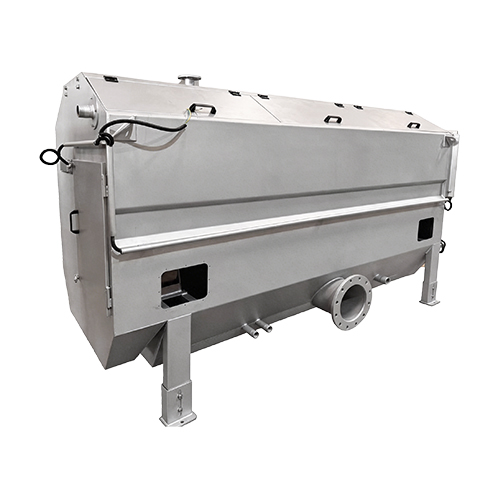

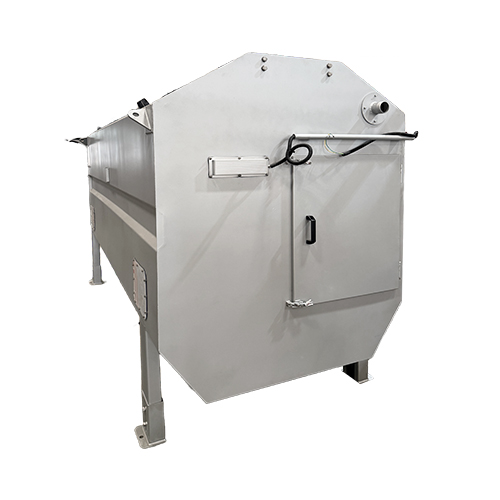

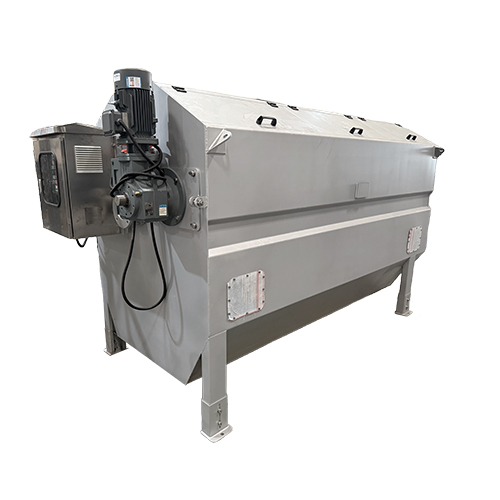

SS304-800*2000-Internally Fed Rotary Drum Screen(Punching mesh)
Basic Information
Model
JXN-800-SS304
Unit
set
Category
800-Internally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
2750x1390x2080 mm
Package Weight
2400 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JXN-800 | mm | — |
| Size | Ф800*2000 | mm | — |
| Filtering area | 5.02 | m2 | — |
| Teatment capacity | Refer to the specification in the price list | m3/h | — |
| Main Material | SS304 | — | — |
| Equipment Weight | 2250 | KG | — |
| Installation Size | See drawing | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Type | Perforated | — | Perforated, Wedge, Woven, Sintered |
| Filter Precision | Customizable | mm | — |
| Filter Material | SS304 | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Automatic/Manual | — | — |
| Power | 1.5 | KW | — |
| Rated Voltage | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Rotation Speed | 6 | r/min | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN250 | — | As per customer drawing |
| Outlet | DN250 | — | As per customer drawing |
| Backwash cleaning pipe | 1" | — | As per customer drawing |
