SS304-350-Pneumatic Self Cleaning Filter-Duplex
Basic Information
Model
JX-GS-Q350-304
Unit
set
Category
Pneumatic Self Cleaning Filter
Delivery Time
30 Days
Package Size
1800x750x2300 mm
Package Weight
800 KG

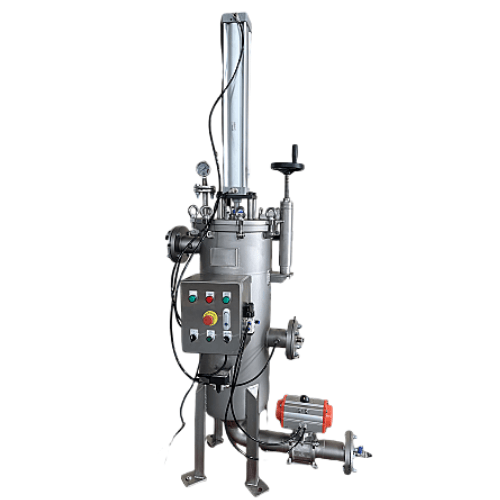

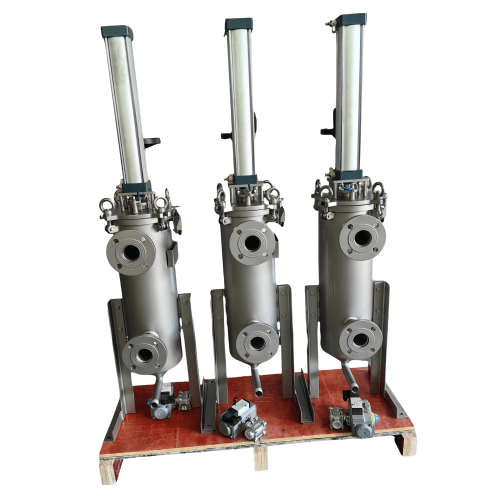

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Treatment Capacity | According to client’s request | m3/h | — |
| Housing Material | SS304 | — | — |
| Design pressure | 1.6 | Mpa | — |
| Working pressure | 0.8 | Mpa | — |
Pipeline Connection
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | 4"/Customizable | — | — |
| Outlet | 4"/Customizable | — | — |
| Drain | 1"/Customizable | — | — |
| Flange Standard | ANSI/JIS/GB | — | — |
Filtration System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Screen Material | SS304 | — | — |
| Filter Screen Type | Sintered from perforated plate and woven wire mesh. | — | — |
| Filtration Accuracy | Customizable | — | — |
Cleaning System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|

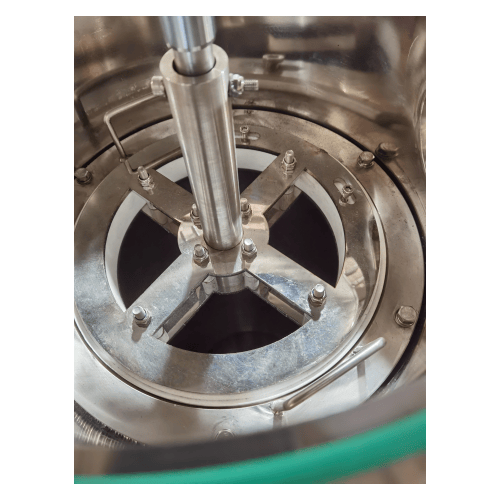

| Cleaning Components | Scraper | — | — |
| Drain Valve | Pneumatic/Electric | — | — |
Driving System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Cylinder Brand | Optional-AIRTAC, Festo | — | — |
| Rated Voltage | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | Customized according to on-site power supply |
| Differential Pressure Switch | Well-known Shanghai brand, China | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Electrical Components | Siemens or Schneider products | — | — |
| Control System | Siemens PLC with 7 inches touch screen | — | — |
