SS304-325-Fully Automatic Self-cleaning filter
Basic Information
Model
DN325
Unit
set
Category
Automatic Self-cleaning filter
Delivery Time
30 Days
Package Size
850x700x1600 mm
Package Weight
320 KG

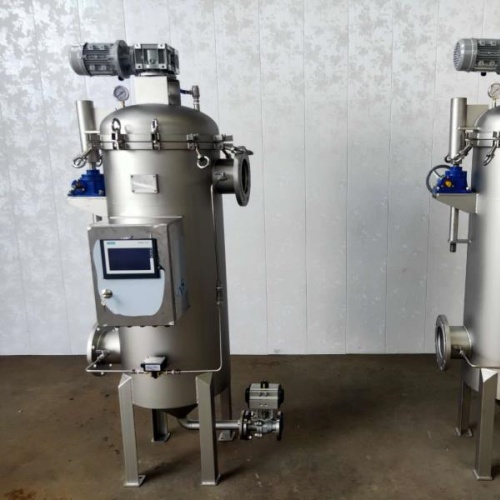

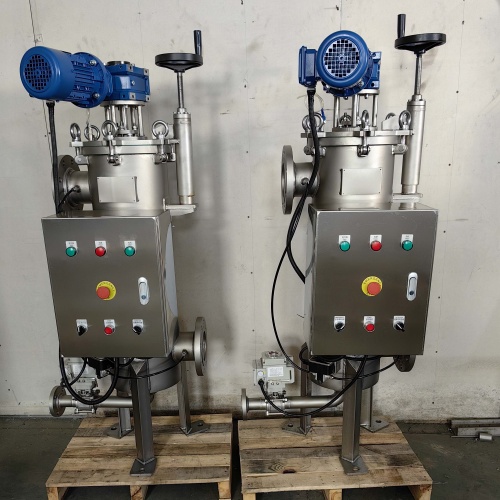

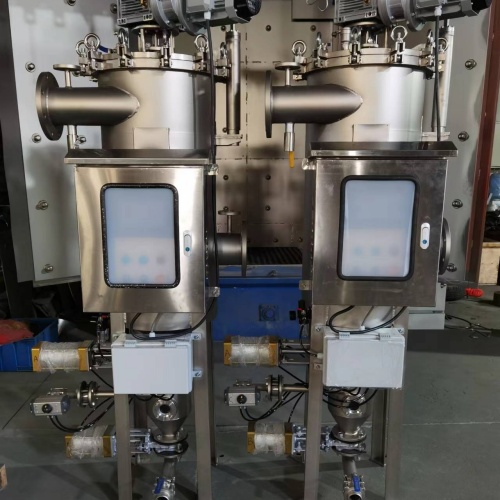

Product Images
Technical Specifications
Main
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flow rate | Refer to the specification in the price list | m³/h | — |
| Design pressure | According to customer demand | MPa | — |
| Testing pressure | 1.6 | MPa | — |
| Water loss | <0.01 | MPa | — |
| Filter element | Wedge wire screen or Sintered screen Material: SS304 | — | — |
| Filter precision | Refer to the specification in the price list | mm | — |
| Qty of filter element | 1 | Pc | — |
| Housing material | SS304 | — | — |
| Flange connection | As per customer drawing | — | — |
| Motor power | 0.25 | kw | — |
| Rated voltage | AC380/50Hz/3phase or as per customer requirements | V | — |
| Electromagnetic valve | Brand: Chinese famous brand | — | — |
| Differential pressure transmitter | Brand: BB0CCA or Chinese famous brand | — | — |
| Discharge outlet | As per drawing | — | — |
| Control box | IP55 Housing material: stainless steel | — | — |
| Control system | Siemens PLC with 7 inches touch screen | — | — |
| Control mode | Automatic control system, including manual control, time control and difference Pressure Control | — | — |
