SS304-219-Pneumatic Self Cleaning Filter
Basic Information
Model
JX-GS-Q219
Unit
set
Category
Pneumatic Self Cleaning Filter
Delivery Time
30 Days
Package Size
1700x1600x1750 mm
Package Weight
140 KG

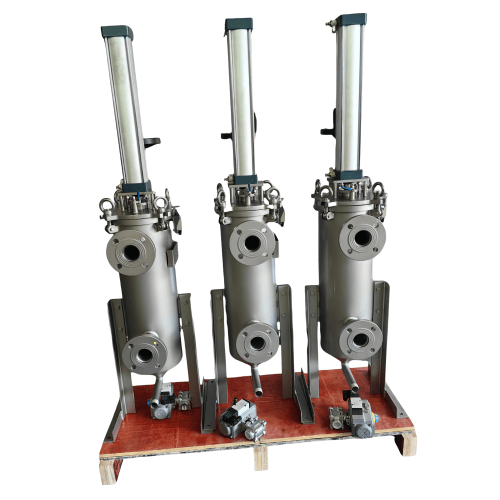

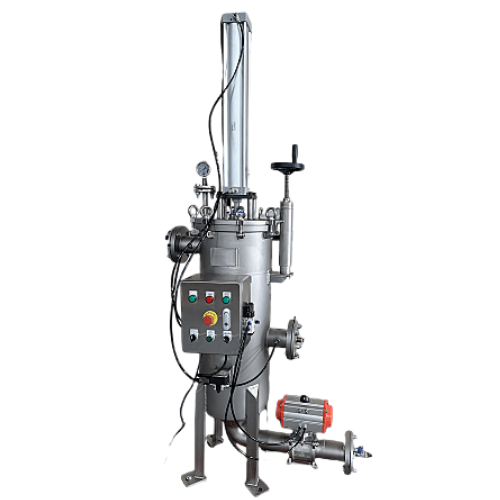

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Treatment Capacity | According to client’s request | m3/h | — |
| Housing Material | SS304 | — | — |
| Design pressure | 1.0 | Mpa | — |
| Working pressure | 0.6 | Mpa | — |
Pipeline Connection
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | Customizable | — | — |
| Outlet | Customizable | — | — |
| Drain | Customizable | — | — |
| Flange Standard | ANSI/JIS/GB | — | — |
Filtration System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Screen Material | SS304 | — | — |
| Filter Screen Type | Perforated screen 168X660 | — | — |
| Filtration Accuracy | Customizable | — | — |

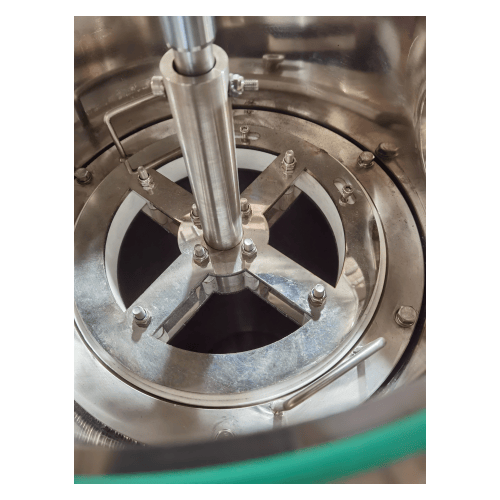

Cleaning System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Cleaning Components | Scraper | — | — |
| Drain Valve | Pneumatic/Electric | — | — |
Driving System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Cylinder Brand | Optional-AIRTAC, Festo | — | — |
| Rated Voltage | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Differential Pressure Switch | Well-known Shanghai brand, China | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Electrical Components | Siemens or Schneider products | — | — |
| Control System | Optional-Manual, Automatic | — | — |
