SS304-1030-3S-Linear Vibrating Screen Machine
Basic Information
Model
JX-RVS-1030-3-SS304
Unit
set
Category
Linear Vibrating Screen Machine
Delivery Time
30 Days
Package Size
3620x1100x1720 mm
Package Weight
860 KG

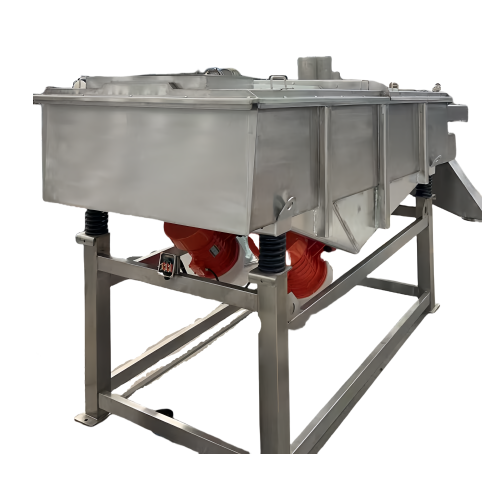

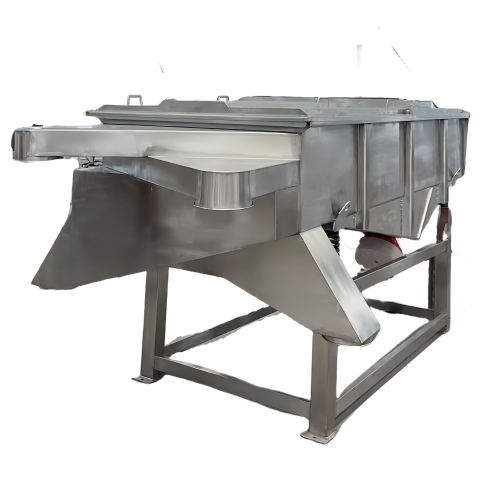

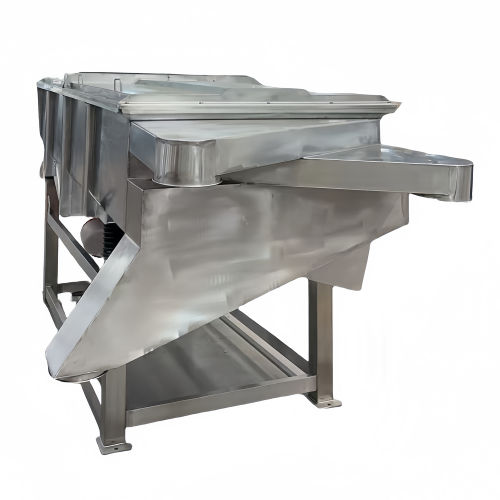

Product Images
Technical Specifications
General Paraneters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-RVS-1030-3 | — | — |
| Material | SS304 | — | — |
| Production Capacity | Customizable | — | — |
| Dimensions (LWH) | 3517*1000*1620 | mm | — |
Screening Surface Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Number of Screen Layers | 3 | S | — |
| Screening accuracy | Customized by Customer | — | — |
| Screen Surface Area | 2.96 | m2 | 1000mm×2960mm |
| Screen Structure | Wedge Wire Type | — | 4mm/12mm/16mm |
Drive Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | 1.1*2 | KW | — |
| Power Supply | 3-phase/380V/50HZ | — | — |
Components
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Dust Cover | Stainless steel 304 | — | — |
| Box | Stainless steel 304 | — | — |
| Frame | Stainless steel 304 | — | — |
| Screen Mesh | Stainless steel 304 | — | — |
| Dowel Plate | Carbon steel Q235 | — | — |
| Motor Board | Carbon steel Q235 | — | — |
| Spring | Galvanized iron spring | — | — |
