Dupont Membrane 30pro (400/34)
Basic Information
Model
BW30 PRO-400/34 Element
Unit
set
Category
Dupont Membrane
Delivery Time
30 Days
Package Weight
1 KG

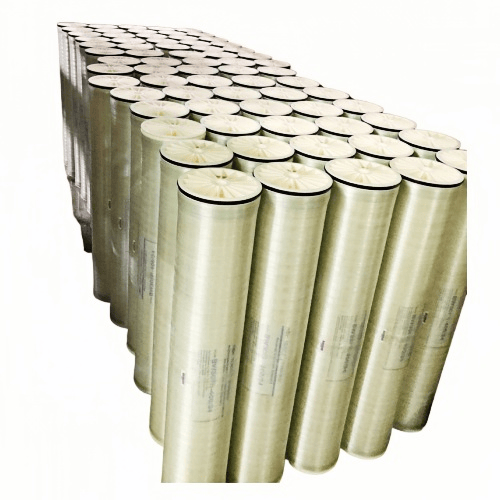

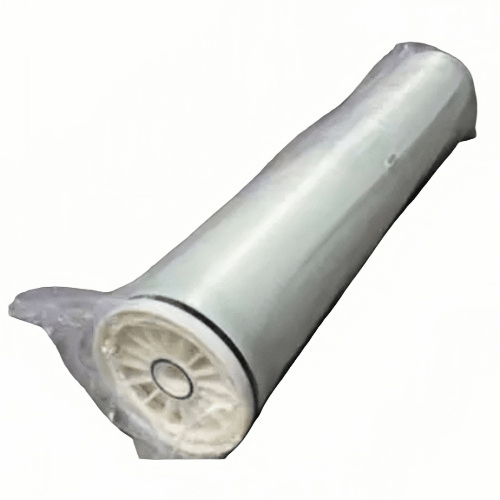

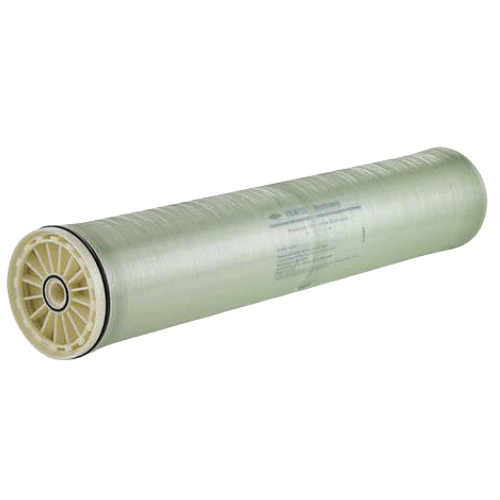

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | BW30 PRO-400/34 Element | — | — |
| Water Production | 11000GPD | — | — |
| Effective Area | 400ft/37㎡ | — | — |
| Stable Salt Rejection | 99.6 | % | — |
| Stable Boron Rejection | / | % | — |
| Feed Spacer Thickness | 34mil | — | — |
Component Size
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Overall Length | 40.0 (1016) | — | — |
| Inlet Size | 1.125 ID(29) | — | — |
| Outlet Size | 7.9 (201) | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Maximum Operating Temp. | 113℉ (45℃) | — | — |
| Maximum Operating Pressure | 600psi (41bar) | — | — |
| pH Range | Continuous Operation:2 - 11; Short-Term Cleaning (30 min.):1 - 13 | — | |
| Maximum Feed SDI | 5 | — | — |
| Free Chlorine Tolerance | ＜0.1ppm | — | — |
