Dupont Membrane -30（440）
Basic Information
Model
BW30HRLE-440
Unit
set
Category
Dupont Membrane
Delivery Time
30 Days
Package Weight
1 KG

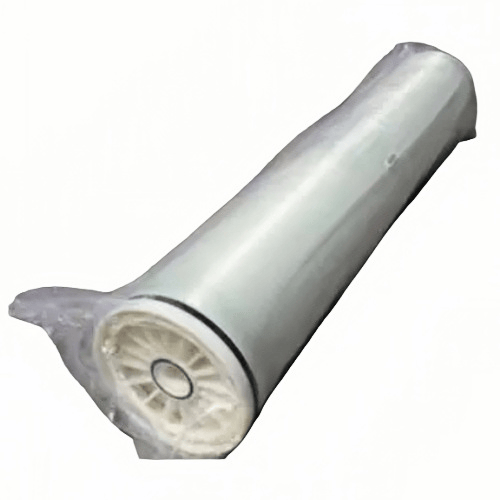

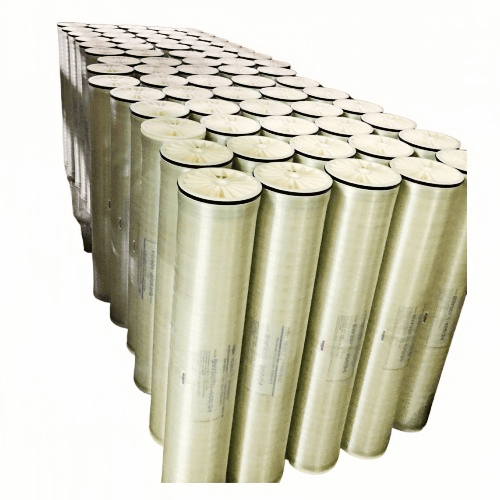

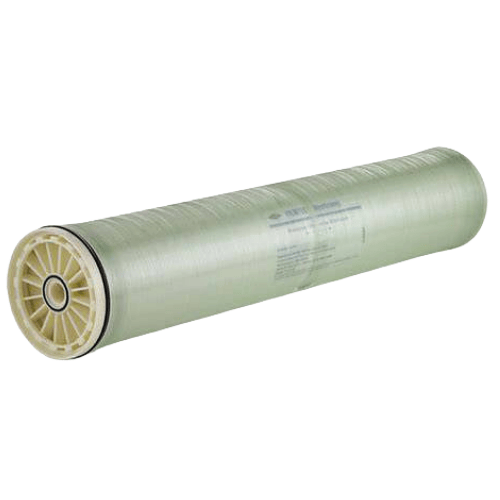

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | BW30HRLE-400 | — | — |
| Water Production | 12650GPD | — | — |
| Effective Area | 440ft²/37㎡ | — | — |
| Stable Salt Rejection | 99.7 | % | — |
| Stable Boron Rejection | 99.4 | % | — |
| Feed Spacer Thickness | 28mil | — | — |
Component Size
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Overall Length | 40“（1016） | — | — |
| Inlet Size | 1.125”（29） | — | — |
| Outlet Size | 7.9“（201） | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Maximum Operating Temp. | 113℉（40℃） | — | — |
| Maximum Operating Pressure | 600psi（83bar） | — | — |
| pH Range | Continuous:2-11 Short-term Cleaning (30 min)：1-13 | — | — |
| Maximum Feed SDI | 5 | — | — |
| Free Chlorine Tolerance | < 0.1 ppm | — | — |
