Carbon steel-Tubular Self Cleaning Filter
Basic Information
Model
JX-GD-400
Unit
set
Category
Tubular Self Cleaning Filter
Delivery Time
30 Days
Package Size
1125x940x1900 mm
Package Weight
500 KG

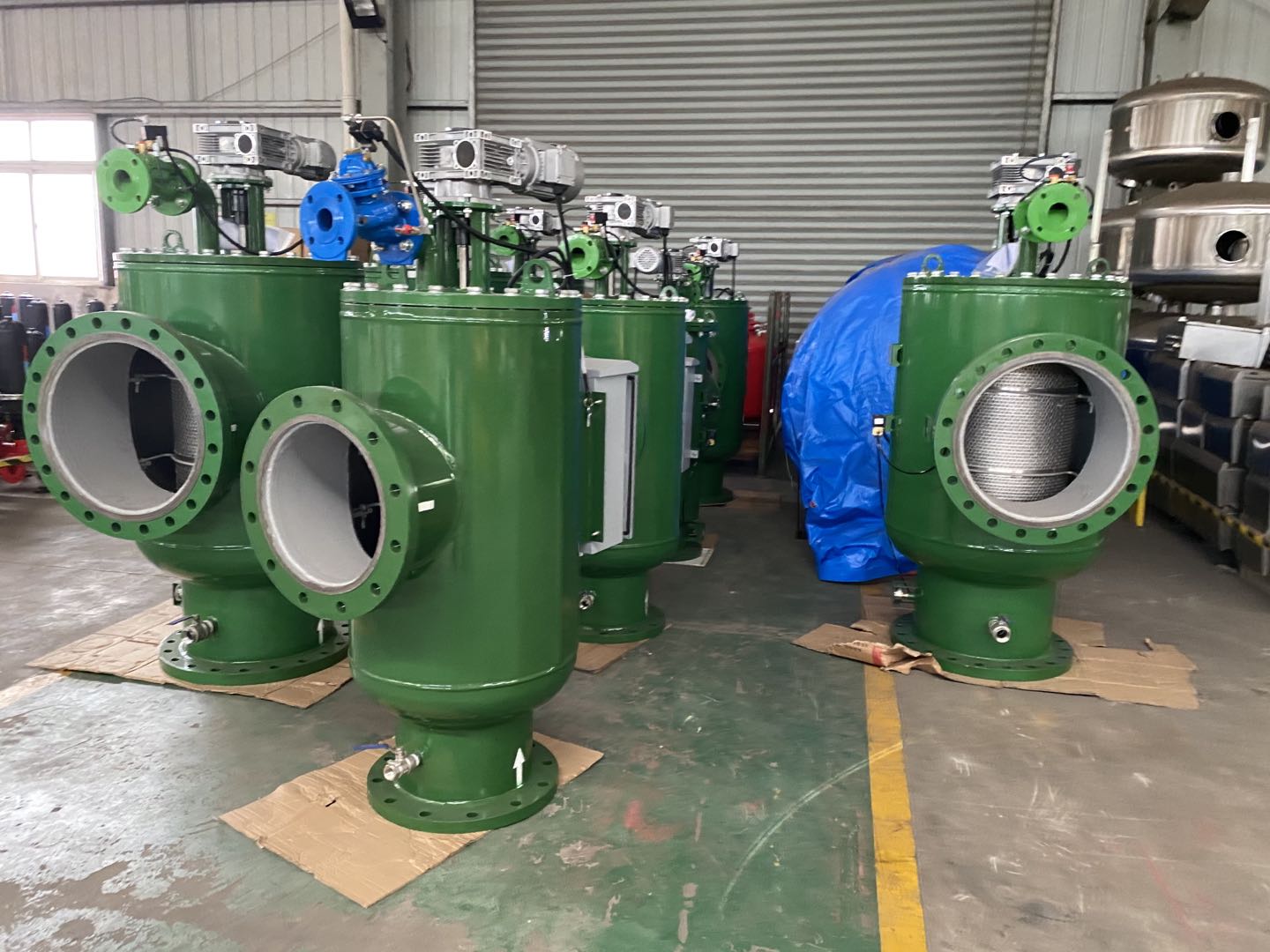

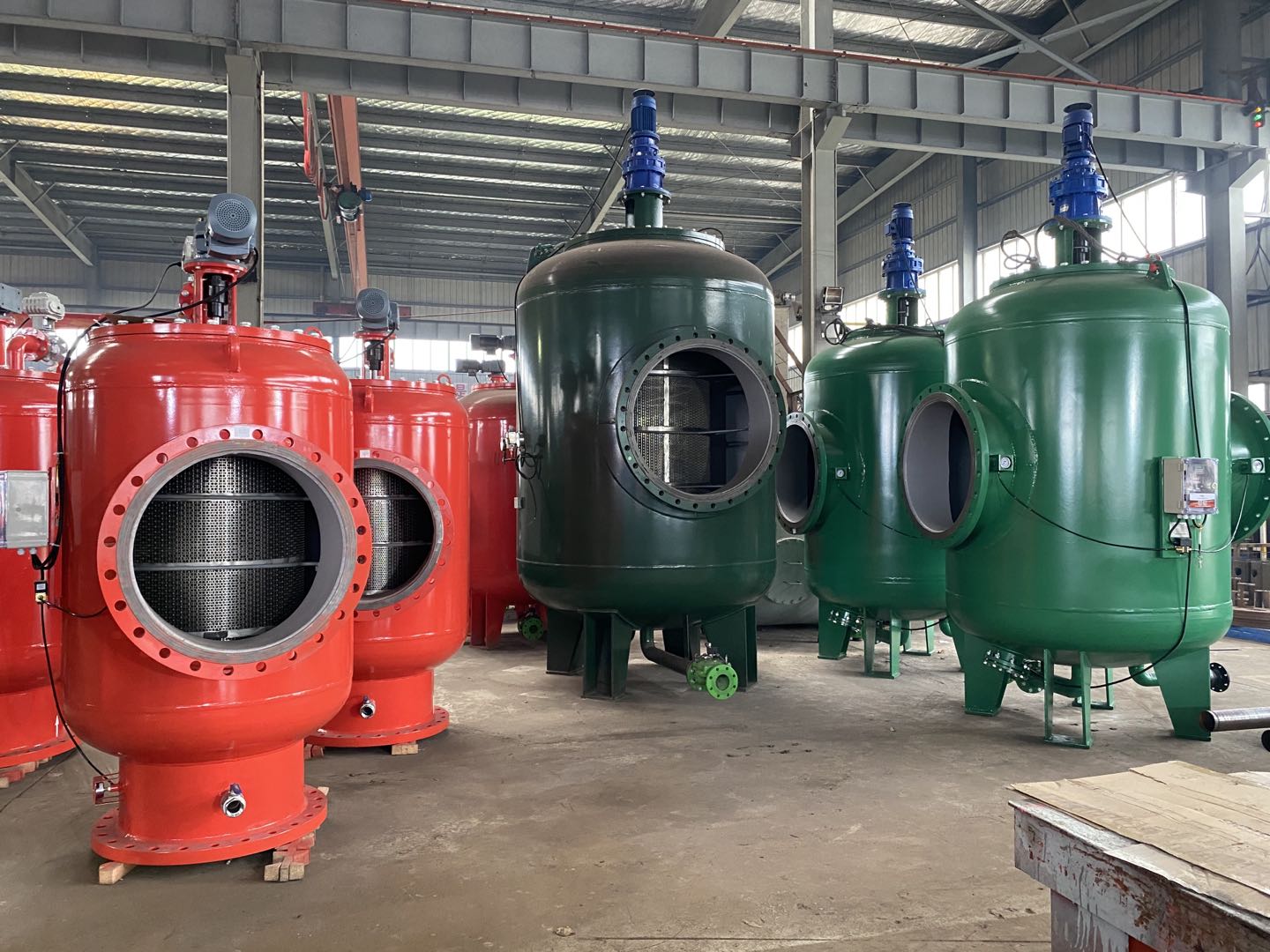

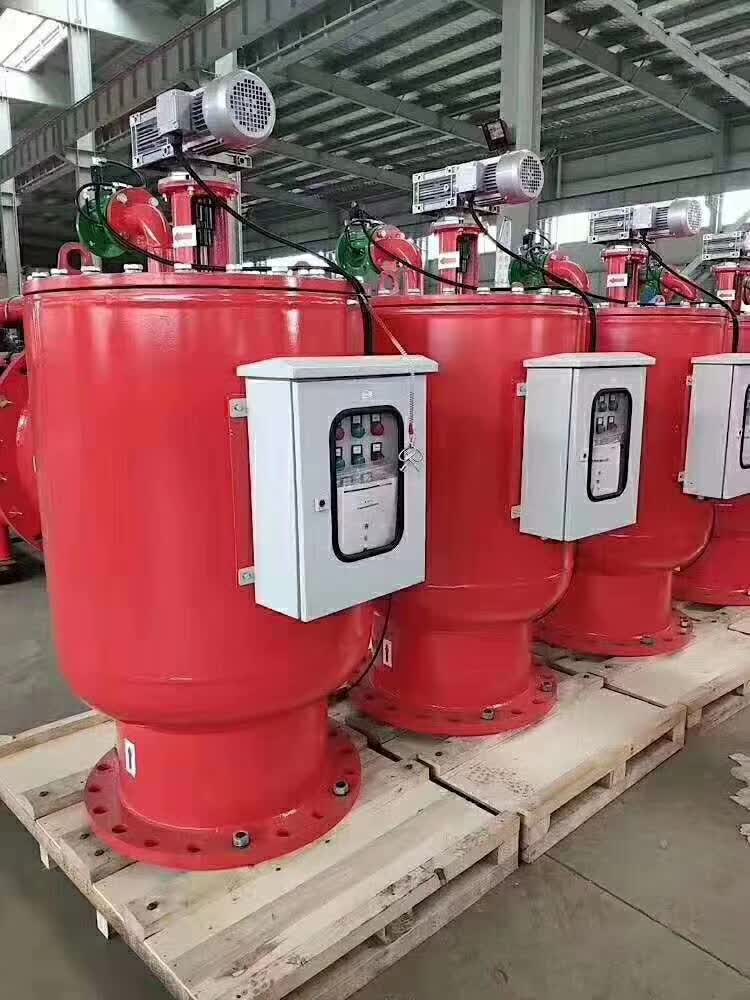

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GD-400 | — | — |
| Feeding Capacity | 1200 | m3/h | — |
| Material | CS | — | — |
| Design Pressure | 0.6 | MPa | — |
| Testing Pressure | 1 | MPa | — |
| Water Loss | <0.01 | MPa | — |
| Equipment Weight | 450 | KG | — |
| Equipment Size | 1784x1025x835 | mm | — |
Filter
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS304 | — | — |
| Filter Screen Type | Wedge wire screen | — | — |
| Qty of Filter Screen | 1 | — | — |
| Drum Diameter | As per the customer's request | — | — |
Pipe Diameter
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | Customizable | — | — |
| Outlet | Customizable | — | — |
| Drain | Customizable | — | — |
| Flange Standard | As per customer drawing | — | — |
Drive Parts
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Power | 0.55 | KW | — |
| Power Supply | AC380/50Hz/3phase or as per customer requirements | — | — |
| Motor Brand | Nord/SITI | — | — |
| Electromagnetic Valve | Brand: Chinese famous brand | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Box | IP55 Housing material: stainless steel | — | — |
| Control System | Siemens PLC integrated with 7" Siemens touch panel | — | — |
| Control Method | Automatic control system, including manual control, time control and difference Pressure Control | — | — |
| Cleaning Time | 60 | s | — |
