60m³-Internally Fed Rotary Drum Screen
Basic Information
Model
JX-NY-60
Unit
set
Category
Farming - Internally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
1150x1590x1050 mm
Package Weight
550 KG

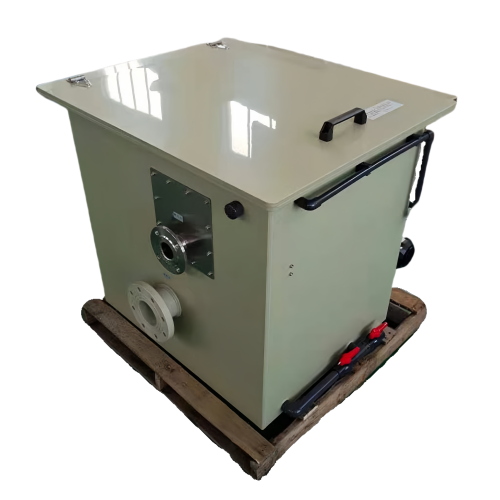

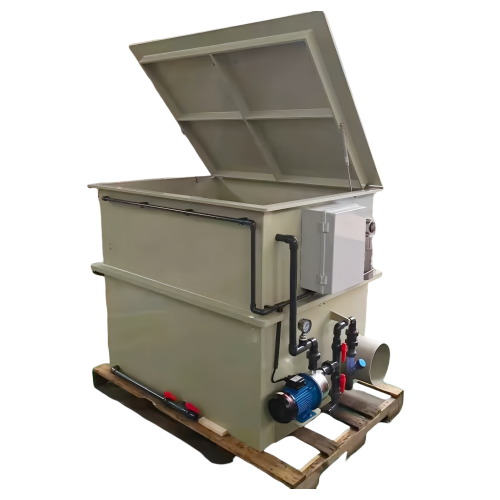

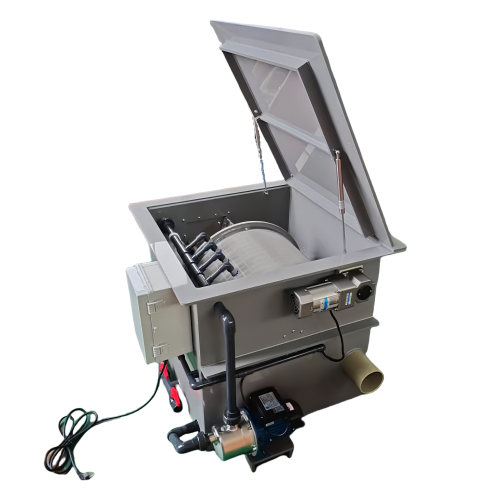

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-NY-60 | mm | — |
| Teatment capacity | 60 | m3/h | — |
| Size | / | mm | — |
| Filtering area | / | m2 | — |
| Main Material | PP | — | — |
| Equipment Weight | ~520 | KG | — |
| Installation Size | 1150x1590x1050 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Precision | 30 | um | — |
| Filter Material | SS316 | — | — |
| Filter Type | Woven | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Electrical control Cabinet | — | Outdoor anti-corrosion type |
| Power | 0.55 | KW | — |
| Rated Voltage | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Rotation Speed | Chain drive or variable speed gears | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN150 | — | Includes flange connections |
| Outlet | DN150 | — | Includes flange connections |
| Backwash cleaning pipe | 1∕4” NPT | — | Includes flange connections |
