360-SS304-Sand Water Separator
Basic Information
Model
JX-GSF-360-SS304
Unit
set
Category
Sand Separator
Delivery Time
30 Days
Package Size
5860x2060x3200 mm
Package Weight
1700 KG

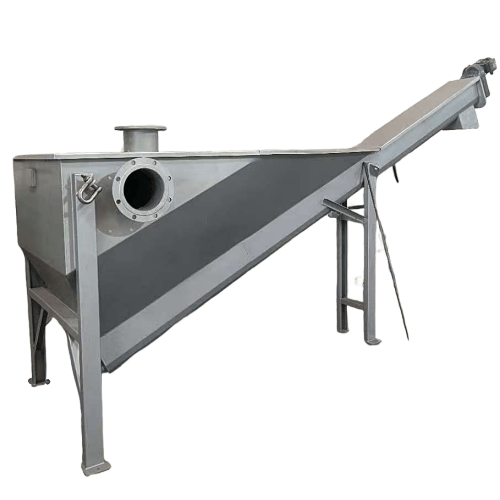

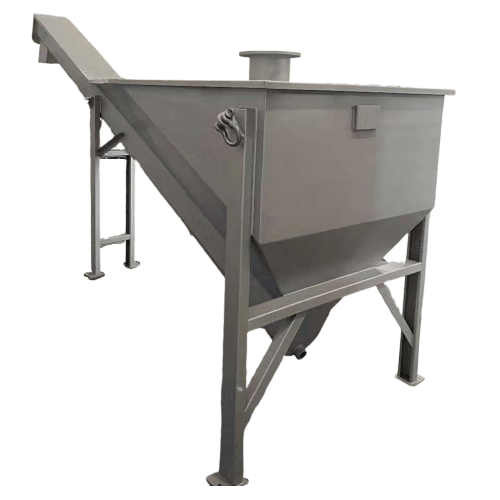

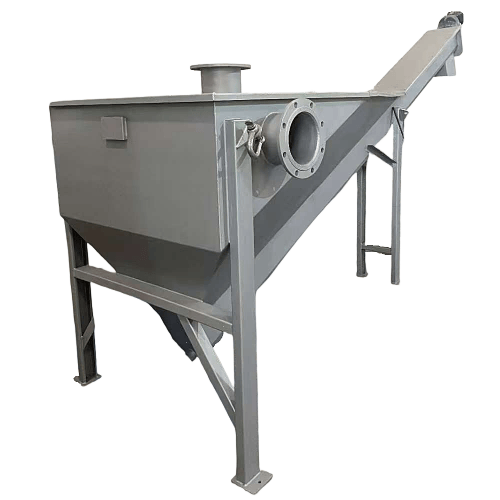

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Type | JX-GSF-360 | — | — |
| Capacity | ~100 | m3/h | — |
| Material | SS304 | — | — |
| Size | ~5760*1960*3100 | mm | — |
| Weight | ~1600 | KG | — |
Powe Supply
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | 1.5 | KW | — |
| Power Supply | 380V，3ph，50Hz/Customizable | — | — |
| Insulation Level | F | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Installation Angle | Customizable | — | — |
| Speed | 7.1 | rpm | — |
| Box Volume | ~2.1 | m3 | — |
