3-2+80-Disc Filter
Basic Information
Model
JX-DP3-2-80
Unit
set
Category
Disc Filter
Delivery Time
30 Days
Package Size
1276x700x1180 mm
Package Weight
180 KG

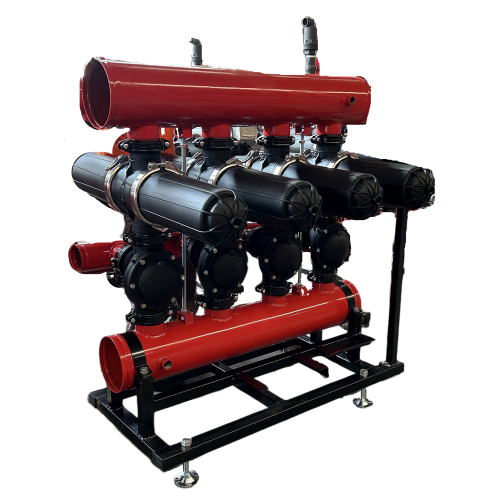

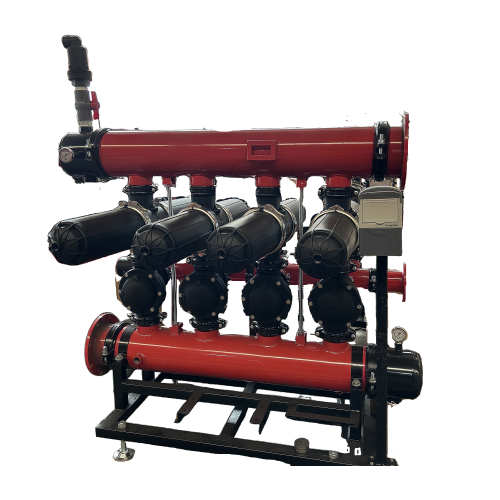

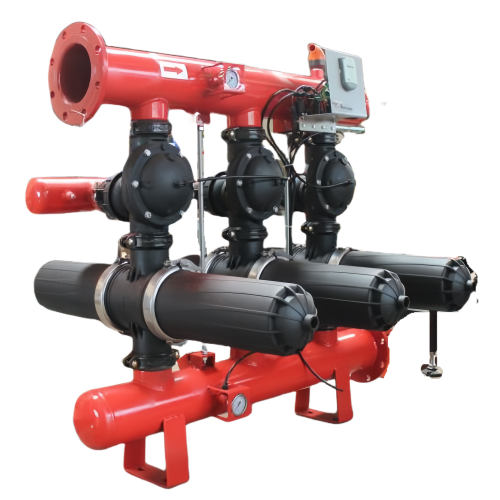

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-DP3-2-80 | — | — |
| Shell Material | PP | — | — |
| Processing Capacity | Refer to the specification in the price list | m3/h | — |
| Working Pressure | 1.0 | Mpa | — |
| Equipment Weight | ~200 | KG | — |
| Installation Dimensions | 1176*600*1082 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Type | Single Filter | — | — |
| Filter Mesh Precision | Refer to the specification in the price list | — | — |
| Filter Mesh Material | PP | — | — |
| Number Of Units | 3 | — | — |
Pipeline Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet Pipe Diameter | DN80 | — | — |
| Outlet Pipe Diameter | DN80 | — | — |
| Drain Pipe | DN50 | — | — |
| Vent Valve | 1" | — | — |
| Disc Aperture | 3 | in | — |
| Pipe Material | Carbon steel powder coating anti-corrosion treatment | — | — |
