260-SS304-Sand Water Separator
Basic Information
Model
JX-GSF-260-SS304
Unit
set
Category
Sand Separator
Delivery Time
30 Days
Package Size
3000x2060x2420 mm
Package Weight
1200 KG

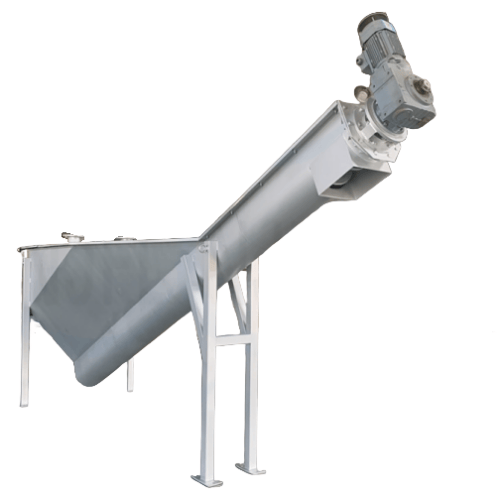

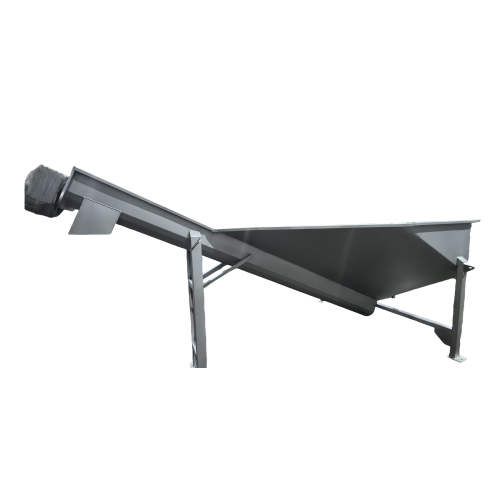

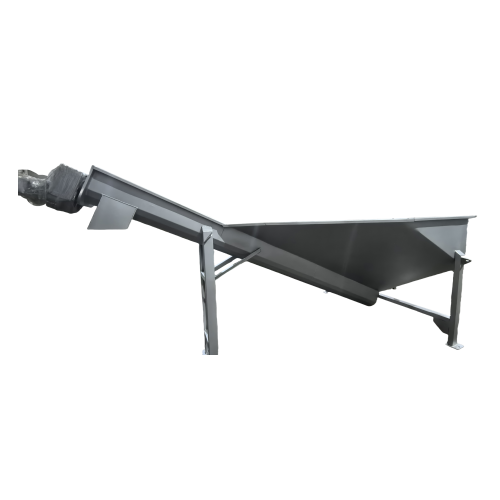

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Type | JX-GSF-260 | — | — |
| Capacity | ~50 | m3/h | — |
| Material | SS304 | — | — |
| Size | See drawing | mm | — |
| Weight | ~1100 | KG | — |
Powe Supply
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | 0.55 | KW | — |
| Power Supply | 380V，3ph，50Hz/Customizable | — | — |
| Insulation Level | F | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Installation Angle | Customizable | — | — |
| Speed | 7.1 | rpm | — |
| Box Volume | 1.25 | m3 | — |
