16m²-Folded Belt Vacuum Drum Filter
Basic Information
Model
JX-GD16/1.7
Unit
set
Category
Folding Belt Vacuum Drum Filter
Delivery Time
30 Days
Package Size
3970x4400x3485 mm
Package Weight
8519 KG

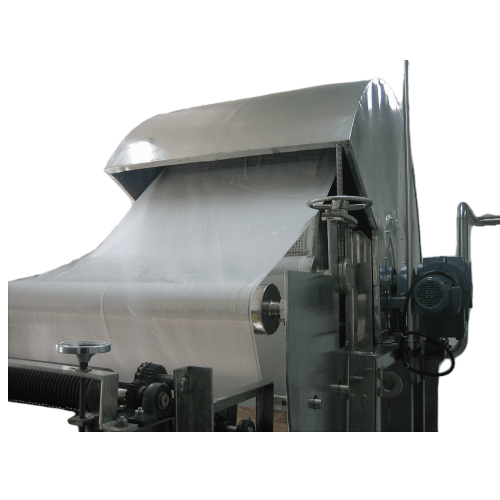

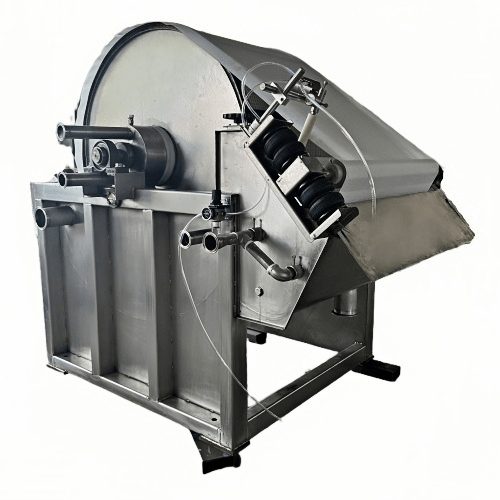

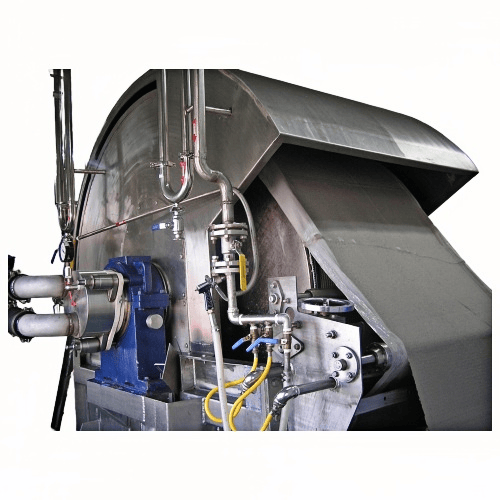

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GD16/1.7 | PCS | — |
| Vacuum Filter | 1 | PCS | — |
| Vacuum Pump | 1 | PCS | SK-9 |
| Gas-Liquid Separator | 1 | PCS | ZPG700-U |
| Electrical Control Cabinet | 1 | PCS | DK-1 |
Drum
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration Area | 16 | ㎡ | — |
| Effective Width of Filtration Surface | 3200 | mm | — |
| Drum Diameter | 1.65 | m | — |
| Drum Rotation Speed | 0.25-1.0 | r/min | — |
| Gas Distributor Material | Polyethylene | — | — |
| Storage Tank | PP | — | — |
| Drum Body | PP | — | — |
| Scraper | Zirconia or 316 stainless steel (contact parts) | — | — |
| Filter Cloth | 1 | — | Chinese brand |
Gas-Liquid Separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 700mm | mm | — |
| Drainage Capacity | 20 | m³/h | — |
| Operating Pressure | ≤-0.09MPa | — | — |
Vacuum Pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | 1 | — | Zirconia or 316 stainless steel (contact parts) |
| Motor Power | 11 | kw | — |
Electrical Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Cabinet | Chinese brand | — | — |
| Reducer | Well-known Chinese brand | — | — |
| Motor | 1.5 | — | Well-known Chinese brand |
