10+250Disc Filter
Basic Information
Model
JX-DP4-10-250
Unit
set
Category
Disc Filter
Delivery Time
30 Days
Package Size
2050x1310x1900 mm
Package Weight
500 KG

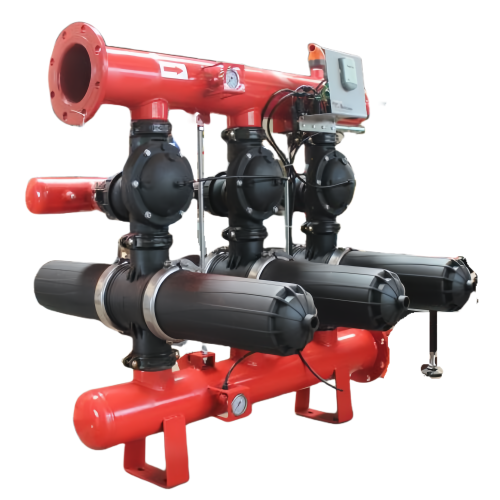

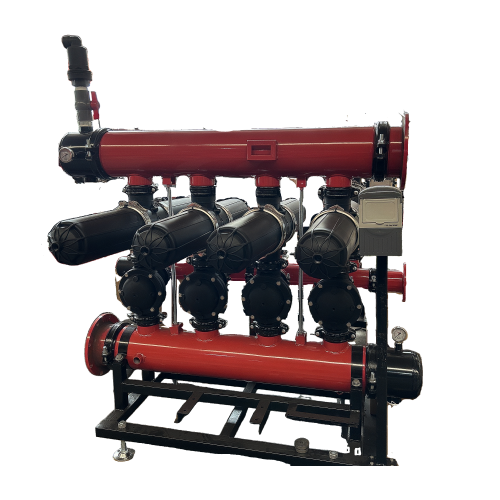

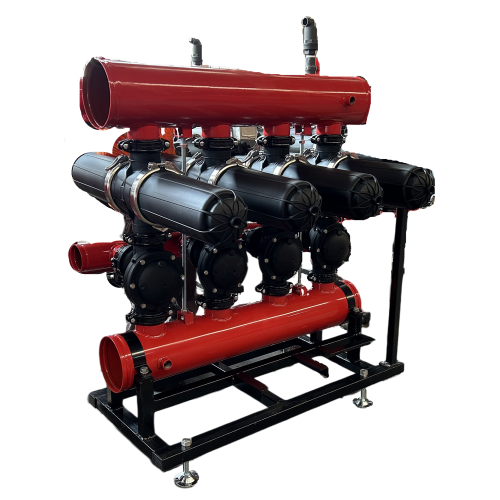

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-DP4-10-250 | — | — |
| Shell Material | PP | — | — |
| Processing Capacity | Refer to the specification in the price list | m3/h | — |
| Working Pressure | 1.0 | Mpa | — |
| Equipment Weight | ~360 | KG | — |
| Installation Dimensions | 1940*1210*1795 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Type | Single Filter in One Housing | — | — |
| Filter Mesh Precision | Refer to the specification in the price list | — | — |
| Filter Mesh Material | PP | — | — |
| Number Of Units | 10 | — | — |
Pipeline Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet Pipe Diameter | DN250 | — | — |
| Outlet Pipe Diameter | DN250 | — | — |
| Drain Pipe | DN80 | — | — |
| Vent Valve | 1" | — | — |
| Disc Aperture | 4 | in | — |
