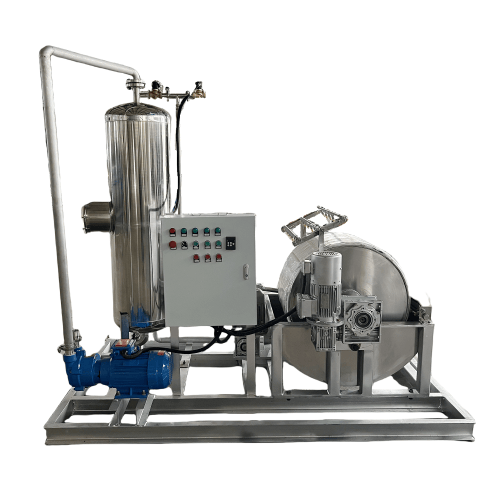

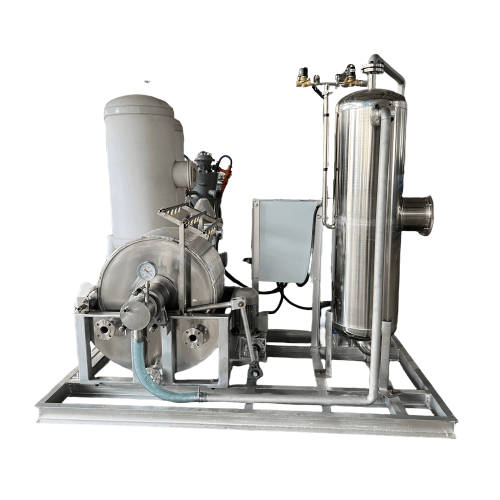

1.35m²-Folded Belt Vacuum Drum Filter
Basic Information
Model
JX-GD1.35/1
Unit
set
Category
Folding Belt Vacuum Drum Filter
Delivery Time
30 Days
Package Size
2800x1200x1850 mm
Package Weight
2400 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GD1.35/1 | PCS | — |
| Vacuum Filter | 1 | PCS | — |
| Vacuum Pump | 1 | PCS | — |
| Gas-Liquid Separator | 1 | PCS | — |
| Electrical Control Cabinet | 1 | PCS | — |
Drum
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration Area | 1.35 | ㎡ | — |
| Effective Width of Filtration Surface | 355 | mm | — |
| Drum Diameter | 1.22 | m | — |
| Drum Rotation Speed | 0.1-1.0 | r/min | 1400 revolutions per minute motor, 6 revolutions per minute reducer |
| Gas Distributor Material | Polyethylene | — | — |
| Storage Tank | SS316L | — | — |
| Drum Body | SS316L | — | — |
| Scraper | PP | — | — |
| Filter Cloth | 1 | — | Polyamide fabric or cotton fabric (300 mesh size) |
Gas-Liquid Separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 310*1000 | mm | — |
| Drainage Capacity | ~7.5 | m³/h | — |
| Operating Pressure | ≤-0.09MPa | — | — |
Vacuum Pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | 130m3/h（Stainless steel vacuum pump） | — | — |
| Inlet/Outlet Vacuum Degree | 29 inches of mercury | — | — |
| Motor Power | kw | — |
Electrical Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|

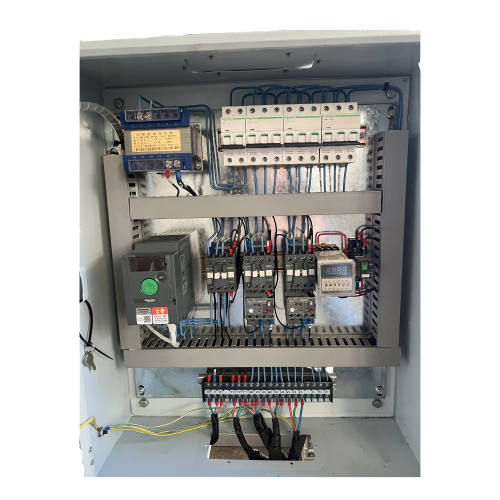

| Control Cabinet | Chinese brand | — | — |
| Reducer | Well-known Chinese brand | — | — |
| Motor | 0.75（Pump-driven motor）、0.55（Blender motor） | — | IP55 |
