SS316-2-Tubular Filter
Basic Information
Model
JX-FHL-2-SS316
Unit
set
Category
Tubular Filter
Delivery Time
30 Days
Package Size
700x650x1890 mm
Package Weight
145 KG

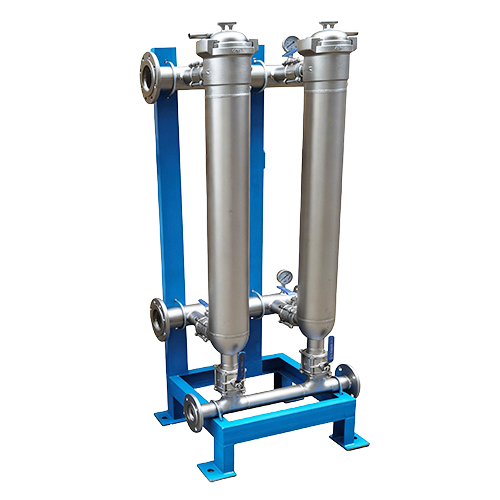

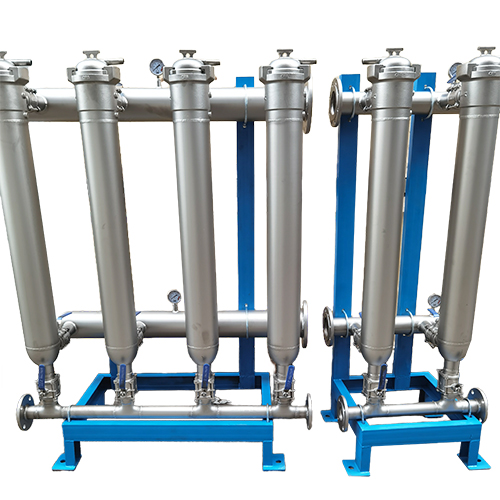

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-FHL-2 | — | — |
| Processing Capacity | Refer to the specification in the price list | m3/h | — |
| Material | SS316 | — | — |
| Hydraulic Loss | <0.01 (Under clean conditions) | Mpa | — |
| Pressure Test | 1.25 | Mpa | — |
| Design Pressure | 1.0 | Mpa | — |
| Operating Temperature | ≤70℃ | ℃ | — |
| Dimensions (LWH) | ~660*540*1788 | mm | — |
| Total Weight | ~80 | kg | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screen Material | SS316 | — | Wedge wire screen |
| Filtration Accuracy | Customizable | um | — |
| Screen Quantity | 2 | pcs | — |
Control Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rated Voltage | 220/50HZ/Customizable | V | — |
| Control System | Siemens PLC control system with 7-inch touch screen | — | — |
| Control Mode | Differential pressure control | — | — |
| Control Method | Pneumatic | — | — |
| Rated Power | KW | — |
Pipeline Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN50 | — | See drawing |
| Outlet | DN50 | — | See drawing |
| Drain Port | DN50 | — | See drawing |
| Flange Connection Standard | ANSI/DIN、SO/RF | — | See drawing |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Bolt Material | 304 Stainless Steel, A2-70 | — | — |
| Solenoid Valve | AIRTAC or equivalent | — | — |
| Ball Valve | Shanghai Zhaosen brand or equivalent | — | — |
| Differential Pressure Transmitter | Shanghai brand/Legend or equivalent | — | — |
