SS316-1000-Channel Drum Screens
Basic Information
Model
JXN-Z1000-316
Unit
set
Category
Channel Microfiltration Machine
Delivery Time
30 Days
Package Size
4270x1500x1350 mm
Package Weight
1400 KG

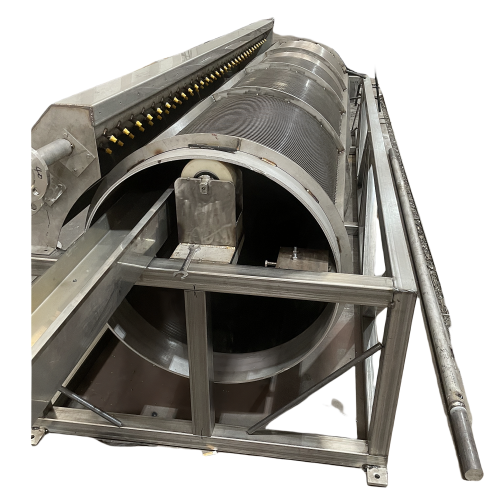

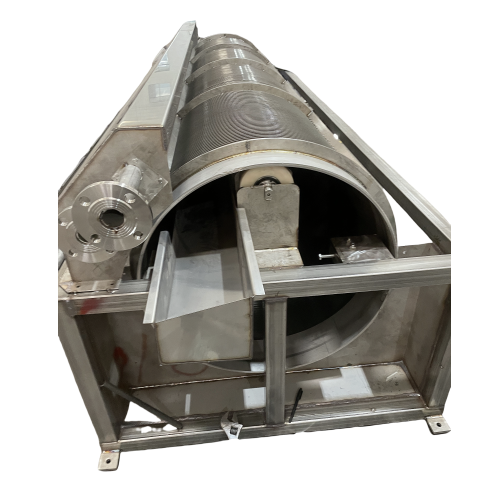

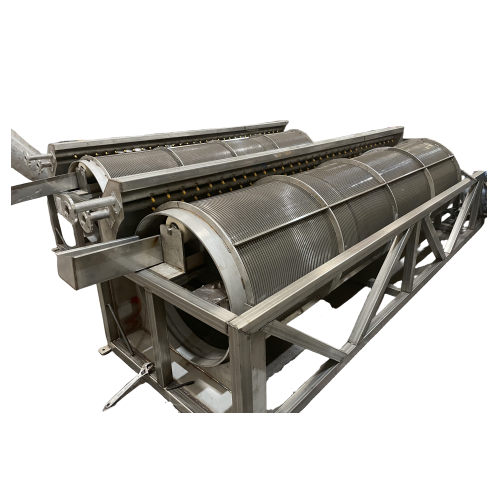

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JXN-Z1000 | — | — |
| Housing Material | SS316 | — | — |
| Flow Rate | Refer to the specification in the price list | m3/h | — |
| Channel Width | 1600 | mm | — |
| Equipment Width | 700 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rotating Screen Drum | Φ1000*3000 | — | — |
| Screen Drum Speed | ≈12 | r/min | — |
| Screen Drum Slot Size | Customizable | mm | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flushing Port | DN40 | — | — |
| Drain Port | DN50 | — | — |
| Drive Motor | 2.2 | KW | — |
