SS316-1.5t-Integrated Crushing & Press Machine
Basic Information
Model
JX-ZDPLZ-1.5
Unit
set
Category
Crushing Type Juice Extractor
Delivery Time
30 Days
Package Size
2200x750x2200 mm
Package Weight
445 KG

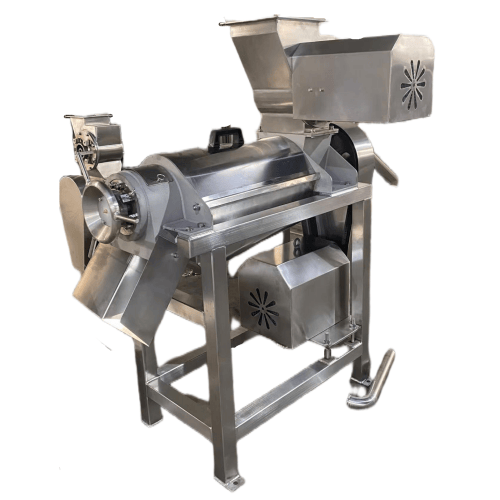

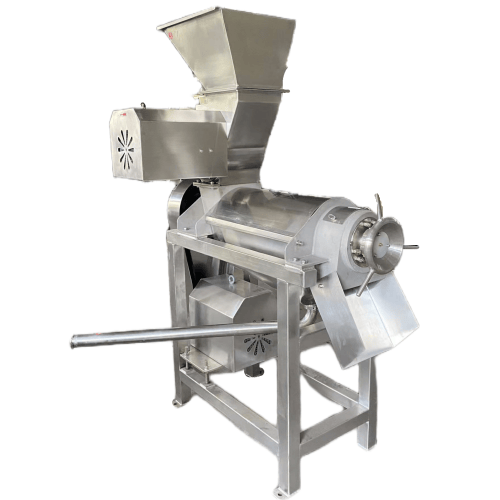

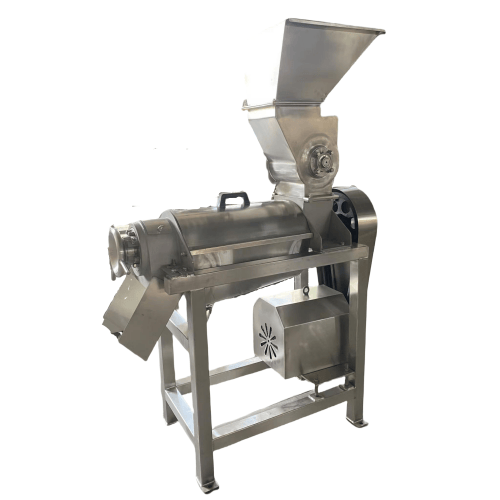

Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | 1000-1500 | Kg/h | — |
| Material | SS316 | — | — |
| Equipment Weight | ~360 | KG | — |
| Overall Dimensions | 1450*580*1780 | mm | — |
进料系统
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Gravity feeding | — | — |
Crusher
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Crusher Rotation Speed | 1000 | rpm/min | — |
| Material | SS316 | — | Crusher Rotor Diameter:190 |
压榨系统
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Main Body Material | SS316 | — | — |
| Screw Diameter | 175 | mm | — |
| Screw Rotation Speed | 400 | rpm/min | — |
过滤部分
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS316 | — | — |
| Filtration Method | Customizable | — | — |
| Filtration Precision | Customizable | — | — |
Motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Juicer Power | 5.5 | KW | — |
| Crusher Power | 2.2 | KW | — |
| Power Supply | Customizable | — | — |
| Motor Brand | Siemens/Bede | — | — |
Feeding System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | — | — |
Pressing System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Main Body Material | — | — | |
| Screw Diameter | mm | — | |
| Screw Rotation Speed | rpm/min | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | — | — | |
| Filtration Method | — | — | |
| Filtration Precision | — | — |
