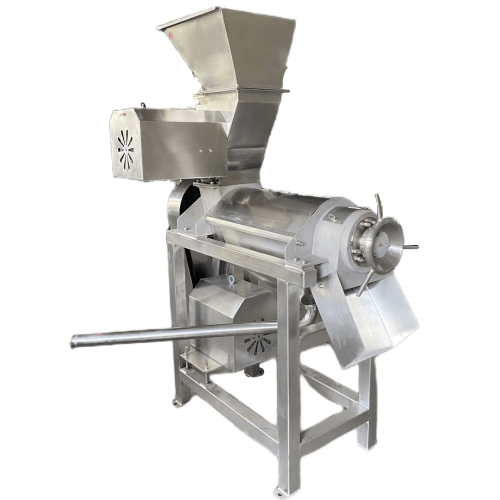

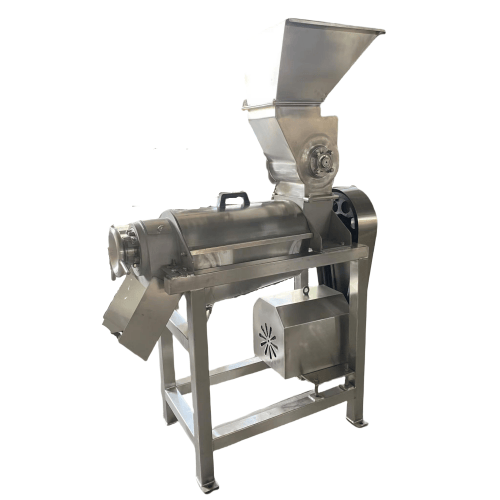

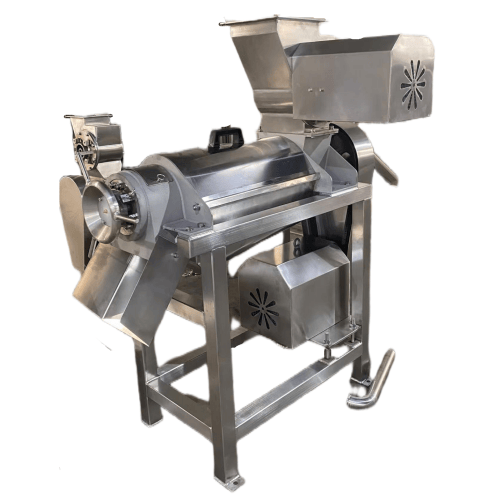

SS316-0.5t(S)-Integrated Crushing & Press Machine
Basic Information
Model
JX-ZDPLZ-0.5S-316
Unit
set
Category
Crushing Type Juice Extractor
Delivery Time
30 Days
Package Size
1270x560x1480 mm
Package Weight
230 KG
Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | 100-300 | Kg/h | — |
| Material | SS316 | — | — |
| Equipment Weight | ~115 | KG | — |
| Overall Dimensions | 760*330*1400 | mm | — |
进料系统
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Gravity feeding | — | — |
Crusher
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Crusher Rotation Speed | 1000 | rpm/min | — |
| Material | SS316 | — | — |
压榨系统
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Main Body Material | SS316 | — | — |
| Screw Diameter | 88 | mm | — |
| Screw Rotation Speed | 400 | rpm/min | — |
过滤部分
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS316 | — | — |
| Filtration Method | Customizable | — | — |
| Filtration Precision | Refer to the specification in the price list | — | — |
Motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Juicer Power | 1.5 | KW | — |
| Crusher Power | 1.5 | KW | — |
| Power Supply | Customizable | — | — |
| Motor Brand | Siemens/Bede | — | — |
Feeding System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | — | — |
Pressing System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Main Body Material | — | — | |
| Screw Diameter | mm | — | |
| Screw Rotation Speed | rpm/min | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | — | — | |
| Filtration Method | — | — | |
| Filtration Precision | — | — |
