SS316-0.5t(L)-Fruit-Screw Press Type Solid Liquid Separator
Basic Information
Model
JX-ZDLZ-0.5BIG
Unit
set
Category
Screw Type Fruit Juice Extractor
Delivery Time
30 Days
Package Size
1000x500x1000 mm
Package Weight
125 KG

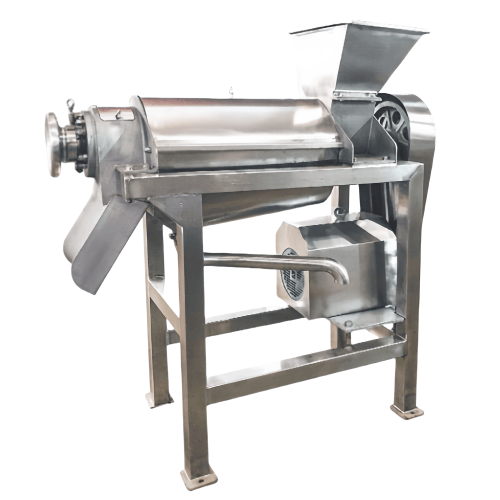

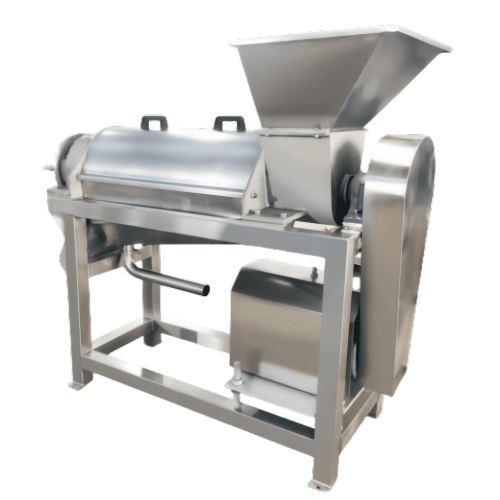

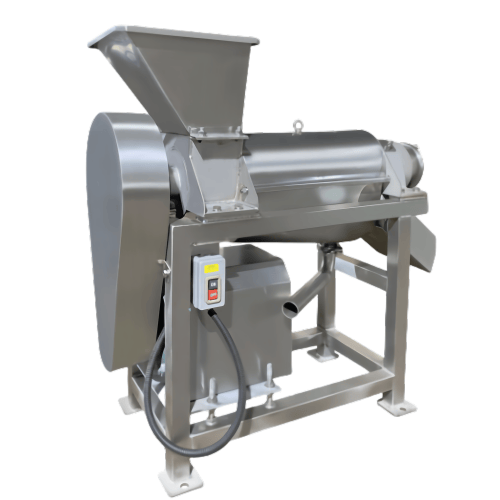

Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | 200-500 | Kg/h | — |
| Main Body Material | SS316 | — | — |
| Installation Dimensions （L×W×H） | 890*400*900 | mm | — |
Feeding Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Gravity feeding | — | — |
Screw Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Main Body Material | SS316 | — | — |
| Screw Diameter | 128 | mm | — |
| Screw Rotation Speed | 400 | rpm/min | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS316 | — | — |
| Filtration Method | Wedge-shaped mesh, a combination of perforated mesh and woven mesh | — | — |
| Filtration Precision | Refer to the specification in the price list | mm | — |
Separation & Collection Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Collection Trough | NO | — | — |
Drive System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Power | 3 | KW | — |
| Motor Brand | Siemens/Bede | — | — |
| Power Supply | Customizable | — | — |
Price
$4070
per set
