SS304-Z1200-Channel Drum Screens
Basic Information
Model
JXN-Z1200*3000-304
Unit
set
Category
Channel Microfiltration Machine
Delivery Time
30 Days
Package Size
3900x1600x2500 mm
Package Weight
1200 KG

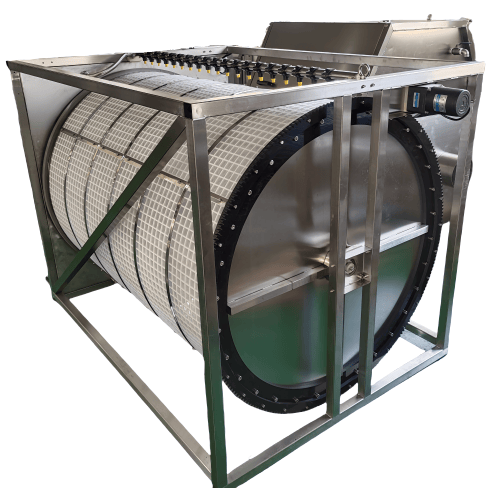

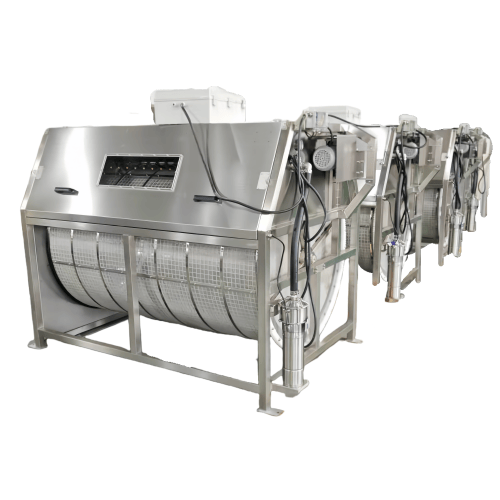

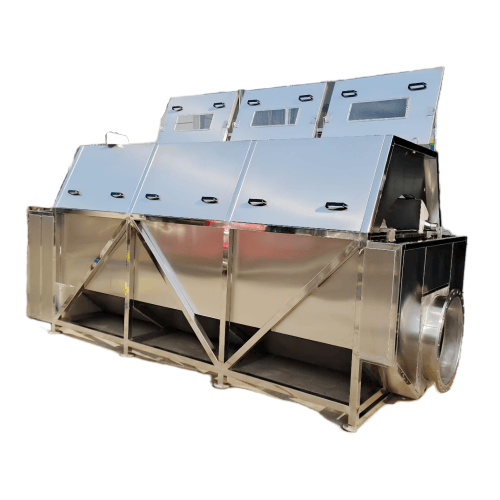

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JXN-Z1200 | — | — |
| Housing Material | SS304 | — | — |
| Flow Rate | Refer to the specification in the price list | m3/h | — |
| Channel Width | 1500 | mm | — |
| Equipment Width | 1200 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rotating Screen Drum | Ф1200×3000mm | — | — |
| Screen Drum Speed | 8-10 | r/min | — |
| Screen Drum Slot Size | Customized | mm | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flushing Port | Channel-type | — | — |
| Drain Port | Channel-type | — | — |
| Drive Motor | 2.2 | KW | — |
