SS304-8"-Hydraulic Self-cleaning Filter
Basic Information
Model
JX-SN8
Unit
set
Category
Hydraulic Self Cleaning Filter
Delivery Time
30 Days
Package Size
2600x600x450 mm
Package Weight
505 KG

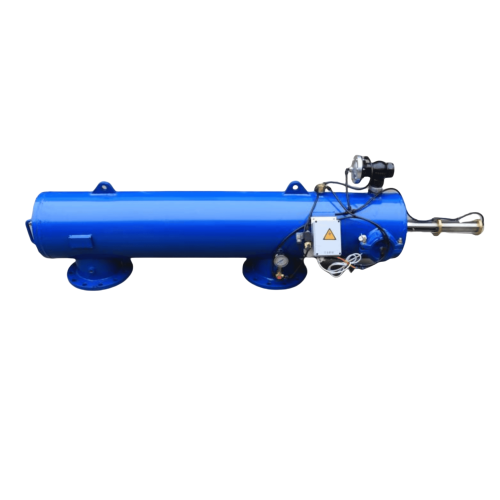

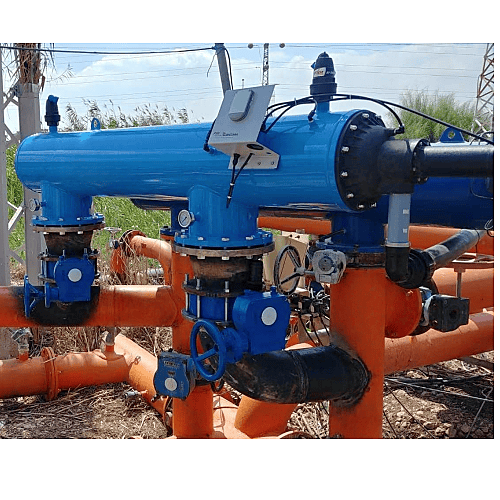

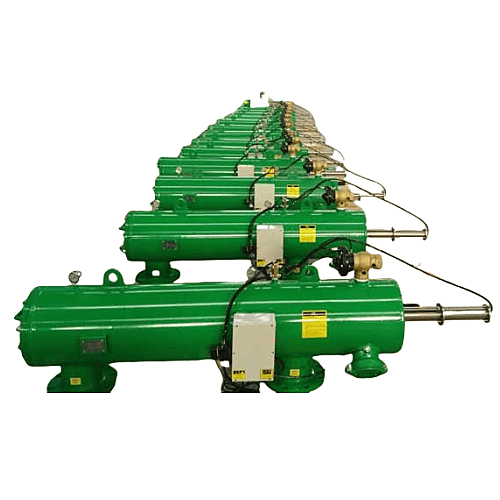

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Treatment Capacity | Refer to the specification in the price list | Kg/h | — |
| Housing Material | SS304 | — | — |
| Inlet | DN200（8“） | — | — |
| Outlet | DN200（8“） | — | — |
| Design Pressure | 1.0 | Mpa | — |
| Working Pressure | 0.2-0.6 | Mpa | — |
| Installation Size | 2498*500*350 | mm | — |
Filtration System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Screen Material | SS304 | — | — |
| Filter Screen Type | Perforated Screen+Polyurethane mesh | — | — |
| Filtration Degree | Refer to the specification in the price list | mm | — |
Cleaning System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Suction Nozzle | SS304/PP/PE | — | Customizable |
| Drain Valve | reinforced polyamide | — | Customizable |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Differential pressure, time, manual | — | — |
