SS304-6"-Hydraulic Self-cleaning Filter
Basic Information
Model
JX-SN6
Unit
set
Category
Hydraulic Self Cleaning Filter
Delivery Time
30 Days
Package Size
2200x400x700 mm
Package Weight
435 KG

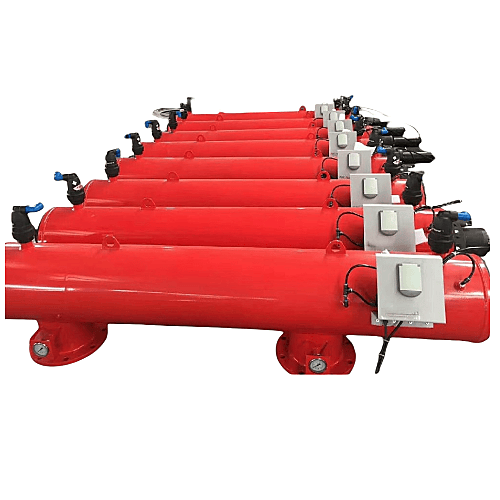

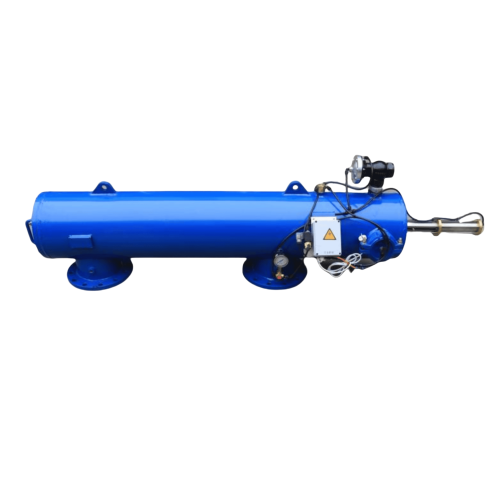

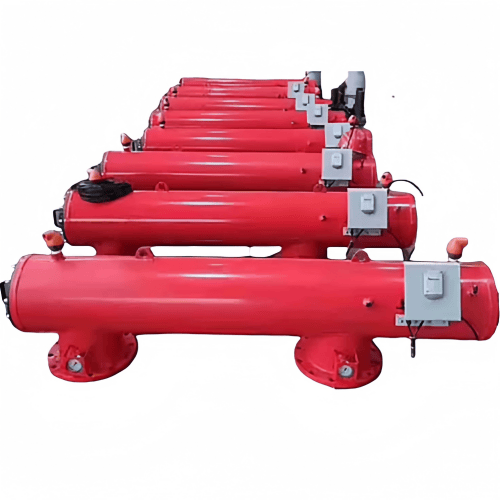

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Treatment Capacity | Refer to the specification in the price list | Kg/h | — |
| Housing Material | SS304 | — | — |
| Inlet | DN150 | — | — |
| Outlet | DN150 | — | — |
| Design Pressure | 1.0 | Mpa | — |
| Working Pressure | 0.2-0.8 | Mpa | — |
| Installation Size | ~2110*300*600 | mm | — |
Filtration System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Screen Material | SS304 | — | — |
| Filter Screen Type | Perforated Screen+Polyurethane mesh | — | — |
| Filtration Degree | Refer to the specification in the price list | mm | — |
Cleaning System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Suction Nozzle | SS304/PP/PE | — | Customizable |
| Drain Valve | SS304 | — | Customizable |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Differential pressure, time, manual | — | — |
