SS304-6-Duplex Bag Filter Housing
Basic Information
Model
JX-MBFH-6-SS304
Unit
set
Category
6-Bag Filter Housing
Delivery Time
30 Days
Package Size
1750x780x1900 mm
Package Weight
640 KG

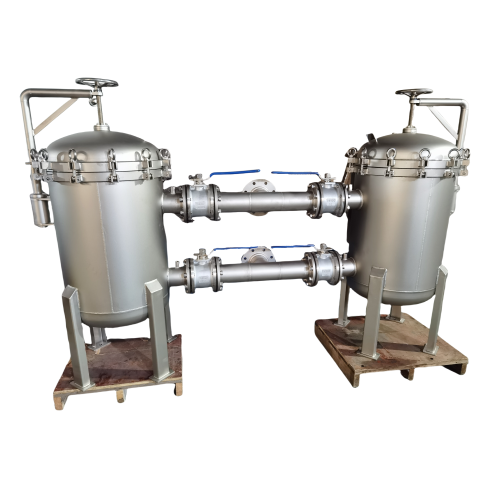

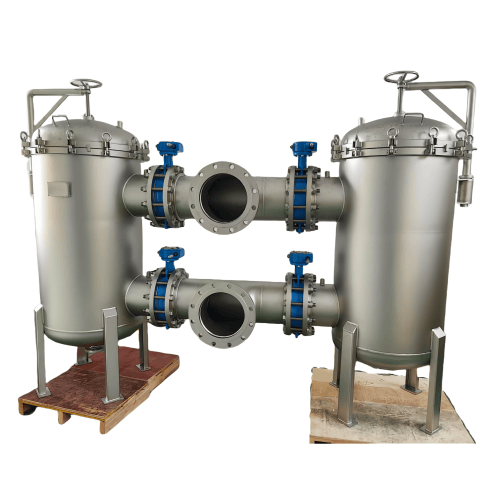

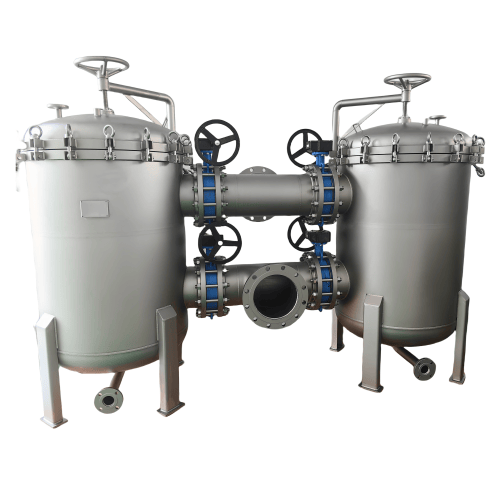

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-MBFH-6 | — | — |
| Filtration Rating | Refer to the specification in the price list | — | — |
| Max. Working Pressure | 1.0 | — | — |
| Operating Temperature | 90 | °C | — |
Structural Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Bag Material | Polyester (PET),Polypropylene (PP), Nylon (PA), PTFE, Acid/Alkali/High-Temp Options | — | — |
| Sealing Material | Nitrile rubber / Fluoro rubber | — | Other Requirements Are Optional |
| Filter Bag Size | 180x810 | — | — |
| Connection Type | RF | — | See Drawing |
| Lid Opening Method | Swing Arms | — | — |
| Surface Treatment | POLISHED、EPOXY ＋ POLYURETHANE | — | Customer Optional |
| Housing Material | SS304 | — | — |
Performance Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Pressure Drop | Within 0.1bar | MPa | — |
| Filtration Efficiency | 90% | — | — |
| Cleaning Method | Manual cleaning | — | — |
