SS304-48-8-Shallow Sand Filter
Package Size：2-5200x1263x2450
Basic Information
Model
JX-SL48-8-SS304
Unit
set
Category
Shallow Sand Filter
Delivery Time
30 Days
Package Size
5200x1263x2450 mm
Package Weight
3800 KG

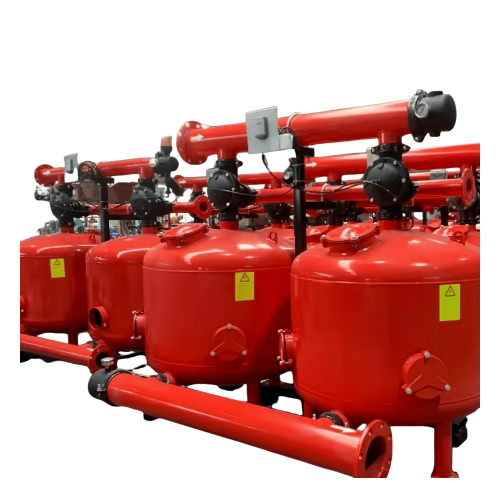

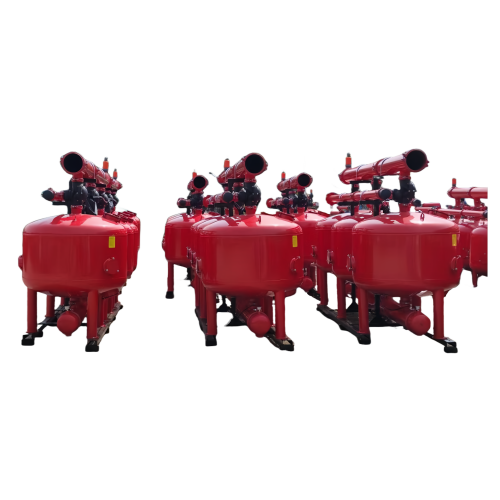

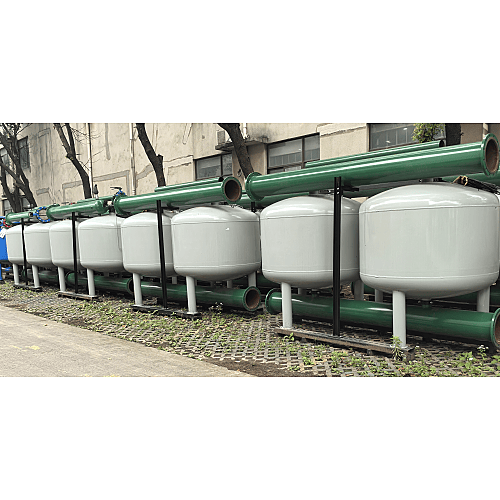

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-SL48-8 | — | — |
| Total Capacity | ~300-360 | m3/h | — |
| Material | SS304 | — | — |
| Working Pressure | 0.6 | Mpa | — |
| Design Pressure | 1.0 | Mpa | — |
| Design Temperature | < 70°C | ℃ | — |
| Overall Dimensions (LWH) | ~5200*2526*2441 | mm | — |
| Total Weight | ~3500 | kg | — |
Single Tank
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Single Tank Capacity | 45 | m3/h | — |
| Wall Thickness | 6 | mm | — |
| Filter Tank Diameter | 1200 | mm | — |
| Single Net Weight | 400 | kg | — |
Pipe Size
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet/Outlet Pipes | DN200 | — | 2 Pcs |
| Drain Pipes | DN100 | — | 2 Pcs |
| Flange Connection Standard | See drawing | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Method | full-automatic | — | — |
