SS304-3t-Integrated Crushing & Press Machine
Basic Information
Model
JX-ZDPLZ-3
Unit
set
Category
Crushing Type Juice Extractor
Delivery Time
30 Days
Package Size
2200x750x2200 mm
Package Weight
1000 KG

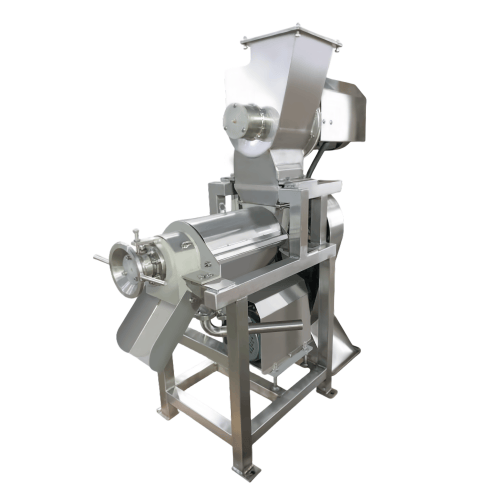

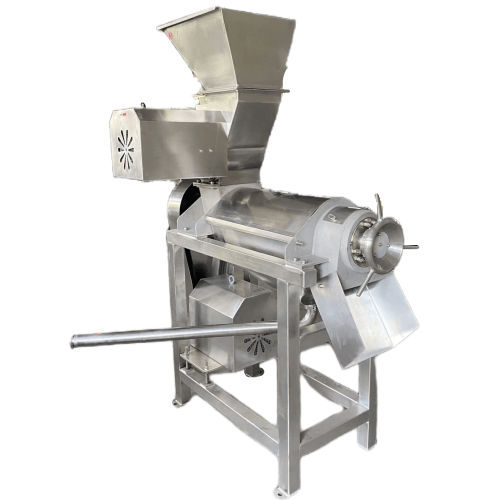

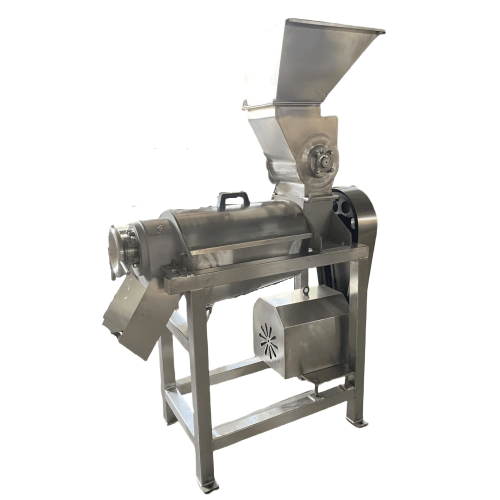

Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | 1500-3000 | Kg/h | — |
| Material | SS304 | — | — |
| Equipment Weight | ~870 | KG | — |
| Overall Dimensions | 2100*660*2100 | mm | — |
进料系统
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Gravity feeding | — | — |
Crusher
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Crusher Rotation Speed | 960 | rpm/min | — |
| Material | SS304 | — | Crusher Rotor Diameter:220 |
压榨系统
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Main Body Material | SS304 | — | — |
| Screw Diameter | 276 | mm | — |
| Screw Rotation Speed | 400 | rpm/min | — |
过滤部分
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS304 | — | — |
| Filtration Method | Customizable | — | — |
| Filtration Precision | Customizable | — | — |
Motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Juicer Power | 15 | KW | — |
| Crusher Power | 4 | KW | — |
| Power Supply | Customizable | — | — |
| Motor Brand | Siemens/Bede | — | — |
