SS304-3t-Fruit-Screw Press Type Solid Liquid Separator
Basic Information
Model
JX-ZDLZ-3
Unit
set
Category
Screw Type Fruit Juice Extractor
Delivery Time
30 Days
Package Size
2050x950x1800 mm
Package Weight
920 KG

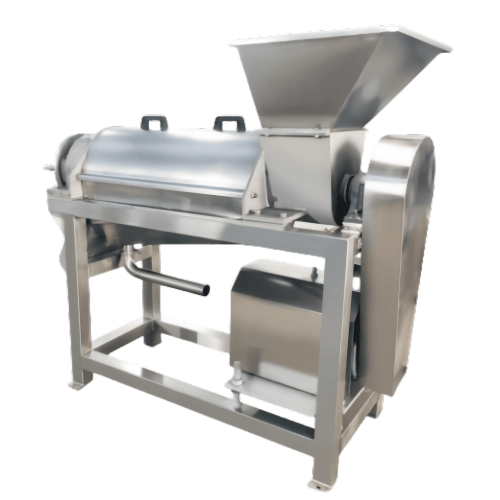

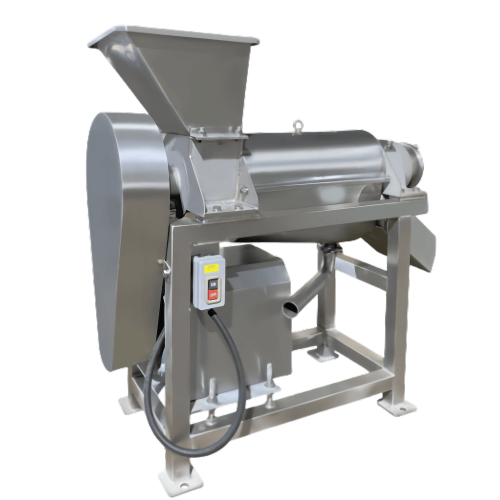

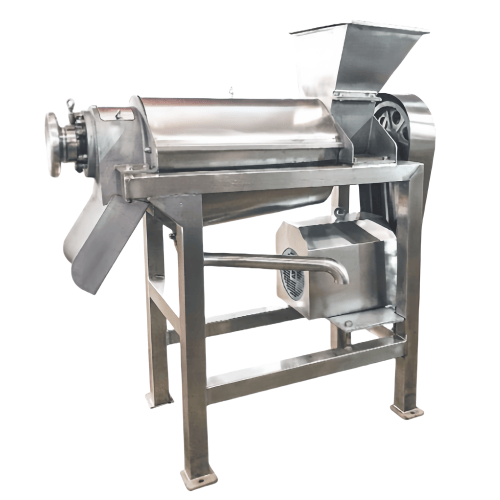

Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | 1500-3000 | Kg/h | — |
| Main Body Material | SS304 | — | — |
| Installation Dimensions （L×W×H） | 1950*835*1680 | mm | — |
Feeding Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Gravity feeding | — | — |
Screw Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Main Body Material | SS304 | — | — |
| Screw Diameter | 276 | mm | — |
| Screw Rotation Speed | 400 | rpm/min | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS304 | — | — |
| Filtration Method | Wedge-shaped mesh, a combination of perforated mesh and woven mesh | — | (Optional) |
| Filtration Precision | Refer to the specification in the price list | mm | — |
Separation & Collection Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Collection Trough | NO | — | — |
Drive System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Power | 15 | KW | — |
| Motor Brand | Siemens/Bede | — | — |
| Power Supply | 380V/50HZ | — | Customizable |
