SS304-32-Duplex Bag Filter Housing
Basic Information
Model
JX-MBFH-32
Unit
set
Category
32-Bag Filter Housing
Delivery Time
30 Days
Package Size
4750x1700x2900 mm
Package Weight
2500 KG

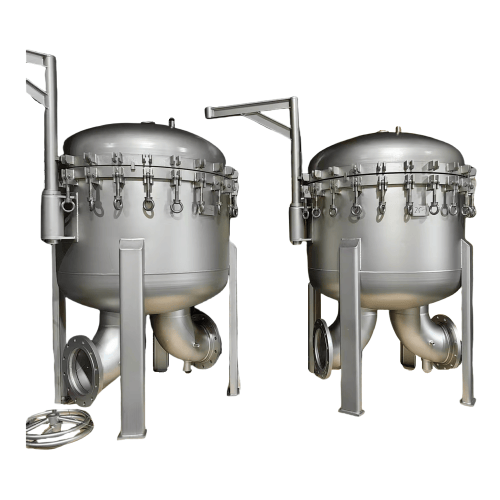

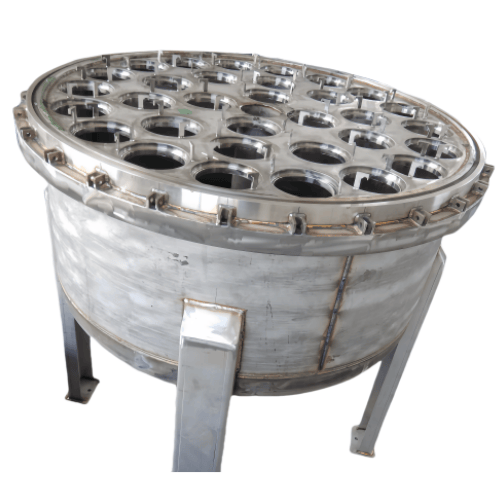

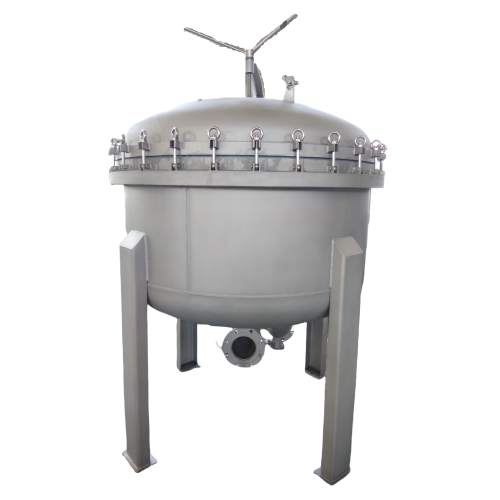

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-MBFH-32 | — | — |
| Filtration Rating | Refer to the specification in the price list | — | — |
| Max. Working Pressure | 1.0 | — | — |
| Operating Temperature | 80 | °C | — |
Structural Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Housing Material | SS304 | — | — |
| Filter Bag Material | PP/ABS/PE | — | Customer optional |
| Sealing Material | Nitrile Rubber / Fluoro Rubber | — | Other requirements are optional |
| Filter Bag Size | 180x810 | — | — |
| Connection Type | RF | — | — |
| Lid Opening Method | Swing Arms | — | — |
| Surface Treatment | Polished、Sansing | — | Customer Optional |
Performance Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Pressure Drop | Within 0.1bar | MPa | — |
| Filtration Efficiency | 90% | — | — |
| Cleaning Method | Manual cleaning | — | — |
