SS304-3"-Hydraulic Self-cleaning Filter
Basic Information
Model
JX-SN3
Unit
set
Category
Hydraulic Self Cleaning Filter
Delivery Time
30 Days
Package Size
650x500x1200 mm
Package Weight
140 KG

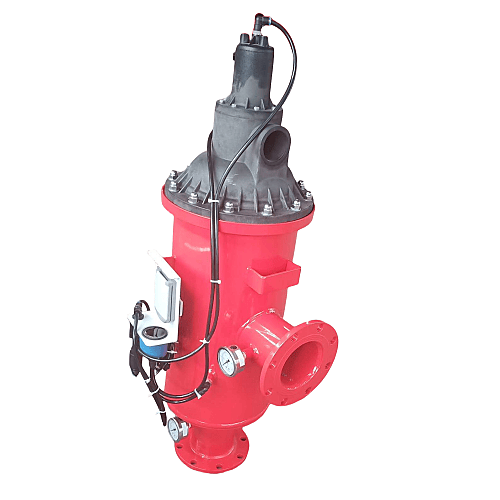

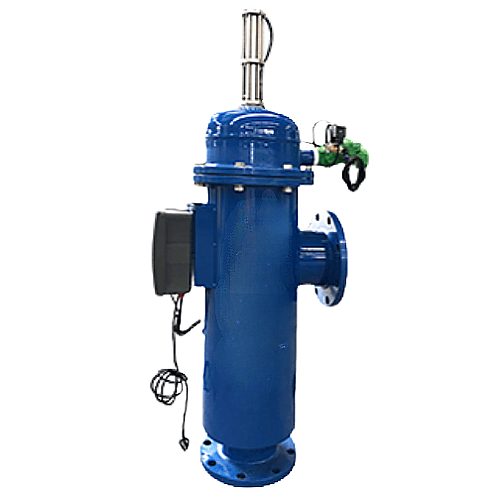

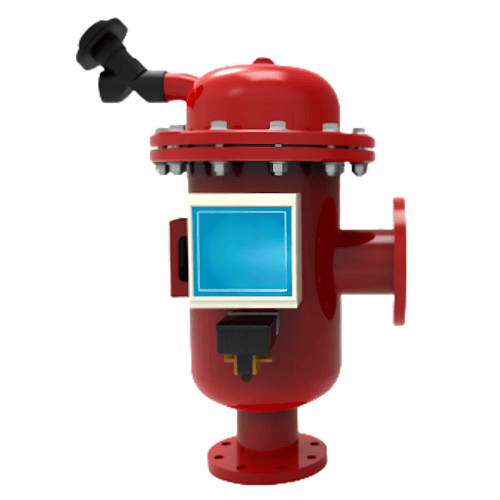

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Treatment Capacity | 50 | m3/h | — |
| Housing Material | SS304 | — | — |
| Inlet | DN80 | — | — |
| Outlet | DN80 | — | — |
| Design Pressure | 1.0 | Mpa | — |
| Working Pressure | 0.6 | Mpa | — |
| Installation Size | ~410*400*1060 | mm | — |
Filtration System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Screen Material | Fabricated in accordance with client's request | — | — |
| Filter Screen Type | Perforated Screen+Polyurethane mesh | — | — |
| Filtration Degree | Customizable | mm | — |
Cleaning System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Suction Nozzle | Customizable | — | — |
| Drain Valve | SS304/SS316 | — | Customizable |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Pressure difference, Time, Manual | — | — |
