SS304-120-Screw Press Type Solid Liquid Separator
Basic Information
Model
JXYZ-120
Unit
set
Category
Screw Press Type Solid Liquid Separator
Delivery Time
30 Days
Package Size
2200x750x2350 mm
Package Weight
462 KG

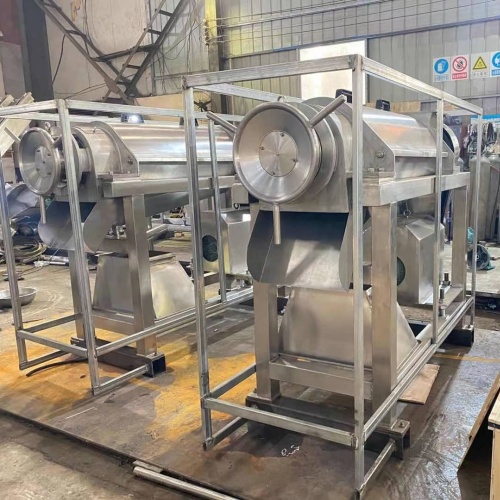

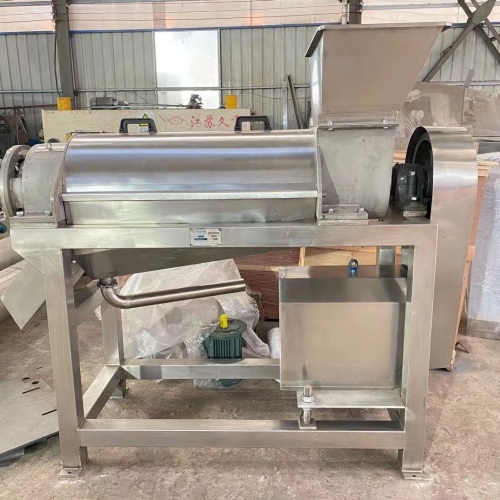

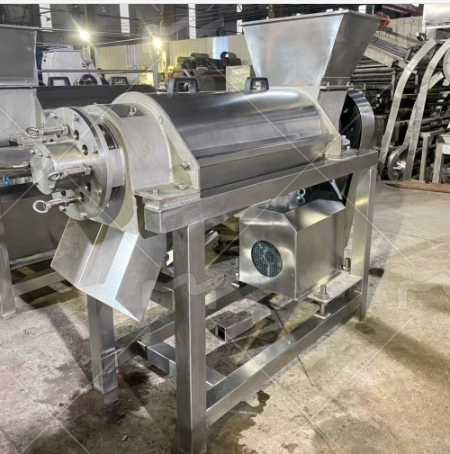

Product Images
Technical Specifications
Main
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Treatment capacity | 100-500 | kg/h | — |
| Crusher motor power | 1.5 | kw | — |
| Juice Dewatering motor power | 4 | kw | — |
| Spiral diameter | 128 | mm | — |
| Material | Parts contacting with liquids: SS304 | — | — |
| Rotation speed of spiral | 400 | RPM | — |
| Rotation speed of Shredder | 1000 | RPM | — |
| Voltage | 380v or as per customer’s requirement | — | — |
| Equipment weight | 250 | kg | — |
| Equipment size | 2100*660*2250 | mm | — |
