NB Water Pump-NB40-160/172
Basic Information
Model
NB 40-160/172 AAF2BESBAQEMW1
Unit
set
Category
Grundfos Water Pump
Delivery Time
30 Days
Package Size
890x330x260 mm
Package Weight
120 KG

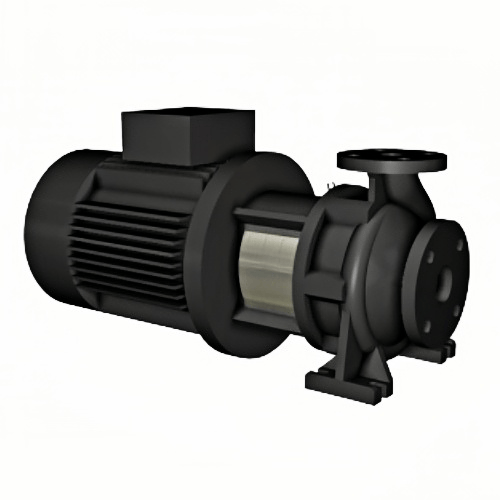

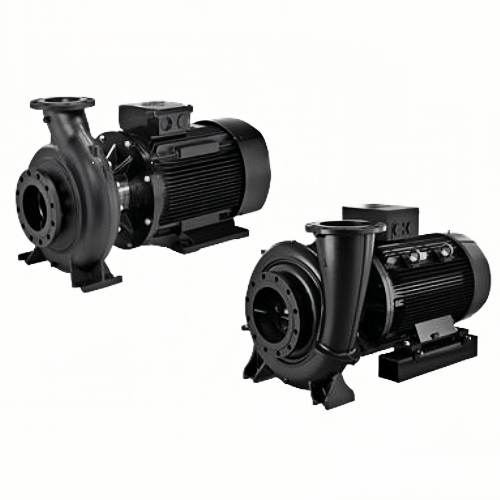

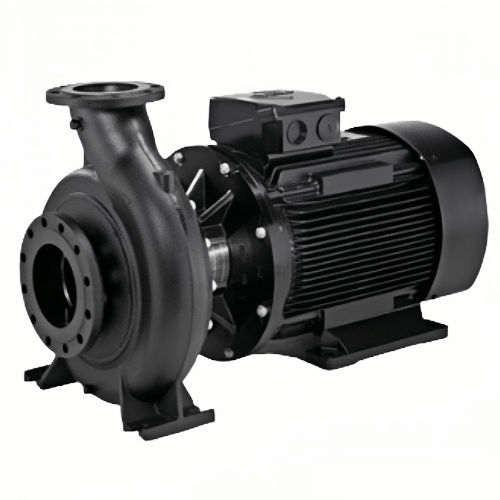

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | NB 40-160/172 | — | — |
| Number Of Impellers/Stages | Φ172（Impeller nominal speed：160） | — | H=37m |
| Rated Flow Rate | 50 | m³/h | — |
| Liquid Temperature | 0~120 | ℃ | — |
| Material | stainless steel | — | — |
Connection
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Maximum Pump Efficiency | 78 | % | — |
| Maximum Pressure | 16 | bar | — |
| Flange | DN65 | — | — |
| Connector | / | — | — |
Power supply
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Frequency | 50 | HZ | — |
| Ingress Protection Rating | IP55 | — | — |
| Insulation Class | F | — | — |
| Motor Power Rating | 7.5 | KW | 3 x 380-415D/660-690Y V |
