NB Water Pump-NB32-160/171
Basic Information
Model
NB 32-160/171AAF2BESBAQELW1
Unit
set
Category
Grundfos Water Pump
Delivery Time
30 Days
Package Size
880x340x400 mm
Package Weight
100 KG

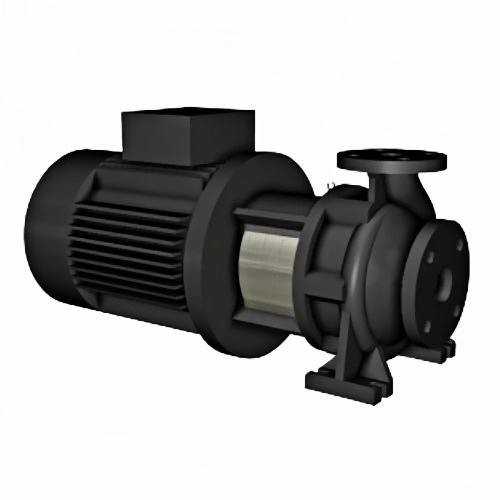

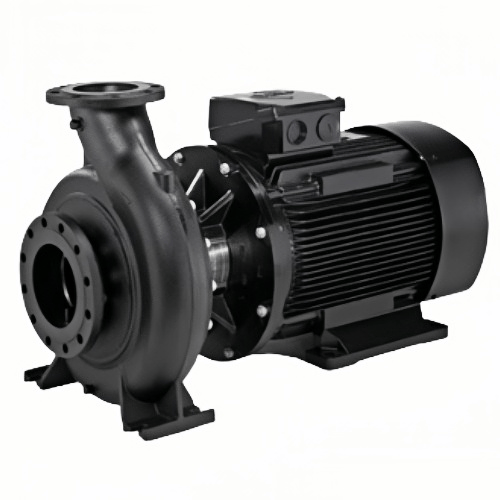

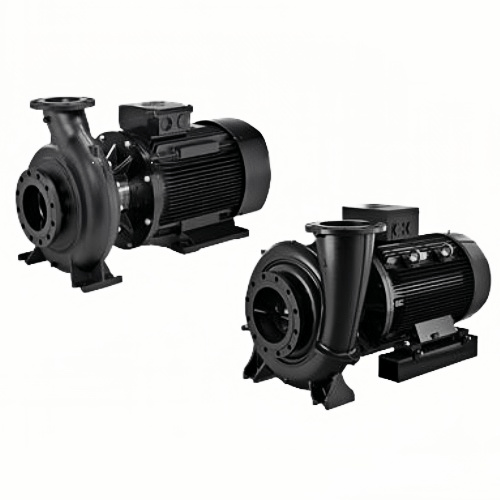

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | NB 32-160/171 | — | — |
| Number Of Impellers/Stages | Φ171（Nominal impeller diameter：160） | — | — |
| Rated Flow Rate | 25 | m³/h | H=37.09m |
| Liquid Temperature | 0~120 | ℃ | — |
| Material | stainless steel | — | — |
Connection
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Maximum Pump Efficiency | ~89 | % | — |
| Maximum Pressure | 16 | bar | — |
| Flange | DN55 | — | — |
| Connector | / | — | — |
Power supply
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Frequency | 50 | HZ | — |
| Ingress Protection Rating | IP55 | — | — |
| Insulation Class | F | — | — |
| Motor Power Rating | 5.5 | KW | 3 x 380-420D/660-725Y V |
