CR Water Pump-32-10
Basic Information
Model
CRN32-10-2 A-F-A-E-HQQE
Unit
set
Category
Grundfos Water Pump
Delivery Time
30 Days
Package Size
890x330x260 mm
Package Weight
90 KG

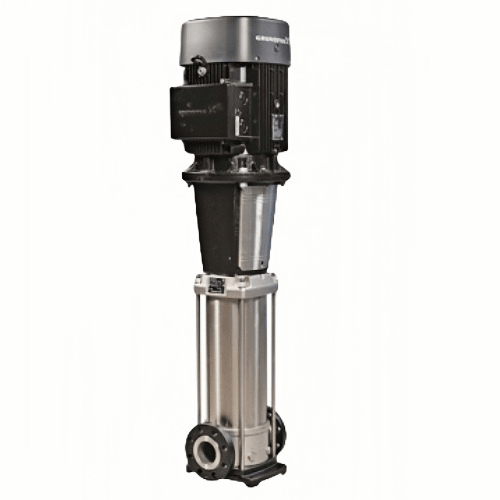

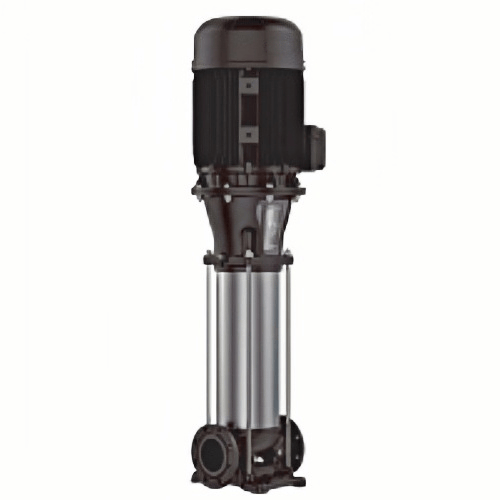

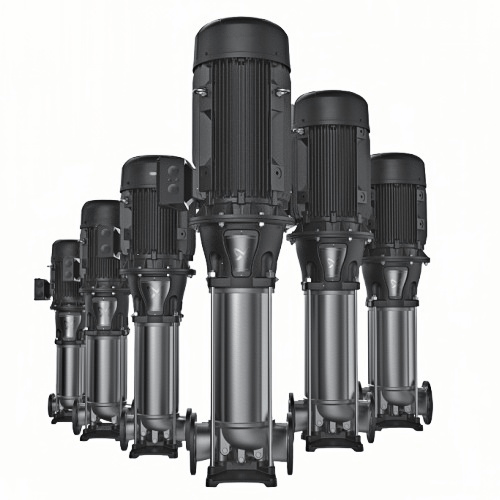

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | CR-32 | — | — |
| Number Of Impellers/Stages | 10 | — | — |
| Rated Flow Rate | 32 | m³/h | — |
| Liquid Temperature | -40~180 | ℃ | — |
| Material | stainless steel | — | — |
Connection
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Maximum Pump Efficiency | 78 | % | — |
| Maximum Pressure | 28 | bar | — |
| Flange | DN65 | — | — |
| Connector | DIN | — | — |
Power supply
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Frequency | 60 | HZ | — |
| Ingress Protection Rating | IP55 | — | — |
| Insulation Class | F | — | — |
| Motor Power Rating | 1.5-30 | KW | 3x440-480DV |
