Carbon Steel-12"-Hydraulic Self-cleaning Filter
Basic Information
Model
JX-SN12
Unit
set
Category
Hydraulic Self Cleaning Filter
Delivery Time
30 Days
Package Size
3500x700x800 mm
Package Weight
450 KG

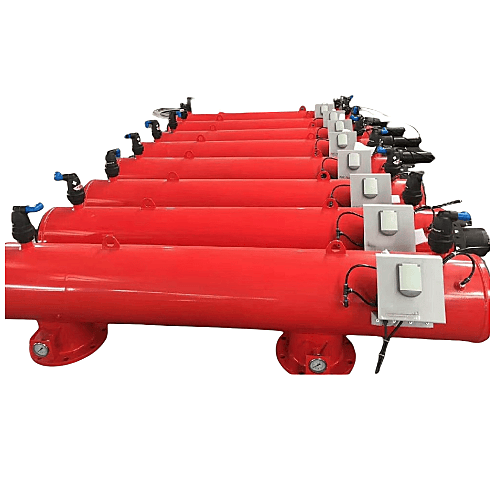

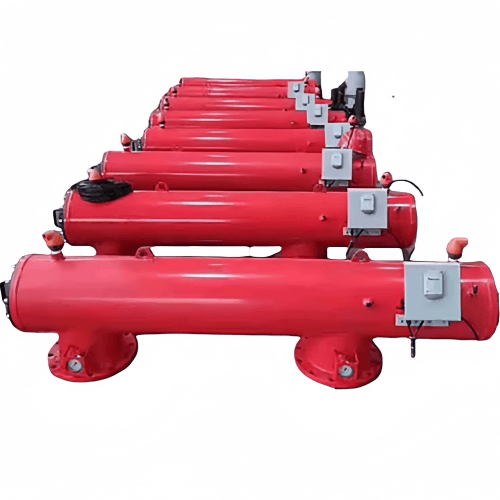

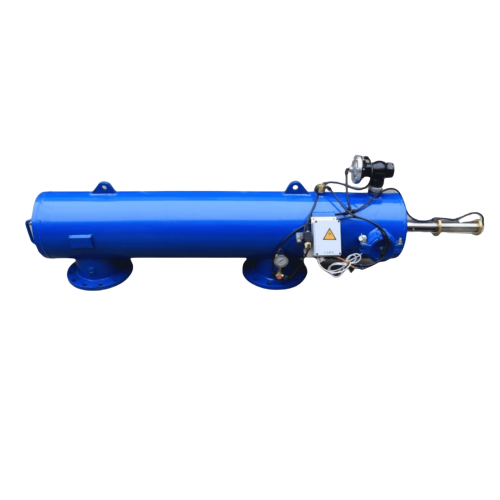

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Treatment Capacity | Refer to the specification in the price list | Kg/h | — |
| Housing Material | Carbon steel | — | — |
| Inlet | DN300 | — | — |
| Outlet | DN300 | — | — |
| Design Pressure | 1.0 | Mpa | — |
| Working Pressure | 0.5-0.7 | Mpa | — |
| Installation Size | See drawing | mm | — |
Filtration System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Screen Material | See drawing | — | — |
| Filter Screen Type | Perforated Screen+Polyurethane mesh | — | — |
| Filtration Degree | Customizable | mm | — |
Cleaning System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Suction Nozzle | SS304/PP/PE | — | — |
| Drain Valve | Carbon steel | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Pressure difference, Time, Manual | — | — |
