Candle-Type Filtration System
Basic Information
Model
JX-ZS-3
Unit
set
Category
Candle-Type Filtration System
Delivery Time
30 Days
Package Size
1000x900x1600 mm
Package Weight
120 KG

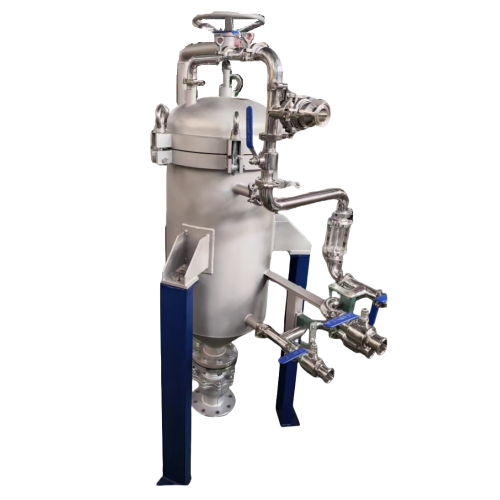

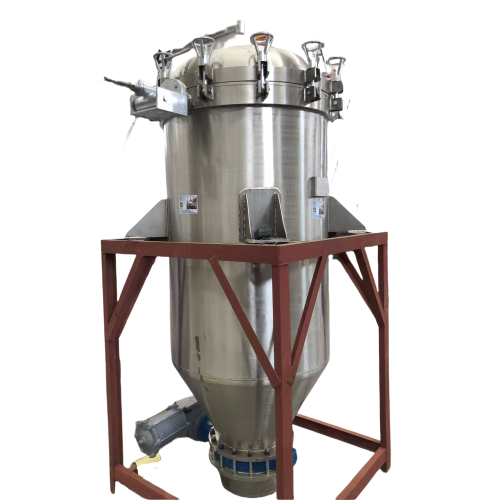

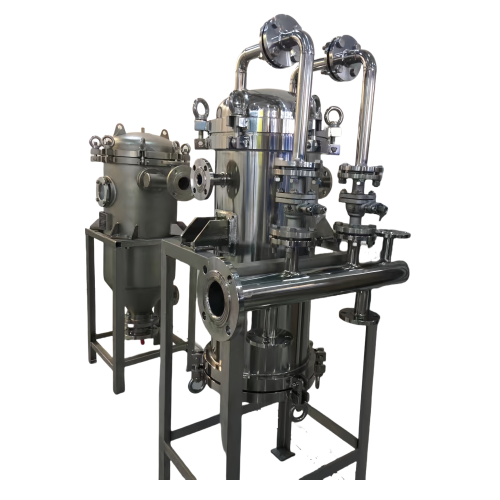

Product Images
Technical Specifications
Candle-Type Cake Layer Filter Housing
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Housing Diameter | 300 | mm | — |
| Housing Material | 304 Stainless Steel + F40 Lining | — | — |
| Number of Filter Elements | 3 | — | — |
| Total Heigh | 1500 | MM | — |
Candle Filter Element Support Frame
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Outer Diameter | 89 | mm | — |
| Material | PPH | — | — |
| Length | 500 | mm | — |
| Quantity | 3 | — | — |
Candle Filter Sock (Filter Cloth Sleeve)
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Outer Diameter | 90 | mm | — |
| Length | 280 | mm | — |
| Material | PPS | — | — |
| Filtration Accuracy | 3 | um | (Replaceable) |
| Quantity | 3 | — | — |
Pneumatic Diaphragm Pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet/Outlet Diameter | 1 | — | — |
| Housing Materia | PVDF | — | — |
| Diaphragm | PTFE (Teflon) | — | — |
Valve Check Valve
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Valve | DN25 Pneumatic Ball Valve | — | 8 pcs |
| Valve | DN125 Manual Ball Valve | — | 8 pcs |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Sight Glass | DN25 PTFE-Lined | — | — |
| Diaphragm Pressure Gauge | DN250 PTFE-Lined | — | — |
| Pipeline Connection | DN25 PTFE-Lined | — | — |
| Air Supply Connection Box | PPH Connections Between Pipelines | — | — |
| Candle Filter Element Support Frame | 1 | — | — |
