450(10)-Plate Press Filter
Basic Information
Model
JX-ZGB10/450
Unit
set
Category
Plate-And-Frame Filter Press
Delivery Time
30 Days
Package Size
3260x1460x1100 mm
Package Weight
1800 KG

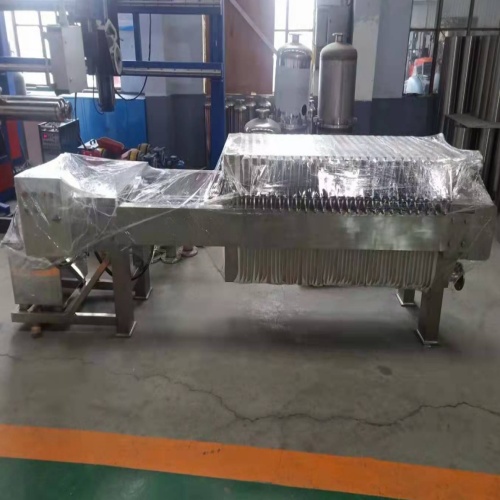

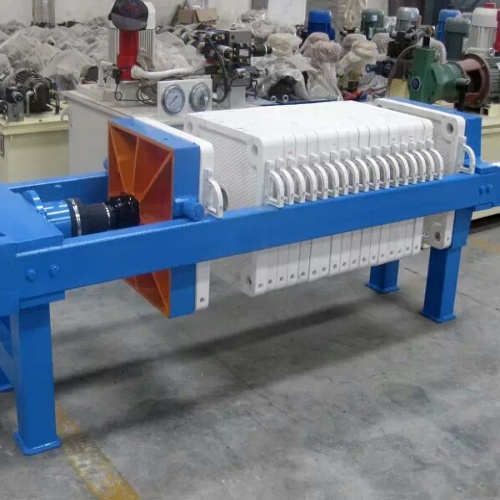

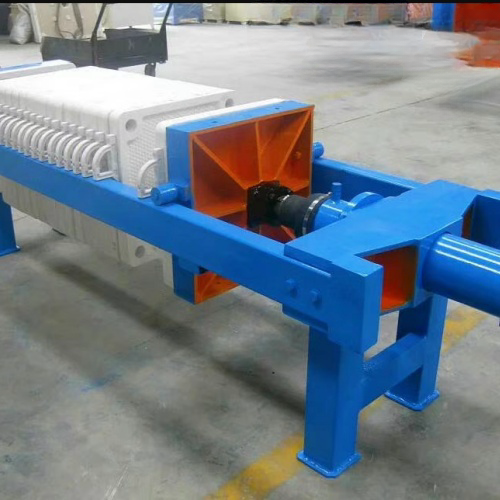

Product Images
Technical Specifications
Main Machine
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Plate Size | 450*450 | mm | — |
| Filter Plate Qty | 24 | block | — |
| Flter Cloth Qty | 1 | — | Brand: famous Chinese brand |
| Filter Chamber Qty | 24 | — | — |
| Filter Plate Thickness | 60 | mm | — |
| Filtration Area | 10 | m² | — |
| Filter Chamber Volume | 151 | L | — |
| Overall Dimension | 2700*700*900 | mm | — |
Basic Structure
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feed Type | Feed from the middle. | — | — |
| Loosen Way | Automatic | — | — |
| Filter Pressure | ≤0.6mpa | — | — |
| Handle | Material: PP | — | — |
| Main Frame | Carbon steel | — | — |
| Main Girder | Carbon steel | — | — |
| Press Type | Hydraulic pressure, automatic pressure maintenance | — | — |
| Filter Plate Material | Carbon steel lining | — | — |
| Surface Treatment | Sandblasting | — | — |
| Pressure Protection | Pressure reliever, process pressure: <25MPA/return pressure: <10MPA | — | 18-20mpa |
Instrument Control Hydraulic
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Hydro-cylinder | 27SiMn seamless welding Piston rod material: 45#steel with carbon steel chroming Equipped with telescopic protective sleeve | — | — |
| Cylinder Sealing | Polyurethane + copper tetrafluoride | — | — |
| Hydraulic Tubing | High voltage: 36MPA Low voltage: 20MPA No explosion/safety guarantee | — | — |
| Hydraulic Power Unit | Power supply: 2.2KW Hydraulic valves and pump: famous Chinese brand Hydraulic oil tank and valve assembly are polished, pickled, phosphate and plastic sprayed | — | — |
| Main Motor | 2.2KW/380V/50Hz, three-phase | KW | — |
| Control Cabinet | Electric cabinet: split wall mounted type, with plastic spraying Main engine: automatic controlled, installed on the side of oil cylinder | — | — |
| Instrument | 0-40MPA electro connecting pressure gauge | — | — |
Operation Environmen
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Working Temperature | <70 | ℃ | — |
| Service Requirement | Horizontal foundation/rain shading, feed end fixed, hydraulic end sliding | — | — |
