300-SS304-Screw Conveyor
Basic Information
Model
JX-SC-300-304
Unit
set
Category
Screw Conveyor
Delivery Time
30 Days
Package Size
4750x1400x1200 mm
Package Weight
550 KG

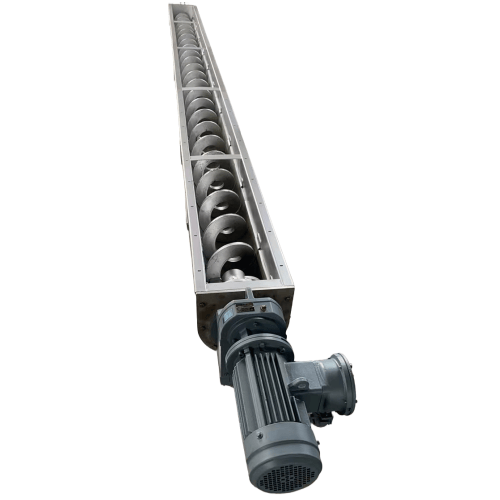

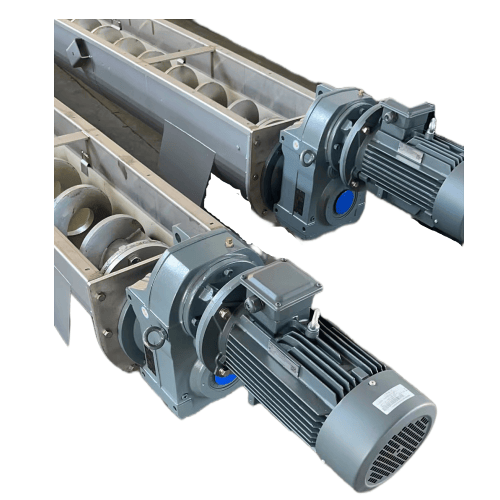

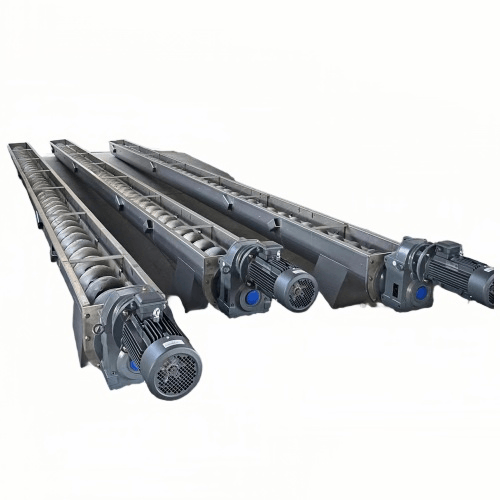

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-SC-300 | — | — |
| Material | SS304 | — | — |
| Processing Capacity | ~3.5 | m³/h | — |
| Screw Diameter | 260 | mm | — |
| Pitch | 260 | — | — |
| Trough Width | 300 | — | — |
Power Supply
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Power | 2.2 | — | — |
| Voltage | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Rotational Speed | 30 | r/min | — |
Others
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Angle | 35°/Customizable | — | — |
| Equipment Weight | 945 | — | — |
| Equipment Size | ~4650*1300*1110 | — | — |
| Warranty Period | One-year warranty (excluding human factors and consumables) | — | — |
