201 Sludge Dewatering Press
Basic Information
Model
JX-DL-201
Unit
set
Category
Sludge Dewatering Press
Delivery Time
30 Days
Package Size
2314x985x1330 mm
Package Weight
640 KG

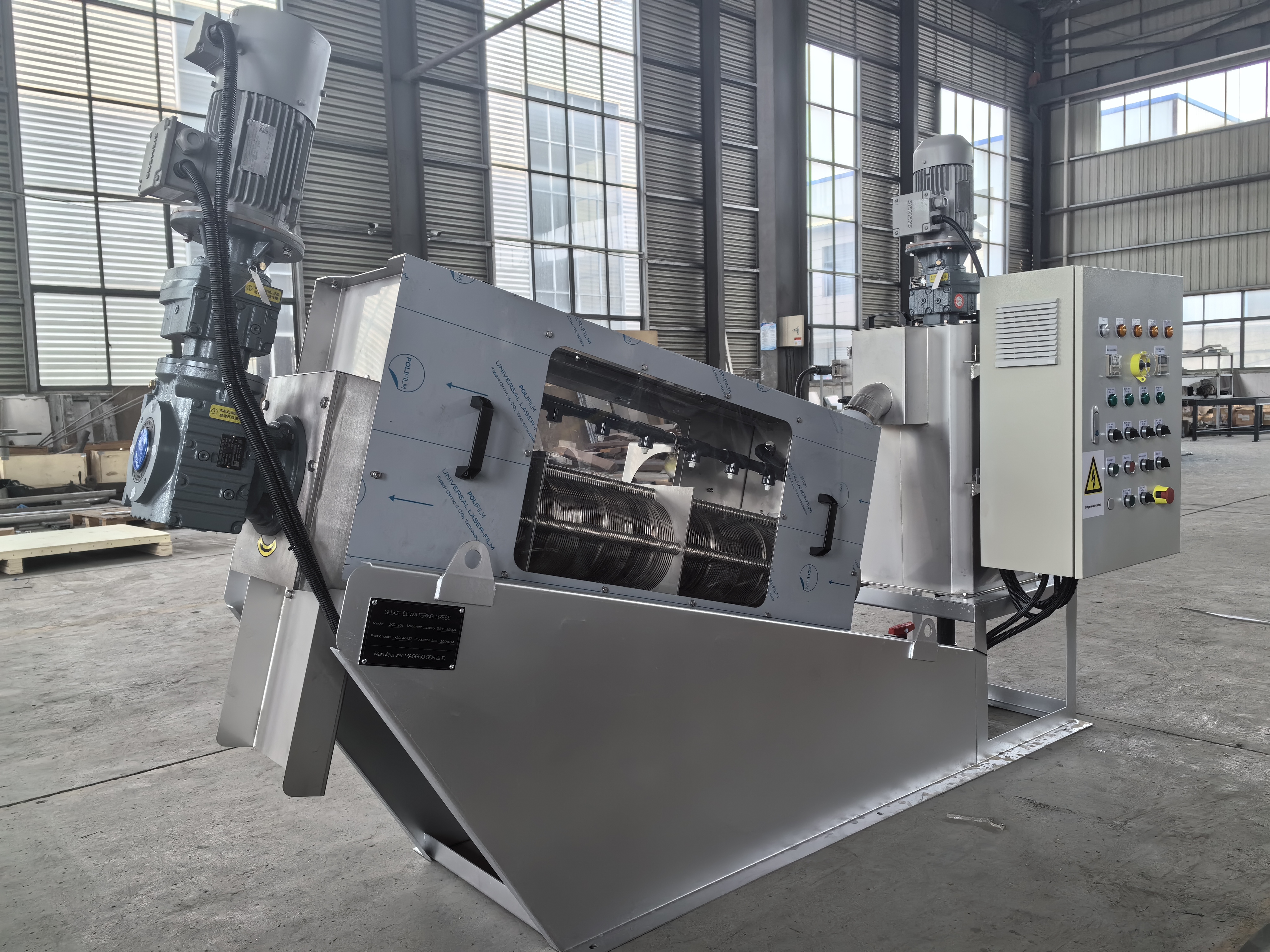

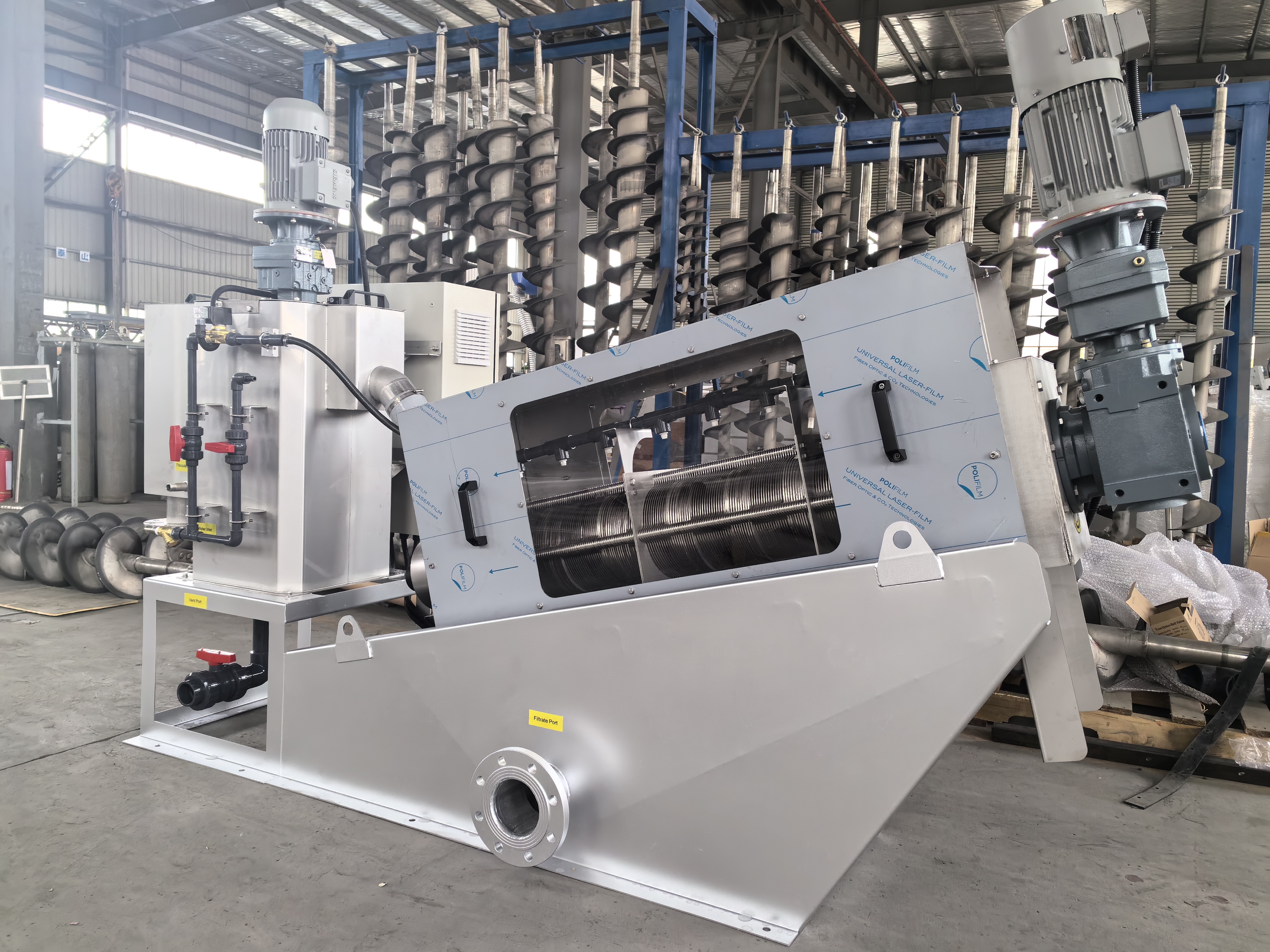

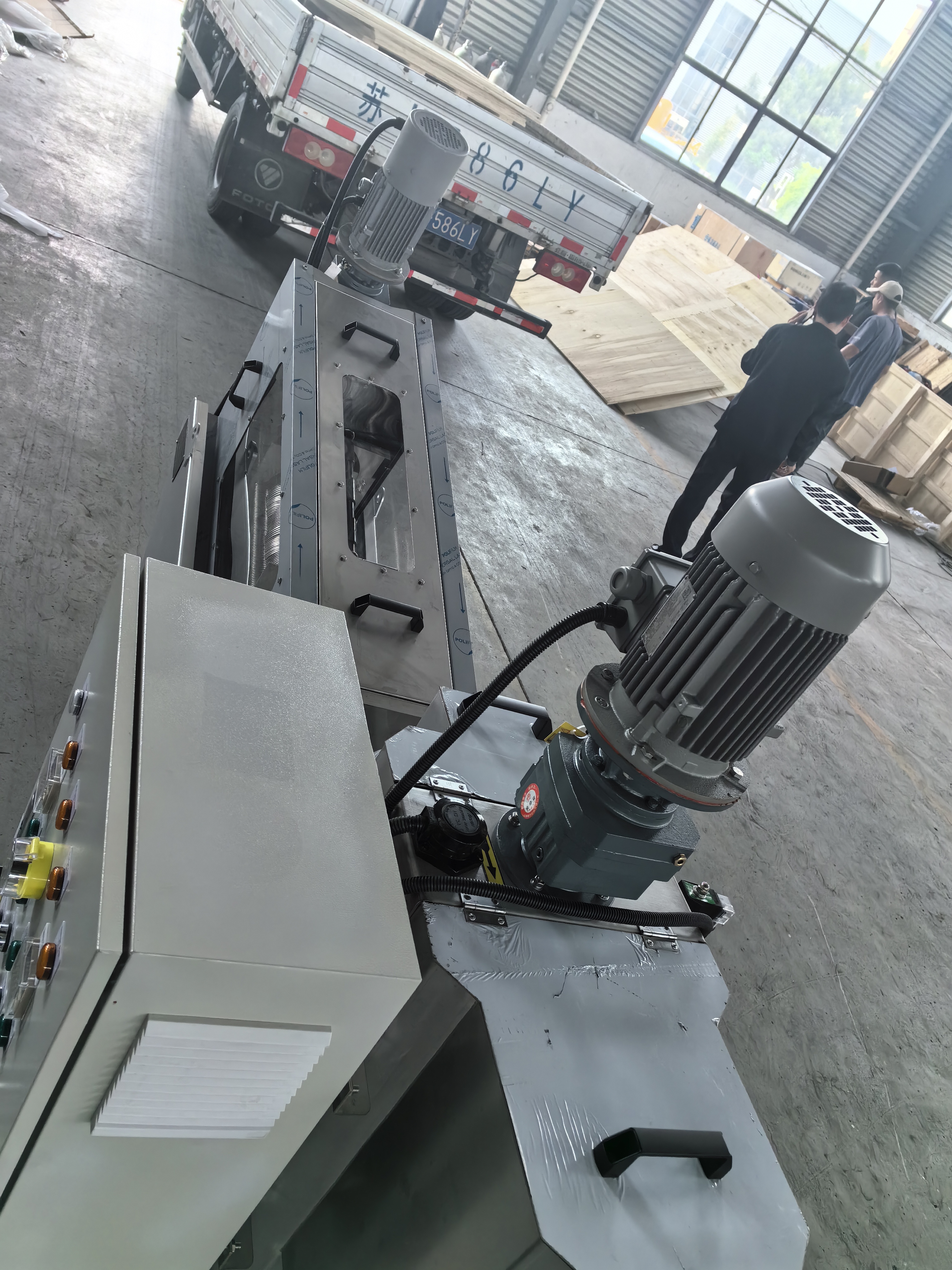

Product Images
Technical Specifications
Main
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Totally dry mud treatment capacity | 15-20 | kg/h | — |
| Equipment size | L2510*W900*H1545 | mm | — |
| Equipment weight | 420 | kg | — |
| Total power | 1.1 | kw | — |
Main body
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Dia.*Length | DN200*1660 | mm | — |
| Qty | 1 | unit | — |
| Material | SS304 | — | — |
| Supporting plate | Material: SS304 | — | — |
| Control method | Each screw can be open or stop independently | — | — |
| Cover type | Grab handle cover Material: SS304 | — | — |
Screw axis
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Dia.*Length | φ200*1660 | mm | — |
| Qty | 1 | pc | — |
| Material | SS304 | — | — |
| Hardness | 1100 | HV | — |
Water receiving tank
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Size | 1160*510*320 | mm | — |
| Material | SS304 | — | — |
| Filtrate outlet | 4" flange(ANSI B16.5 CL150) | — | — |
Flocculation mixing tank
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Size | L380*W380*H700 | mm | — |
| Qty | 1 | set | — |
| Material | SS304 | — | — |
| Volume | 100 | L | — |
| Mixer | Qty:1 sets, material :SS304 | — | — |
| Sewage inlet | Female thread(NPT2") | — | — |
| Overflow port | 3" flange(ANSI B16.5 CL150) | — | — |
| Dosing port | Male thread(NPT1") | — | — |
| Vent | Female thread(NPT1½") | — | — |
Support frame
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Size | 2240*850*740 | mm | — |
| Qty | 1 | set | — |
| Material | SS304 | — | — |
Driving motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | 0.55 | kw | — |
| Protection class | IP55 | — | — |
| Insulation class | F | — | — |
| Qty | 1 | set | — |
| Rotary speed | 2.28-5.7 | r/min | — |
| Reduction ratio | 246 | — | — |
| Brand | Siemens-Innomotics | — | — |
Mixing motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | 0.37 | kw | — |
| Protection class | IP55 | — | — |
| Protection class | F | — | — |
| Qty | 1 | set | — |
| Rotary speed | 25 | r/min | — |
| Reduction ratio | 55.87 | — | — |
| Brand | Chinese famous brand | — | — |
Cleaning device
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Type | Fan-shaped water column | — | — |
| Pressure | 0.2 | Mpa | — |
| Cleaning water inlet | Female thread(NPT1½") | — | — |
| Spray nozzle | Material: UPVC, Qty:8pcs | — | — |
| Spray pipe | Material: UPVC, Size: NPT½" | — | — |
Electron magnetic valve
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Pipe diameter | NPT½" | — | — |
| Qty | 1 | set | — |
| Material | SS304 or UPVC | — | — |
| Protection class | IP65 | — | — |
| Brand | CHISIN | — | — |
Control cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS304 | — | — |
| Brand of frequency converter | Schneider | — | — |
| Electric component | Schneider or Siemens-Innomotics | — | — |
Liquid-level switch
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Type | HS-3A | — | — |
| Material | Engineering plastics | — | — |
| Size | φ60 | — | — |
| Brand | OMRON | — | — |
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | — | — | |
| Totally dry mud treatment capacity | kg/h | — | |
| Material | — | — | |
| Dia.*Length | mm | — | |
| Qty | — | — | |
| Control Method | — | — | |
| Dewatering Type | — | — | |
| Equipment weight | kg | — | |
| Equipment size | mm | — |
Screw Axis
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | — | — | |
| Dia.*Length | mm | — | |
| Qty | — | — | |
| Hardness | HV | — |
Water Receiving Tank
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Size | mm | — | |
| Material | — | — | |
| Filtrate Outlet | — | — |
Flocculation Mixing Tank
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Size | mm | — | |
| Qty | — | — | |
| Material | — | — | |
| Volume | m3 | — | |
| Mixer | — | — | |
| Sewage Inlet | — | — | |
| Overflow Port | — | — | |
| Dosing Port | — | — | |
| Vent | — | — |
Support Frame
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Size | mm | — | |
| Qty | — | — | |
| Material | — | — |
Driving Motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | KW | — | |
| Protection Class | — | — | |
| Insulation Class | — | — | |
| Qty | — | — | |
| Rotary Speed | r/min | — | |
| Reduction Ratio | — | — | |
| Brand | — | — |
Mixing Motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | KW | — | |
| Protection Class | — | — | |
| Insulation Class | — | — | |
| Qty | — | — | |
| Rotary speed | r/min | — | |
| Reduction Ratio | — | — | |
| Brand | — | — |
Cleaning Device
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Type | — | — | |
| Pressure | Mpa | — | |
| Cleaning Water Inlet | — | — | |
| Spray Nozzle | — | — | |
| Spray Pipe | — | — |
Electron Magnetic Valve
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Pipe Diameter | — | — | |
| Qty | — | — | |
| Material | — | — | |
| Protection Class | — | — | |
| Brand | — | — |
Control Cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | — | — | |
| Brand | — | — |
Liquid-Level Switch
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Type | — | — | |
| Material | — | — | |
| Size | mm | — | |
| Brand | — | — |
